FRONT UPPER SUSPENSION ARM INSTALLATION

CAUTION / NOTICE / HINT

Tech Tips


  • Use the same procedure for the RH side and LH side.

  • The procedure listed below is for the LH side.

PROCEDURE


  1. INSTALL FRONT UPPER SUSPENSION ARM ASSEMBLY

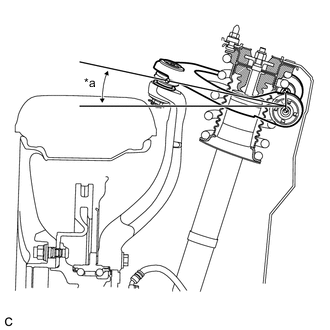

    1. A0020V3C03
      *a 10.2°

      Temporarily install the front upper suspension arm assembly to the body with the 2 bolts.

      Tech Tips

      When installing the front upper suspension arm assembly, temporarily tighten the bolts at the position shown in the illustration.

    2. Fully tighten the 2 bolts.

      Torque:
      49 N*m  { 500 kgf*cm, 36 ft.*lbf }

  2. TEMPORARILY TIGHTEN FRONT SHOCK ABSORBER WITH COIL SPRING

    Click here
