ABSORBER CONTROL ACTUATOR(for Rear Side) INSTALLATION

CAUTION / NOTICE / HINT

PROCEDURE


  1. INSTALL ABSORBER CONTROL ACTUATOR

    Tech Tips


    • Use the same procedure for the RH side and LH side.

    • The procedure listed below is for the LH side.


    1. A0021KTC07
      *a 40°
      *b Control Rod

      Check that the control rod of the rear shock absorber assembly is in the position shown in the illustration.

      Note

      If the control rod is not in the position shown in the illustration, turn the control rod to adjust the position before installing the absorber control actuator.

    2. A00210NC02
      *a Absorber Control Actuator Output Shaft
      *b Control Rod

      Install the absorber control actuator to the rear actuator support bracket.

      Note

      Make sure to check that the absorber control actuator output shaft and control rod are securely connected.

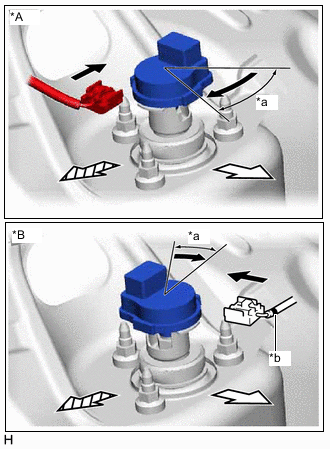

    3. A0022GLC02
      *A w/o Identification Tape
      *B w/ Identification Tape
      *a 40°
      *b Identification Tape (Pink)
      B003YHT Inside of the vehicle
      B003XOB Rear of the vehicle

      Turn the absorber control actuator clockwise 40° until a click is felt.

      Note


      • Depending on whether identification tape is attached to the wire harness of the absorber control actuator, the direction of the absorber control actuator differs.

      • Before turning the absorber control actuator, make sure to check that the absorber control actuator output shaft and control rod are securely connected.

      • Do not turn the absorber control actuator more than 40°.

      • Do not drop the absorber control actuator. If it is dropped, replace it with a new one.

    4. Connect the connector.

    5. Return the luggage compartment trim cover to its original position.

  2. INSTALL LUGGAGE COMPARTMENT TRIM COVER LH (for LH Side)

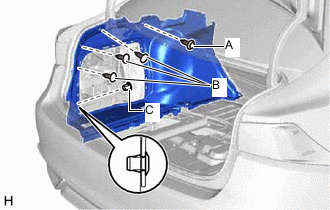

    1. A0022XEN02

      Install the luggage compartment trim cover LH with the clip (A) and 3 clips (B).

    2. Install a new clip (C).

    3. Install the 2 rope hook assemblies with the 2 bolts.

    4. Engage the 4 claws to close the 2 covers.

  3. INSTALL LUGGAGE COMPARTMENT TRIM COVER RH (for RH Side)

    Click here

  4. INSTALL REAR LUGGAGE COMPARTMENT TRIM COVER

    Click here

  5. INSTALL FRONT LUGGAGE COMPARTMENT TRIM COVER (for Fixed Seat Type)

    Click here

  6. INSTALL FRONT LUGGAGE COMPARTMENT TRIM COVER (for Fold Down Seat Type)

    Click here

  7. INSTALL LUGGAGE COMPARTMENT TRIM BOX

    Click here

  8. INSTALL LUGGAGE COMPARTMENT FLOOR MAT

    Click here

  9. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

    Note

    When disconnecting the cable from the negative (-) auxiliary battery terminal, some systems need to be initialized after the cable is reconnected.

    Click here

  10. INSTALL BATTERY SERVICE HOLE COVER LH

    Click here
