ABSORBER CONTROL ACTUATOR(for Rear Side) REMOVAL

PROCEDURE


  1. PRECAUTION

    Note

    After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

    Click here

  2. REMOVE BATTERY SERVICE HOLE COVER LH

    Click here

  3. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

    Note

    When disconnecting the cable from the negative (-) auxiliary battery terminal, some systems need to be initialized after the cable is reconnected.

    Click here

  4. REMOVE LUGGAGE COMPARTMENT FLOOR MAT

    Click here

  5. REMOVE LUGGAGE COMPARTMENT TRIM BOX

    Click here

  6. REMOVE FRONT LUGGAGE COMPARTMENT TRIM COVER (for Fixed Seat Type)

    Click here

  7. REMOVE FRONT LUGGAGE COMPARTMENT TRIM COVER (for Fold Down Seat Type)

    Click here

  8. REMOVE REAR LUGGAGE COMPARTMENT TRIM COVER

    Click here

  9. SEPARATE LUGGAGE COMPARTMENT TRIM COVER LH (for LH Side)

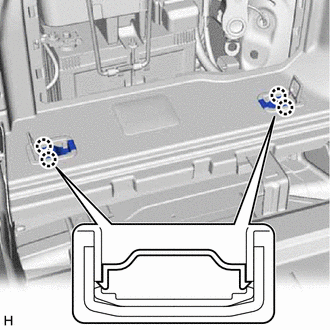

    1. A00209X

      Disengage the 4 claws and open the 2 covers.

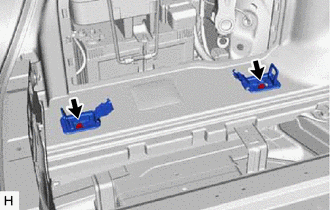

    2. A00212J

      Remove the 2 bolts and 2 rope hook assemblies.

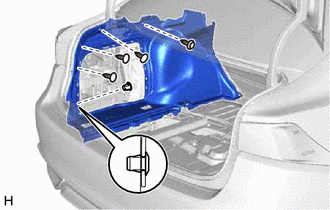

    3. A0022XE

      Remove the 5 clips.

    4. Separate the luggage compartment trim cover LH from the body.

  10. SEPARATE LUGGAGE COMPARTMENT TRIM COVER RH (for RH Side)

    Click here

  11. REMOVE ABSORBER CONTROL ACTUATOR

    Tech Tips


    • Use the same procedure for the RH side and LH side.

    • The procedure listed below is for the LH side.


    1. Turn back the luggage compartment trim cover until the absorber control actuator can be seen.

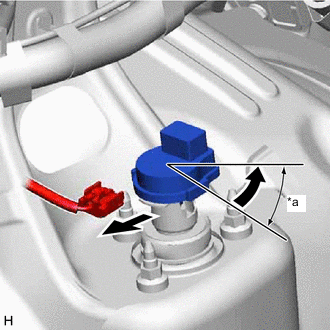

    2. A00219WC02
      *a 40°

      Disconnect the connector.

    3. Turn the absorber control actuator counterclockwise 40° to remove it from the rear actuator support bracket.

      Note


      • Do not turn the absorber control actuator more than 40°.

      • Do not drop the absorber control actuator. If it is dropped, replace it with a new one.
