ABSORBER CONTROL ACTUATOR(for Rear Side) INSPECTION

PROCEDURE

1. INSPECT ABSORBER CONTROL ACTUATOR



   1.

      *A	for LH
      *B	for RH

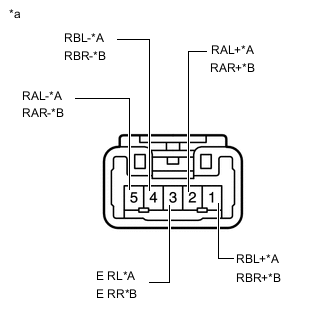

      *a	Component without harness connected (Absorber Control Actuator)

      Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      for LH Tester Connection Condition Specified Condition 1 (RBL+) - 3 (E RL) Always 12.0 to 12.8 Ω 2 (RAL+) - 3 (E RL) Always 12.0 to 12.8 Ω 4 (RBL-) - 3 (E RL) Always 12.0 to 12.8 Ω 5 (RAL-) - 3 (E RL) Always 12.0 to 12.8 Ω
      for RH Tester Connection Condition Specified Condition 1 (RBR+) - 3 (E RR) Always 12.0 to 12.8 Ω 2 (RAR+) - 3 (E RR) Always 12.0 to 12.8 Ω 4 (RBR-) - 3 (E RR) Always 12.0 to 12.8 Ω 5 (RAR-) - 3 (E RR) Always 12.0 to 12.8 Ω

   2. Check absorber control actuator operation.
