ABSORBER CONTROL ACTUATOR(for Rear Side) COMPONENTS
ILLUSTRATION
| *1 | BATTERY SERVICE HOLE COVER LH | - | - |

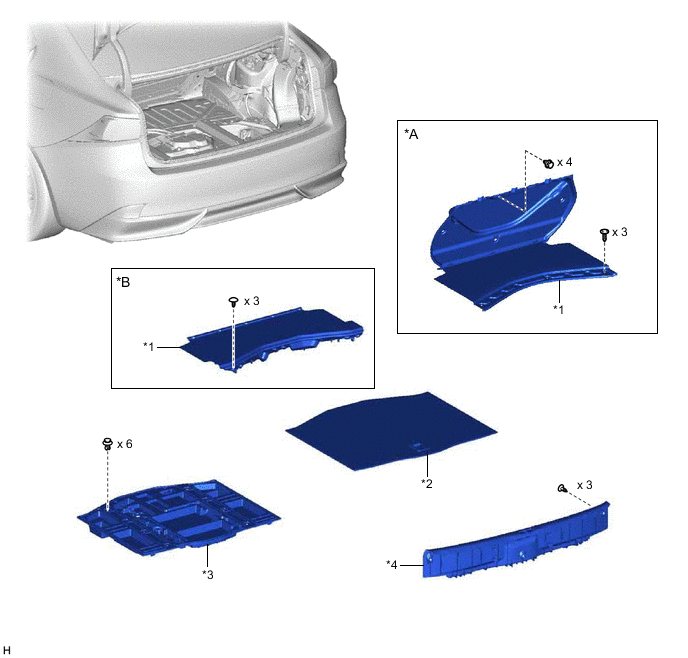

ILLUSTRATION
| *A | for Fixed Seat Type | *B | for Fold Down Seat Type |
| *1 | FRONT LUGGAGE COMPARTMENT TRIM COVER | *2 | LUGGAGE COMPARTMENT FLOOR MAT |
| *3 | LUGGAGE COMPARTMENT TRIM BOX | *4 | REAR LUGGAGE COMPARTMENT TRIM COVER |

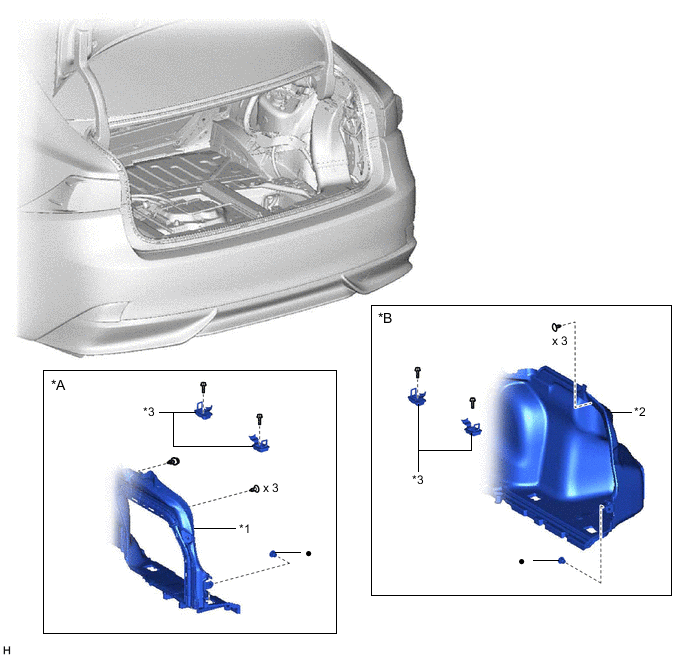

ILLUSTRATION
| *A | for LH Side | *B | for RH Side |
| *1 | LUGGAGE COMPARTMENT TRIM COVER LH | *2 | LUGGAGE COMPARTMENT TRIM COVER RH |
| *3 | ROPE HOOK ASSEMBLY | - | - |
| ● | Non-reusable part | - | - |

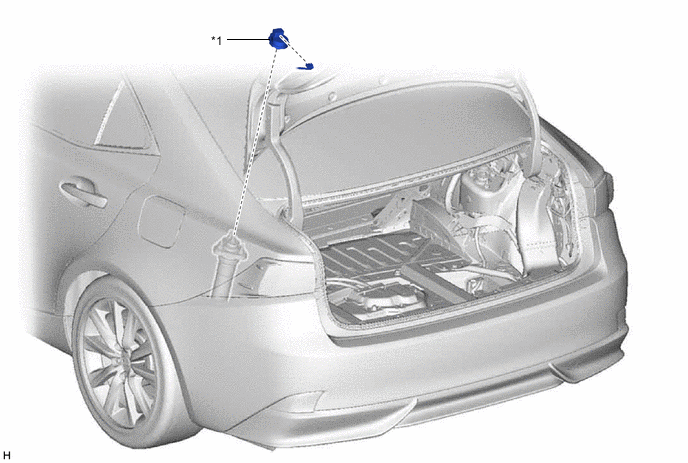

ILLUSTRATION
| *1 | ABSORBER CONTROL ACTUATOR | - |
