ABSORBER CONTROL ACTUATOR(for Front Side) REMOVAL

CAUTION / NOTICE / HINT

Tech Tips


  • Use the same procedure for the RH side and LH side.

  • The procedure listed below is for the LH side.

PROCEDURE


  1. PRECAUTION

    Note

    After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

    Click here

  2. REMOVE BATTERY SERVICE HOLE COVER LH

    Click here

  3. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

    Note

    When disconnecting the cable from the negative (-) auxiliary battery terminal, some systems need to be initialized after the cable is reconnected.

    Click here

  4. REMOVE UPPER SHOCK ABSORBER CAP

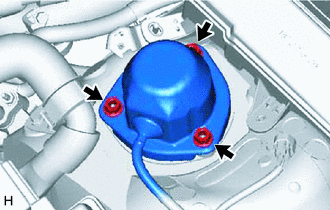

    1. A002307

      Remove the 3 nuts and separate the upper shock absorber cap.

    2. Disconnect the connector.

    3. Separate the wire harness and remove the upper shock absorber cap.

  5. REMOVE ABSORBER CONTROL ACTUATOR

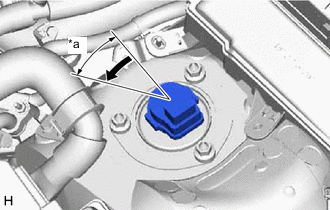

    1. A0022UQC02
      *a 40°

      Turn the absorber control actuator counterclockwise 40° to remove it from the front actuator support bracket.

      Note


      • Do not turn the absorber control actuator more than 40°.

      • Do not drop the absorber control actuator. If it is dropped, replace it with a new one.
