FRONT LOWER BALL JOINT REMOVAL

CAUTION / NOTICE / HINT

Tech Tips


  • Use the same procedure for the RH side and LH side.

  • The procedure listed below is for the LH side.

PROCEDURE


  1. REMOVE FRONT LOWER SUSPENSION ARM ASSEMBLY

    Click here

  2. REMOVE FRONT LOWER BALL JOINT ASSEMBLY


    1. Secure the front lower suspension arm assembly in a vise using aluminum plates.

      Note

      When using a vise, do not overtighten it.

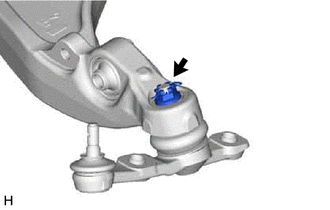

    2. A0022Z4

      Remove the clip and nut.

    3. A0022NIN02

      Using SST, remove the front lower ball joint assembly from the front lower suspension arm assembly as shown in the illustration.

      SST
      09950-40011   ( 09951-04010, 09952-04010, 09953-04020, 09954-04010, 09955-04051, 09957-04010, 09958-04011 )

      Note


      • Do not damage the front lower ball joint dust cover.

      • Do not damage the front lower suspension arm assembly.
