ADAPTIVE VARIABLE SUSPENSION SYSTEM TERMINALS OF ECU

Click here
Click here
Click here

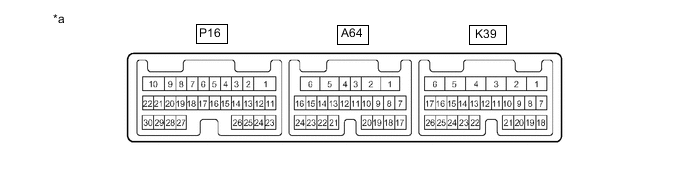

  1. A01D0CTC03
    *a

    Component with harness connected

    (Absorber Control ECU)

    		 - -

    CHECK ABSORBER CONTROL ECU

    Tip:

    • Inspect the connectors from the back side while the connectors are connected.

    • Check the operation of a particular valve by listening for operating sounds or by using the Data List.

    Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
    A64-9 (SGB1) - Body ground GR Front acceleration sensor LH power source Power switch on (IG) 4.75 to 5.25 V
    A64-10 (SGG1) - Body ground LG Front acceleration sensor LH ground Always Below 1 Ω
    A64-18 (SGS1) - Body ground L Front acceleration sensor LH Power switch on (IG) 0 to 5 V
    K39-3 (B) - Body ground B IG power supply Power switch on (IG) 11 to 14 V
    K39-5 (GND) - Body ground W-B Ground Always Below 1 Ω
    K39-7 (CANH) - K39-8 (CANL) SB - B CAN communication line Power switch off 54 to 69 Ω
    K39-16 (SGG2) - Body ground W Rear acceleration sensor ground Always Below 1 Ω
    K39-17 (SGB2) - Body ground P Rear acceleration sensor power source Power switch on (IG) 4.75 to 5.25 V
    K39-26 (SGS2) - Body ground SB Rear acceleration sensor Power switch on (IG) 0 to 5 V
