ADAPTIVE VARIABLE SUSPENSION SYSTEM OPERATION CHECK


  1. CHECK ABSORBER CONTROL ACTUATOR OPERATION


    1. A00233MC01

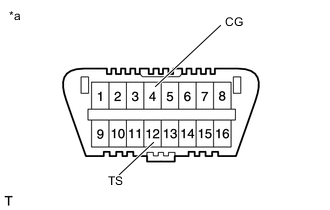

      *a Front view of DLC3

      Using SST, connect terminals 12 (TS) and 4 (CG) of the DLC3.

      SST
      09843-18040

    2. Turn the power switch on (IG).

    3. A002182C01

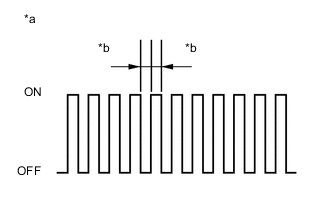

      *a Blinking Pattern in Test Mode
      *b 0.125 Seconds

      Check that the "SPORT S+" indicator on the multi-information display is blinking in the Test Mode blinking pattern.

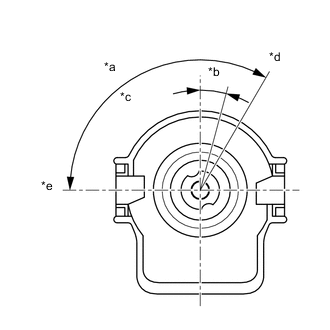

    4. A0021C9C02
      *a Shift Range
      *b 15°
      *c 120°
      *d SOFT
      *e HARD

      Check absorber control actuator operation.

      Starting from the SOFT position, depress the brake pedal. Using the GTS, check that the absorber control actuator position increases by 2 steps each time the brake pedal is depressed (1 (SOFT) → 3 → 5 → 7 → 9 → 11 → 15 → 17 (HARD)). At this time, bounce the vehicle and check that the shock absorber is becoming harder.

      Tech Tips


      • Every time the brake pedal is depressed, the absorber control actuator rotates 15° towards HARD, up to a maximum angle of 120°.

      • If the absorber control actuator does not operate, inspect the absorber control actuator circuit and absorber control actuator installation condition.

      Trouble Area See Procedure
      Absorber control actuator circuit

      Click here

      Front absorber control actuator installation condition

      Click here

      Rear absorber control actuator installation condition

      Click here

    5. Turn the power switch off.

    6. Disconnect SST from terminals 12 (TS) and 4 (CG) of the DLC3.

    7. Turn the power switch on (IG).

      Tech Tips

      If the power switch remains on (IG) after SST is removed from the DLC3, the vehicle will remain in the previously initialized Test Mode.
