WATER PUMP REMOVAL

Click here

PROCEDURE

1. Click here

   REMOVE CENTER NO. 4 ENGINE UNDER COVER

   Click here

2. Click here

   DRAIN ENGINE COOLANT (for Engine)

   Click here

3. Click here

   REMOVE FAN & GENERATOR V BELT

   Click here

4. Click here

   REMOVE RADIATOR HOSE SUB-ASSEMBLY

   Click here

5. Click here

   REMOVE ENGINE WATER PUMP ASSEMBLY



   1.

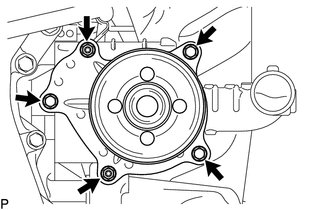

      Remove the 3 bolts, 2 nuts and engine water pump assembly.

   2. Remove the gasket from the engine water pump assembly.
