WATER PUMP COMPONENTS

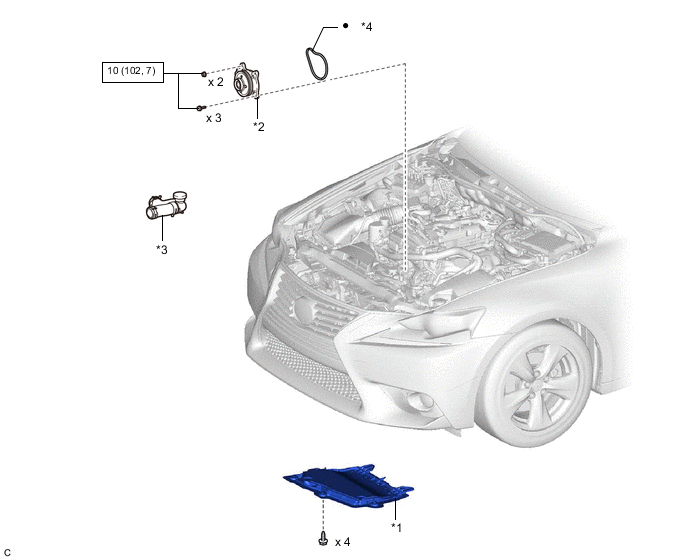

ILLUSTRATION
| *1 | CENTER NO. 4 ENGINE UNDER COVER | *2 | ENGINE WATER PUMP ASSEMBLY |
| *3 | RADIATOR HOSE SUB-ASSEMBLY | *4 | GASKET |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
ILLUSTRATION
| *1 | CENTER NO. 4 ENGINE UNDER COVER | *2 | ENGINE WATER PUMP ASSEMBLY |
| *3 | RADIATOR HOSE SUB-ASSEMBLY | *4 | GASKET |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
