FUEL PUMP ECU REMOVAL

PROCEDURE

1. REMOVE AUXILIARY BATTERY

   Click here

2. REMOVE FUEL PUMP CONTROL ECU ASSEMBLY




   1.

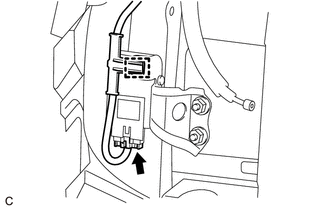

      Disconnect the fuel pump control ECU assembly connector.

   2. Disengage the clamp to disconnect the wire harness from the fuel pump control ECU assembly.

   3.

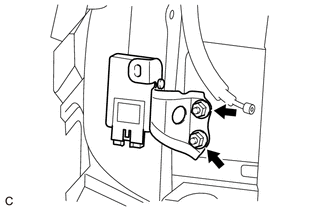

      Remove the 2 nuts and fuel pump control ECU assembly from the vehicle body.

      Note

      Do not reuse the fuel pump control ECU assembly if it has been dropped or subjected to a severe impact.
