BATTERY COOLING DUCT(w/ Filter) REMOVAL

PROCEDURE


  1. REMOVE LUGGAGE COMPARTMENT FLOOR MAT

    Click here

  2. REMOVE LUGGAGE COMPARTMENT TRIM BOX

    Click here

  3. REMOVE FRONT LUGGAGE COMPARTMENT TRIM COVER (for Fixed Seat Type)

    Click here

  4. REMOVE FRONT LUGGAGE COMPARTMENT TRIM COVER (for Fold Down Seat Type)

    Click here

  5. REMOVE REAR LUGGAGE COMPARTMENT TRIM COVER

    Click here

  6. REMOVE REAR SEAT ASSEMBLY (for Fixed Seat Type)

    Click here

  7. REMOVE REAR SEAT ASSEMBLY (for Fold Down Seat Type)

    Click here

  8. REMOVE REAR DOOR SCUFF PLATE RH

    Tech Tips

    Use the same procedure as for the LH side.

    Click here

  9. REMOVE REAR SEAT SIDE GARNISH RH

    Tech Tips

    Use the same procedure as for the LH side.

    Click here

  10. REMOVE REAR SEAT SUB FLOOR PANEL (for Fold Down Seat Type)

    Click here

  11. REMOVE NO. 1 ROOM PARTITION COVER (for Fold Down Seat Type)

    Tech Tips

    Use the same procedure as for the No. 2 room partition cover.

    Click here

  12. REMOVE LUGGAGE COMPARTMENT TRIM COVER RH

    Click here

  13. REMOVE NO. 1 HYBRID BATTERY INTAKE DUCT

    Click here

  14. REMOVE NO. 2 HYBRID BATTERY INTAKE DUCT

    Tech Tips

    If the message "Cooling performance of the hybrid battery is low Consult a dealer" is displayed on the multi-information display in the combination meter assembly, inspect the No. 2 hybrid battery intake duct after removing it.

    Click here

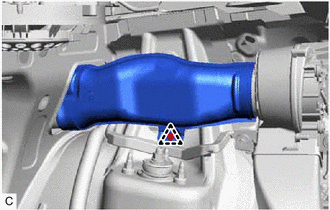

    1. A00225X

      Disengage the clip and remove the No. 2 hybrid battery intake duct.
