HYBRID CONTROL SYSTEM, Diagnostic DTC:P0A78-202

Click here
Click here
DTC Code DTC Name
P0A78-202 Drive Motor "A" Inverter Performance
Click here

DESCRIPTION

For a description of the inverter.

Click here

DTC No. Detection Item DTC Detection Condition Trouble Area MIL Warning Indicate
P0A78-202 Drive Motor "A" Inverter Performance

Malfunction (short circuit) in the motor inverter inside the inverter with converter assembly

Current flowing to any of the phases exceeds a certain level after a DTC (indicates a motor inverter malfunction: overheating, overcurrent or circuit malfunction) is stored and the motor inverter is shutdown

(1 trip detection logic)

  • Inverter with converter assembly

  • Hybrid vehicle transmission assembly

  • Motor cable

 Comes on

Master Warning Light:

Comes on
Click here

WIRING DIAGRAM

Refer to the wiring diagram for DTC P0AA6-526.

Click here

Click here

CAUTION / NOTICE / HINT

CAUTION:

  • Before inspecting the high-voltage system or disconnecting the low voltage connector of the inverter with converter assembly, take safety precautions such as wearing insulated gloves and removing the service plug grip to prevent electrical shocks. After removing the service plug grip, put it in your pocket to prevent other technicians from accidentally reconnecting it while you are working on the high-voltage system.

  • After removing the service plug grip, wait for at least 10 minutes before touching any of the high-voltage connectors or terminals. After waiting for 10 minutes, check the voltage at the terminals in the inspection point in the inverter with converter assembly. The voltage should be 0 V before beginning work.

    Click here

    Tip:

    Waiting for at least 10 minutes is required to discharge the high-voltage capacitor inside the inverter with converter assembly.

Note:

  • After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

    Click here

  • DTC P0A78-202 is stored after DTCs P0A1B-505, P0A40-506, P0A78-113, 284, 286 and/or 287 are stored. After troubleshooting and repairing the malfunction which caused DTC P0A78-202 to be stored, be sure to troubleshoot all the other DTCs.

  • Depending on the conditions in which the vehicle is being operated when a short circuit occurs in the inverter with converter assembly, the hybrid vehicle transmission assembly may be affected. As this DTC is stored if a short circuit occurs in the inverter with converter assembly, it is necessary to perform a road test to check the hybrid vehicle transmission assembly. If problems are found, replace the malfunctioning parts.

  • After completing the repair, including the repair of previously output DTCs, drive the vehicle at a speed of approximately 40 km/h (25 mph) for 1 minute and check that DTC P0A90-251 (Drive Motor "A" Performance) is not output. If DTC P0A90-251 (Drive Motor "A" Performance) is output, replace the hybrid vehicle transmission assembly.

Tip:

After the repair, clear the DTCs and perform the following procedure to check that DTCs are not output.


  1. With the vehicle engine stopped, the power switch on (READY) and the shift lever in P, depress the accelerator pedal to start the engine.

  2. Perform a road test according to the freeze frame data and item "Vehicle Spd" for approximately 10 minutes.

Click here

PROCEDURE


  1. Click here

    CHECK HYBRID VEHICLE TRANSMISSION ASSEMBLY (MG2)

    Result
    Proceed to
    OK
    NG
    CAUTION:

    Be sure to wear insulated gloves.


    1. Check that the service plug grip is not installed.

      Note:

      After removing the service plug grip, do not turn the power switch on (READY), unless instructed by the repair manual because this may cause a malfunction.

    2. B003XQMC01
      *A for LHD
      *B for RHD

      for Type A:


      1. Remove the inverter cover from the inverter with converter assembly.

    3. B003XRQC01
      *A for LHD
      *B for RHD

      for Type B:


      1. Remove the inverter cover from the inverter with converter assembly.

    4. B003YFOC01
      *A for LHD
      *B for RHD
      *1

      Motor Cable

      (Inverter with Converter Assembly Side)
      *2

      Generator Cable

      (Inverter with Converter Assembly Side)

      Disconnect the generator cable and motor cable from the inverter with converter assembly.

    5. B003XT1C01
      *A for LHD
      *B for RHD
      *1 Shield Ground
      *a

      Motor Cable

      (Inverter with Converter Assembly Side)

      Check motor (MG2) for an interphase short using a milliohmmeter.


      1. Using a milliohmmeter, measure the resistance according to the value(s) in the table below.

        Tip:

        If the motor (MG2) temperature is high, the resistance will vary greatly from the specification. Therefore, measure the resistance at least 8 hours after the vehicle is stopped.

        Standard Resistance
        Table 1. for LHD
        Tester Connection Condition Specified Condition
        m3-3 (W) - m3-1 (U) Power switch off 47.0 to 51.8 mΩ
        m3-2 (V) - m3-3 (W) Power switch off 47.3 to 52.1 mΩ
        m3-1 (U) - m3-2 (V) Power switch off 47.1 to 51.9 mΩ
        Table 2. for RHD
        Tester Connection Condition Specified Condition
        m1-1 (W) - m1-3 (U) Power switch off 47.0 to 51.8 mΩ
        m1-2 (V) - m1-1 (W) Power switch off 47.3 to 52.1 mΩ
        m1-3 (U) - m1-2 (V) Power switch off 47.1 to 51.9 mΩ
        Tip:

        To correct the variation of the measured resistance due to temperature, use the following formula to calculate the resistance at 20°C (68° F).

        R20 = Rt / {1 + 0.00393 X (T - 20)}

        The calculation is based on the following:

        R20: Resistance at 20°C (68° F) (mΩ)

        Rt: Measured resistance (mΩ)

        T: Temperature when the resistance is measured (°C)

    6. When checking for a short circuit between motor phases without using a milliohmmeter.

      Note:

      The motor generates current when wheels are rotated by hand. Before performing the inspection, wrap the motor cable terminals with insulation tape.

      Tip:

      A short circuit between the motor phases can be checked simply without using a milliohmmeter.


      1. Connect the cable to the negative (-) auxiliary battery terminal.

      2. Turn the power switch on (IG).

        Note:

        Turning the power switch on (IG) with the service plug grip removed causes other DTCs to be stored. Clear the DTCs after performing this inspection.

      3. Move the shift lever to N.

      4. Lift up the vehicle.

      5. Rotate the rear wheels in the same direction simultaneously by hand.

        Standard
        Left and right wheels rotate smoothly (No short circuit between phases)
        Tip:

        If a short circuit exists between the motor phases, the rear wheels do not rotate smoothly (some resistance is felt).

      6. Move the shift lever to P.

      7. Lower the vehicle.

      8. Turn the power switch off.

      9. Disconnect the cable from the negative (-) auxiliary battery terminal.

    7. Using a megohmmeter set to 500 V, measure the resistance according to the value(s) in the table below.

      Note:

      Be sure to set the megohmmeter to 500 V when performing this test. Using a setting higher than 500 V can result in damage to the component being inspected.

      Standard Resistance
      Table 3. for LHD
      Tester Connection Condition Specified Condition
      m3-3 (W) - Body ground and shield ground Power switch off 100 MΩ or higher
      m3-2 (V) - Body ground and shield ground Power switch off 100 MΩ or higher
      m3-1 (U) - Body ground and shield ground Power switch off 100 MΩ or higher
      Table 4. for RHD
      Tester Connection Condition Specified Condition
      m1-1 (W) - Body ground and shield ground Power switch off 100 MΩ or higher
      m1-2 (V) - Body ground and shield ground Power switch off 100 MΩ or higher
      m1-3 (U) - Body ground and shield ground Power switch off 100 MΩ or higher

    8. Measure the resistance according to the value(s) in the table below.

      Tip:

      Perform this procedure only when checking for a short circuit between motor phases without using a milliohmmeter.

      Standard Resistance
      Table 5. for LHD
      Tester Connection Condition Specified Condition
      m3-3(W) - m3-2(V) Power switch off Below 1 Ω
      m3-2(V) - m3-1(U) Power switch off Below 1 Ω
      Table 6. for RHD
      Tester Connection Condition Specified Condition
      m1-1(W) - m1-2(V) Power switch off Below 1 Ω
      m1-2(V) - m1-3(U) Power switch off Below 1 Ω

    9. Connect the generator cable and motor cable.

    10. Install the inverter cover.

      Result
      Proceed to
      OK
      NG

  2. Click here

    REPLACE INVERTER WITH CONVERTER ASSEMBLY

    Click here

    Result
    Proceed to
    NEXT

  3. Click here

    CHECK MOTOR CABLE

    Result
    Proceed to
    OK
    NG
    CAUTION:

    Be sure to wear insulated gloves.


    1. Check that the service plug grip is not installed.

      Note:

      After removing the service plug grip, do not turn the power switch on (READY), unless instructed by the repair manual because this may cause a malfunction.

    2. Remove the motor cable.

      Click here

    3. B003Y7WC02
      *A for LHD *B for RHD
      *1 Shield ground - -
      *a

      Motor Cable

      (Inverter with Converter Assembly Side)

      		 *b

      Motor Cable

      (Hybrid Vehicle Transmission Assembly Side)

      Using a megohmmeter set to 500 V, measure the resistance according to the value(s) in the table below.

      Note:

      Be sure to set the megohmmeter to 500 V when performing this test. Using a setting higher than 500 V can result in damage to the component being inspected.

      Standard Resistance
      Table 7. for LHD
      Tester Connection Condition Specified Condition
      m3-3 (W) - Body ground and shield ground Power switch off 100 MΩ or higher
      m3-2 (V) - Body ground and shield ground Power switch off 100 MΩ or higher
      m3-1 (U) - Body ground and shield ground Power switch off 100 MΩ or higher
      Table 8. for RHD
      Tester Connection Condition Specified Condition
      m1-1 (W) - Body ground and shield ground Power switch off 100 MΩ or higher
      m1-2 (V) - Body ground and shield ground Power switch off 100 MΩ or higher
      m1-3 (U) - Body ground and shield ground Power switch off 100 MΩ or higher
      Note:

      Wrap the terminal of the motor cable with insulating tape to prevent them from coming into contact with body ground.

    4. Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Table 9. for LHD
      Tester Connection Condition Specified Condition
      m3-3 (W) - m2-3 (U) Power switch off 100 MΩ or higher
      m3-2 (V) - m2-1 (W) Power switch off 100 MΩ or higher
      m3-1 (U) - m2-2 (V) Power switch off 100 MΩ or higher
      m3-3 (W) - m2-1 (W) Power switch off Below 1 Ω
      m3-2 (V) - m2-2 (V) Power switch off Below 1 Ω
      m3-1 (U) - m2-3 (U) Power switch off Below 1 Ω
      Table 10. for RHD
      Tester Connection Condition Specified Condition
      m1-1 (W) - m2-3 (U) Power switch off 100 MΩ or higher
      m1-2 (V) - m2-1 (W) Power switch off 100 MΩ or higher
      m1-3 (U) - m2-2 (V) Power switch off 100 MΩ or higher
      m1-1 (W) - m2-1 (W) Power switch off Below 1 Ω
      m1-2 (V) - m2-2 (V) Power switch off Below 1 Ω
      m1-3 (U) - m2-3 (U) Power switch off Below 1 Ω

    5. Install the motor cable.

      Result
      Proceed to
      OK
      NG

  4. Click here

    REPLACE HYBRID VEHICLE TRANSMISSION ASSEMBLY

    Click here

    Result
    Proceed to
    NEXT

  5. Click here

    REPLACE INVERTER WITH CONVERTER ASSEMBLY

    Click here

    Result
    Proceed to
    NEXT

  6. Click here

    CHECK HYBRID VEHICLE TRANSMISSION ASSEMBLY (MG2)

    CAUTION:

    Be sure to wear insulated gloves.


    1. Check that the service plug grip is not installed.

      Note:

      After removing the service plug grip, do not turn the power switch on (READY), unless instructed by the repair manual because this may cause a malfunction.

    2. Disconnect the motor cable from the hybrid vehicle transmission assembly.

      Click here

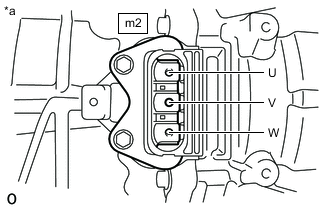

    3. A00230MC02
      *a

      Component without motor cable connected

      (Hybrid Vehicle Transmission Assembly)

      Check motor (MG2) for an interphase short using a milliohmmeter.


      1. Using a milliohmmeter, measure the resistance according to the value(s) in the table below.

        Tip:

        If the motor (MG2) temperature is high, the resistance will vary greatly from the specification. Therefore, measure the resistance at least 8 hours after the vehicle is stopped.

        Standard Resistance
        Tester Connection Condition Specified Condition
        m2-3 (U) - m2-1 (W) Power switch off 45.0 to 49.8 mΩ
        m2-2 (V) - m2-3 (U) Power switch off 45.2 to 50.0 mΩ
        m2-1 (W) - m2-2 (V) Power switch off 44.9 to 49.7 mΩ
        Tip:

        To correct the variation of the measured resistance due to temperature, use the following formula to calculate the resistance at 20°C (68° F).

        R20 = Rt / {1 + 0.00393 X (T - 20)}

        The calculation is based on the following:

        R20: Resistance at 20°C (68° F) (mΩ)

        Rt: Measured resistance (mΩ)

        T: Temperature when the resistance is measured (° C)

    4. Using a megohmmeter set to 500 V, measure the resistance according to the value(s) in the table below.

      Note:

      Be sure to set the megohmmeter to 500 V when performing this test. Using a setting higher than 500 V can result in damage to the component being inspected.

      Standard Resistance
      Tester Connection Condition Specified Condition
      m2-3 (U) - Body ground Power switch off 100 MΩ or higher
      m2-2 (V) - Body ground Power switch off 100 MΩ or higher
      m2-1 (W) - Body ground Power switch off 100 MΩ or higher

    5. Connect the motor cable.

      Result
      Proceed to
      OK
      NG

  7. Click here

    REPLACE MOTOR CABLE

    Click here

    Result
    Proceed to
    NEXT

  8. Click here

    REPLACE INVERTER WITH CONVERTER ASSEMBLY

    Click here

    Result
    Proceed to
    NEXT

  9. Click here

    REPLACE MOTOR CABLE

    Click here

    Result
    Proceed to
    NEXT

  10. Click here

    REPLACE HYBRID VEHICLE TRANSMISSION ASSEMBLY

    Click here

    Result
    Proceed to
    NEXT

  11. Click here

    REPLACE INVERTER WITH CONVERTER ASSEMBLY

    Click here

    Result
    Proceed to
    NEXT

  12. Click here

    CHECK DTC OUTPUT (HYBRID CONTROL)


    1. Check the other DTCs that were output together with DTC P0A78-202.


      1. Powertrain > Hybrid Control > Trouble Codes


      Result
      Relevant DTC
      P0A1B-505 Drive Motor "A" Control Module
      P0A40-506 Drive Motor "A" Position Sensor Circuit Range / Performance
      P0A78-113, 284, 286, 287 Drive Motor "A" Inverter Performance
      Note:

      DTC P0A78-202 is stored after DTCs P0A1B-505, P0A40-506, P0A78-113, 284, 286 and/or 287 are stored. After troubleshooting and repairing the malfunction which caused DTC P0A78-202 to be stored, be sure to troubleshoot all the other DTCs.

      Result
      Proceed to
      NEXT

    • NEXT

      GO TO DTC CHART (HYBRID CONTROL SYSTEM)Click here
