ULTRASONIC SENSOR(for Rear Side) REMOVAL

PROCEDURE


  1. REMOVE REAR BUMPER ASSEMBLY

    Click here

  2. REMOVE NO. 3 LUGGAGE ROOM WIRE

    Click here

  3. REMOVE ULTRASONIC SENSOR WITH CLIP


    1. for Corner Sensor:

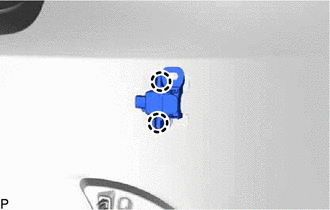

      1. A0125CN

        Disengage the 2 claws and remove the ultrasonic sensor with clip.

        Tech Tips

        The illustration is for the LH side. The orientation for the RH side is the opposite of the LH side.

    2. for Back Sensor:

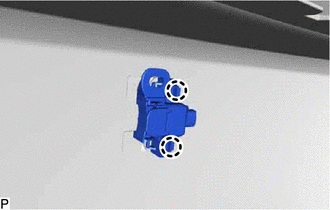

      1. A0124W6

        Disengage the 2 claws and remove the ultrasonic sensor with clip.

        Tech Tips

        The illustration is for the LH side. The orientation for the RH side is the opposite of the LH side.

  4. REMOVE NO. 1 ULTRASONIC SENSOR RETAINER

    Tech Tips

    Perform this step only when necessary.

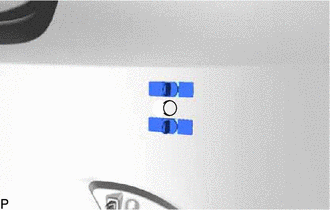

    1. A0126IU

      Remove the No. 1 ultrasonic sensor retainer.

      Tech Tips

      Use the same procedure for all No. 1 ultrasonic sensor retainers.

  5. REMOVE ULTRASONIC SENSOR CLIP

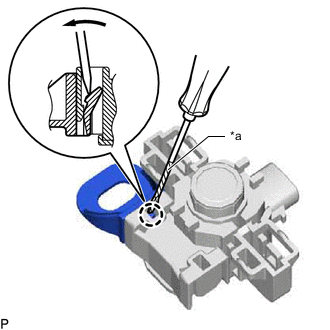

    1. A01257CC01
      *a Protective Tape

      Using a screwdriver with its tip wrapped with protective tape, disengage the claw and remove the ultrasonic sensor clip from the No. 1 ultrasonic sensor.

      Tech Tips

      Use the same procedure for all ultrasonic sensor clips.

  6. REMOVE NO. 1 ULTRASONIC SENSOR
