BLIND SPOT MONITOR SYSTEM PARTS LOCATION
ILLUSTRATION

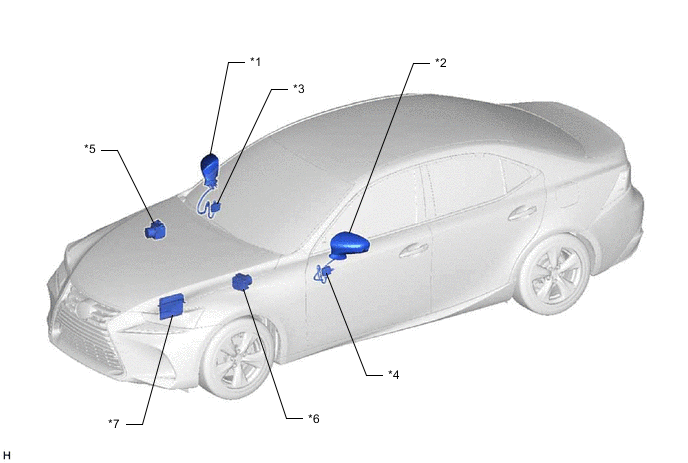

| *1 | OUTER REAR VIEW MIRROR ASSEMBLY RH | *2 | OUTER REAR VIEW MIRROR ASSEMBLY LH |
| *3 | OUTER MIRROR CONTROL ECU ASSEMBLY RH (w/ Seat Memory) | *4 | OUTER MIRROR CONTROL ECU ASSEMBLY LH (w/ Seat Memory) |
| *5 | BRAKE ACTUATOR ASSEMBLY (for RHD) - SKID CONTROL ECU |
*6 | BRAKE ACTUATOR ASSEMBLY (for LHD) - SKID CONTROL ECU |
| *7 | ECM | - | - |
ILLUSTRATION

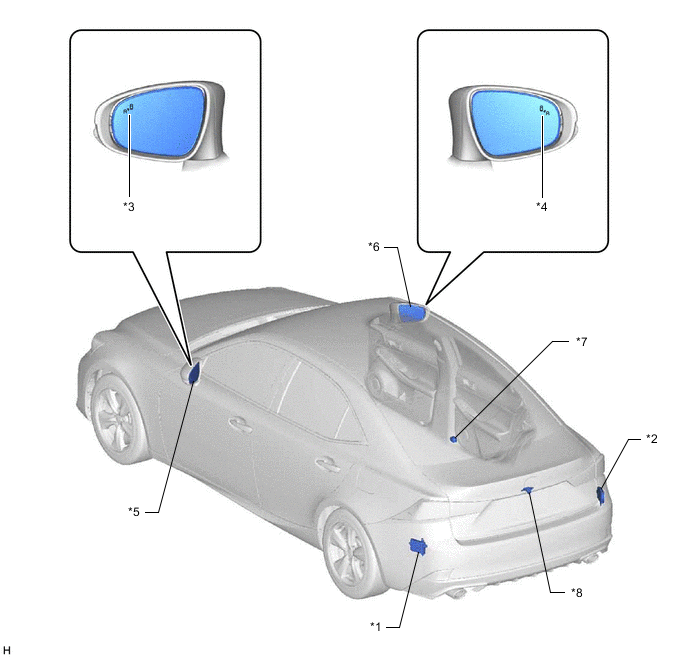

| *1 | BLIND SPOT MONITOR SENSOR LH (MASTER) | *2 | BLIND SPOT MONITOR SENSOR RH (SLAVE) |
| *3 | OUTER REAR VIEW MIRROR INDICATOR LH | *4 | OUTER REAR VIEW MIRROR INDICATOR RH |
| *5 | OUTER MIRROR LH | *6 | OUTER MIRROR RH |
| *7 | REAR CROSSING TRAFFIC ALERT BUZZER (BLIND SPOT MONITOR BUZZER) | *8 | REAR TELEVISION CAMERA ASSEMBLY (w/ Parking Assist Monitor System (w/o Parallel Parking Assist Function)) |
ILLUSTRATION
| *A | for LHD | - | - |

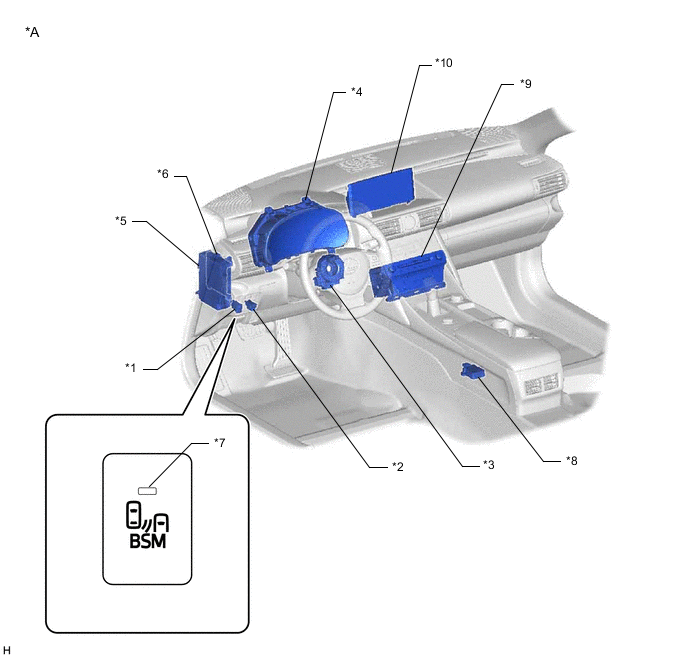

| *1 | BLIND SPOT MONITOR MAIN SWITCH (WARNING CANCELING SWITCH ASSEMBLY) | *2 | DLC3 |
| *3 | SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY | *4 | COMBINATION METER ASSEMBLY |
| *5 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-IG1 NO. 2 FUSE |
*6 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *7 | BLIND SPOT MONITOR INDICATOR | *8 | YAW RATE AND ACCELERATION SENSOR |
| *9 | RADIO RECEIVER ASSEMBLY | *10 | MULTI-DISPLAY ASSEMBLY |
ILLUSTRATION
| *A | for LHD | - | - |

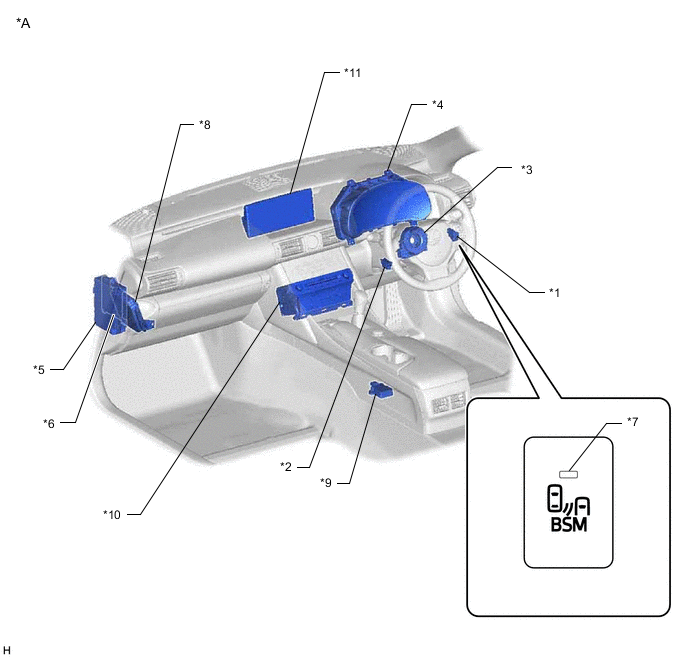

| *1 | BLIND SPOT MONITOR MAIN SWITCH (WARNING CANCELING SWITCH ASSEMBLY) | *2 | DLC3 |
| *3 | SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY | *4 | COMBINATION METER ASSEMBLY |
| *5 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-IG1 NO. 2 FUSE |
*6 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *7 | BLIND SPOT MONITOR INDICATOR | *8 | FRONT STEERING CONTROL ECU (w/ Variable Gear Ratio Steering System) |
| *9 | YAW RATE AND ACCELERATION SENSOR | *10 | RADIO RECEIVER ASSEMBLY |
| *11 | MULTI-DISPLAY ASSEMBLY | - | - |
