PARKING ASSIST MONITOR SYSTEM(w/ Parallel Parking Assist Function) PARTS LOCATION

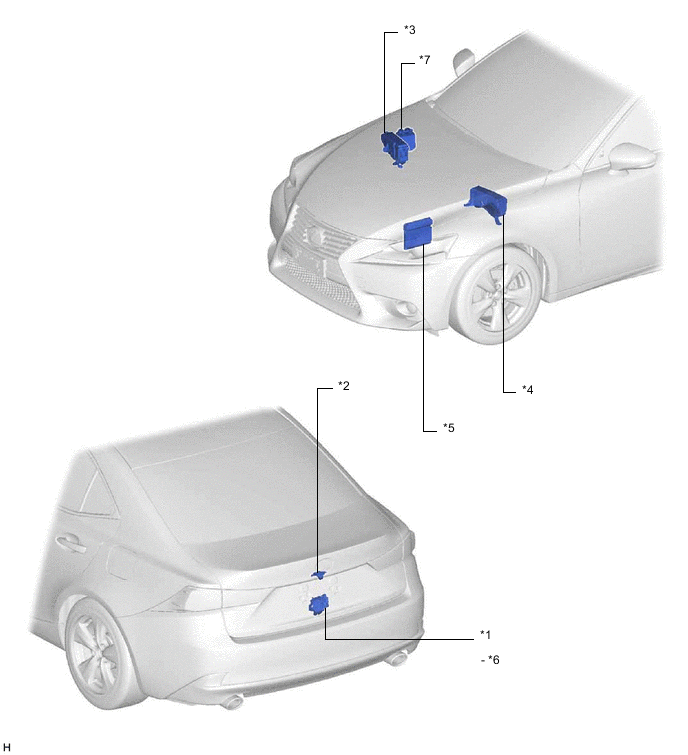

ILLUSTRATION
| *1 | LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY | *2 | REAR TELEVISION CAMERA ASSEMBLY |
| *3 | NO. 1 ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY (for LHD) - MPX-B NO. 1 FUSE |
*4 | NO. 1 ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY (for RHD) - MPX-B NO. 1 FUSE |
| *5 | ECM | *6 | LUGGAGE COMPARTMENT DOOR COURTESY SWITCH |
| *7 | BRAKE ACTUATOR ASSEMBLY - SKID CONTROL ECU |
- | - |
ILLUSTRATION

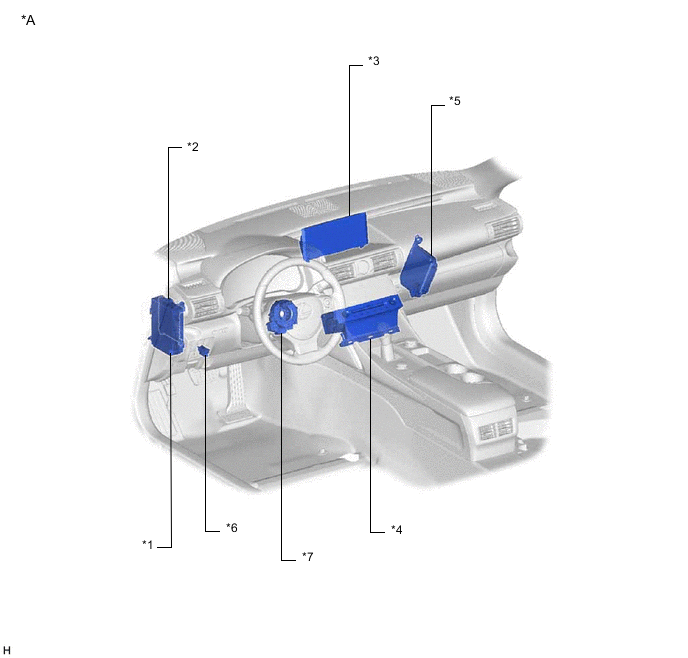

| *A | for LHD | - | - |
| *1 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-IG1 NO. 1 FUSE |
*2 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *3 | MULTI-DISPLAY ASSEMBLY | *4 | RADIO RECEIVER ASSEMBLY |
| *5 | FRONT STEERING CONTROL ECU (w/ Variable Gear Ratio Steering System) | *6 | DLC3 |
| *7 | SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY | - | - |
ILLUSTRATION

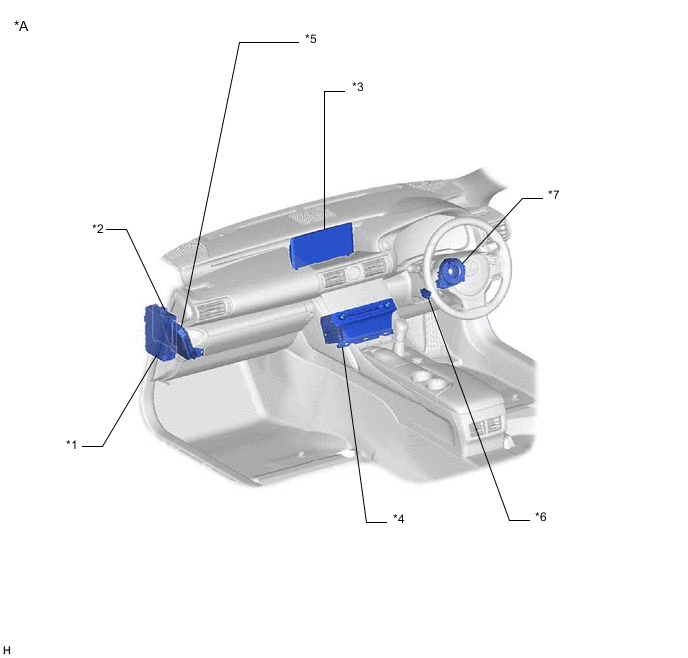

| *A | for RHD | - | - |
| *1 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-IG1 NO. 1 FUSE |
*2 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *3 | MULTI-DISPLAY ASSEMBLY | *4 | RADIO RECEIVER ASSEMBLY |
| *5 | FRONT STEERING CONTROL ECU (w/ Variable Gear Ratio Steering System) | *6 | DLC3 |
| *7 | SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY | - | - |
