PARKING ASSIST MONITOR SYSTEM(w/o Parallel Parking Assist Function) PARTS LOCATION

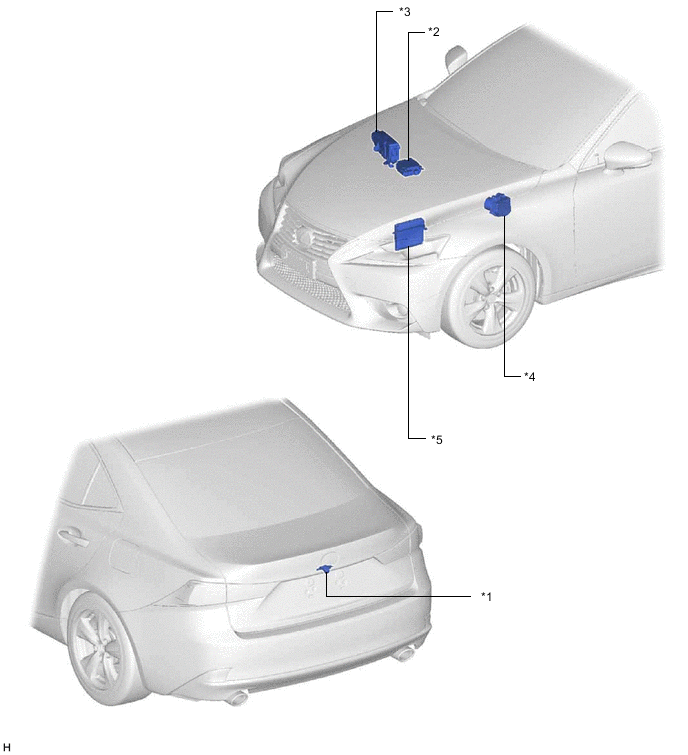

ILLUSTRATION
| *1 | REAR TELEVISION CAMERA ASSEMBLY | *2 | POWER STEERING ECU ASSEMBLY |
| *3 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - MPX-B NO. 1 FUSE |
*4 | BRAKE ACTUATOR ASSEMBLY - SKID CONTROL ECU |
| *5 | ECM | - | - |

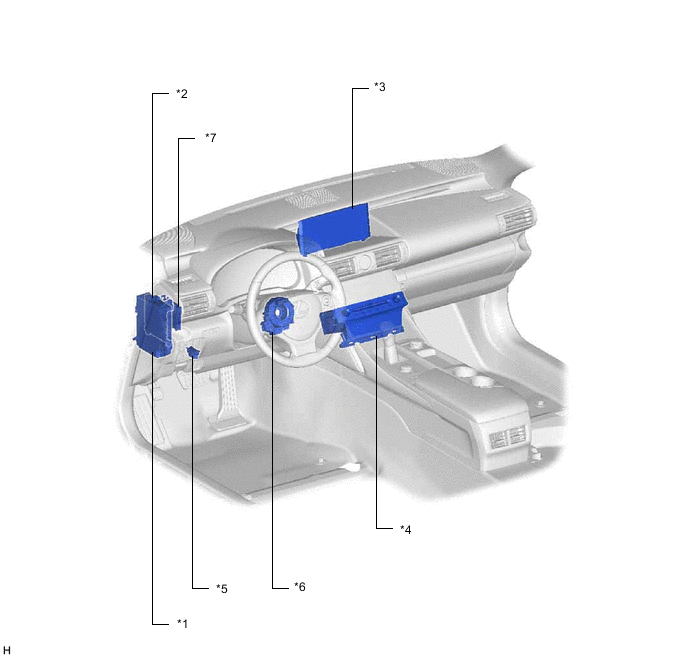

ILLUSTRATION
| *1 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-IG1 NO. 1 FUSE |
*2 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *3 | MULTI-DISPLAY ASSEMBLY | *4 | RADIO RECEIVER ASSEMBLY |
| *5 | DLC3 | *6 | SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY |
| *7 | CLEARANCE WARNING ECU ASSEMBLY | - | - |
