SEAT BELT WARNING SYSTEM PARTS LOCATION
ILLUSTRATION

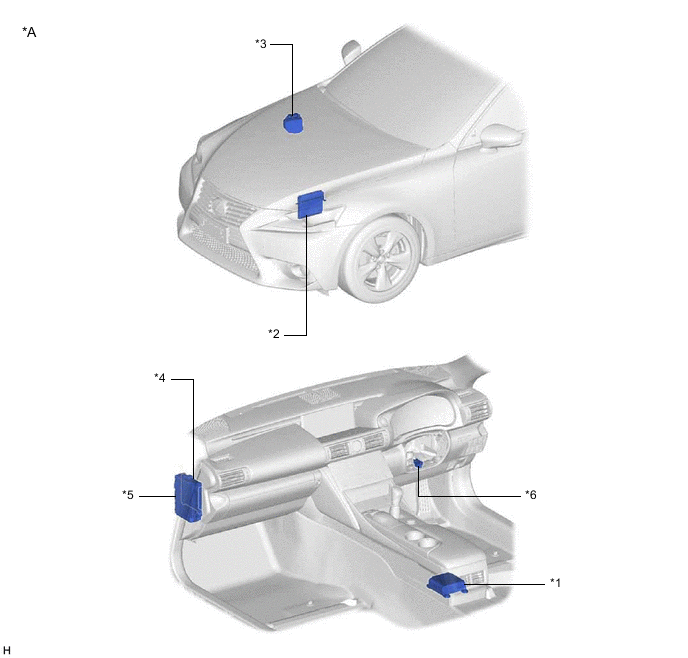

| *A | for LHD | - | - |
| *1 | AIRBAG SENSOR ASSEMBLY | *2 | ECM |
| *3 | SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY) | *4 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *5 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - IG1 NO. 3 FUSE (w/ Rear Seat Belt Warning) |
*6 | DLC3 |
ILLUSTRATION

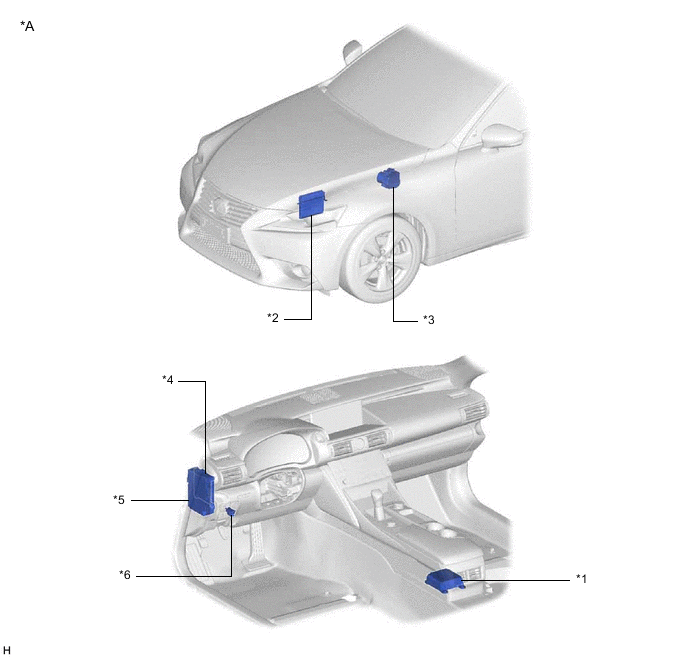

| *A | for RHD | - | - |
| *1 | AIRBAG SENSOR ASSEMBLY | *2 | ECM |
| *3 | SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY) | *4 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *5 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - IG1 NO. 3 FUSE (w/ Rear Seat Belt Warning) |
*6 | DLC3 |
ILLUSTRATION

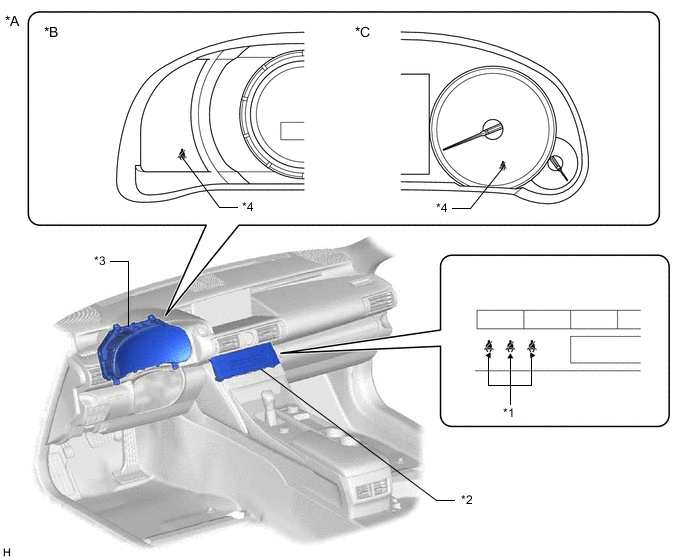

| *A | for LHD | *B | for F SPORT Models |
| *C | except F SPORT Models | - | - |
| *1 | REAR SEAT BELT WARNING LIGHT | *2 | AIR CONDITIONING CONTROL ASSEMBLY |
| *3 | COMBINATION METER ASSEMBLY - SEAT BELT WARNING BUZZER |
*4 | SEAT BELT WARNING LIGHT |
ILLUSTRATION

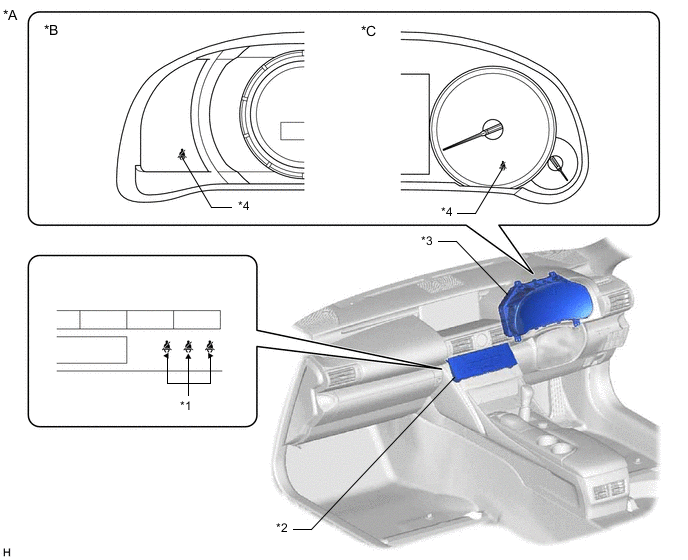

| *A | for RHD | *B | for F SPORT Models |
| *C | except F SPORT Models | - | - |
| *1 | REAR SEAT BELT WARNING LIGHT | *2 | AIR CONDITIONING CONTROL ASSEMBLY |
| *3 | COMBINATION METER ASSEMBLY - SEAT BELT WARNING BUZZER |
*4 | SEAT BELT WARNING LIGHT |
ILLUSTRATION
| *A | for LHD | *B | for Sports Seat Type |
| *C | for Standard Seat Type | - | - |
| *1 | FRONT SEAT INNER BELT ASSEMBLY (DRIVER SEAT) | *2 | OCCUPANT DETECTION SENSOR (FRONT SEAT CUSHION PAD WITH COVER (FRONT PASSENGER SEAT)) |
| *3 | FRONT SEAT INNER BELT ASSEMBLY (FRONT PASSENGER SEAT) | *4 | OCCUPANT DETECTION SENSOR (SEPARATE TYPE FRONT SEAT CUSHION PAD) |
ILLUSTRATION
| *A | for RHD | *B | for Sports Seat Type |
| *C | for Standard Seat Type | - | - |
| *1 | FRONT SEAT INNER BELT ASSEMBLY (DRIVER SEAT) | *2 | OCCUPANT DETECTION SENSOR (FRONT SEAT CUSHION PAD WITH COVER (FRONT PASSENGER SEAT)) |
| *3 | FRONT SEAT INNER BELT ASSEMBLY (FRONT PASSENGER SEAT) | *4 | OCCUPANT DETECTION SENSOR (SEPARATE TYPE FRONT SEAT CUSHION PAD) |
ILLUSTRATION

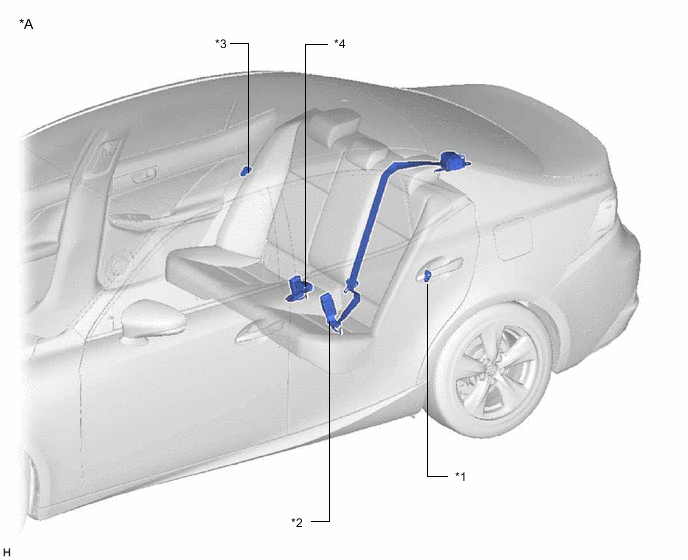

| *A | w/ Rear Seat Belt Warning for Fixed Seat Type | - | - |
| *1 | REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY (for LH) | *2 | REAR SEAT INNER WITH CENTER BELT ASSEMBLY LH |
| *3 | REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY (for RH) | *4 | REAR SEAT INNER BELT ASSEMBLY |
ILLUSTRATION

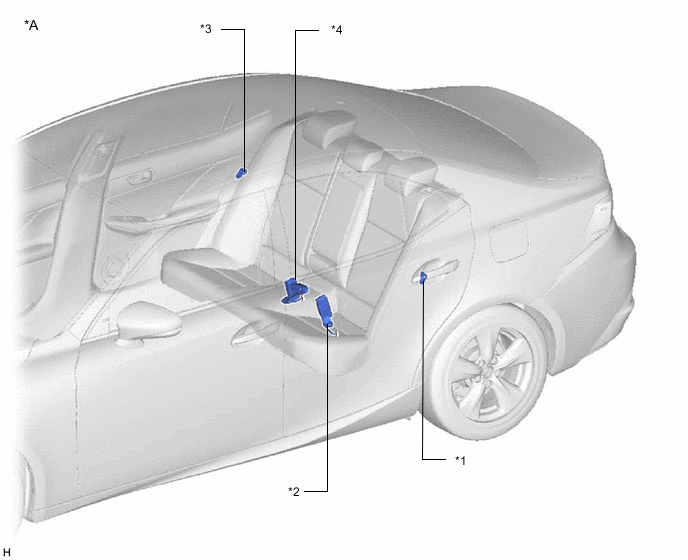

| *A | w/ Rear Seat Belt Warning for Fold Down Seat Type | - | - |
| *1 | REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY (for LH) | *2 | REAR NO. 1 SEAT INNER BELT ASSEMBLY LH |
| *3 | REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY (for RH) | *4 | REAR SEAT INNER BELT ASSEMBLY |
