FRONT AXLE HUB REMOVAL

CAUTION / NOTICE / HINT

Tech Tips


  • Use the same procedure for the RH side and LH side.

  • The procedure listed below is for the LH side.

PROCEDURE


  1. REMOVE FRONT WHEEL

  2. DISCONNECT SKID CONTROL SENSOR WIRE

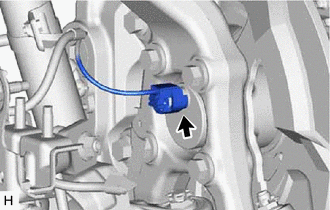

    1. A001J13

      Disconnect the skid control sensor wire connector from the front axle hub sub-assembly.

  3. SEPARATE FRONT DISC BRAKE CALIPER ASSEMBLY

    Click here

  4. REMOVE FRONT DISC

    Click here

  5. REMOVE FRONT AXLE HUB SUB-ASSEMBLY

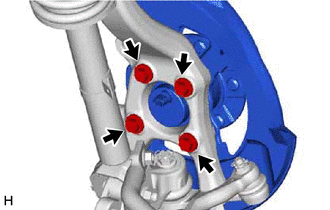

    1. A001IWA

      Remove the 4 bolts, front axle hub sub-assembly and front disc brake dust cover from the steering knuckle.
