FRONT AXLE HUB COMPONENTS

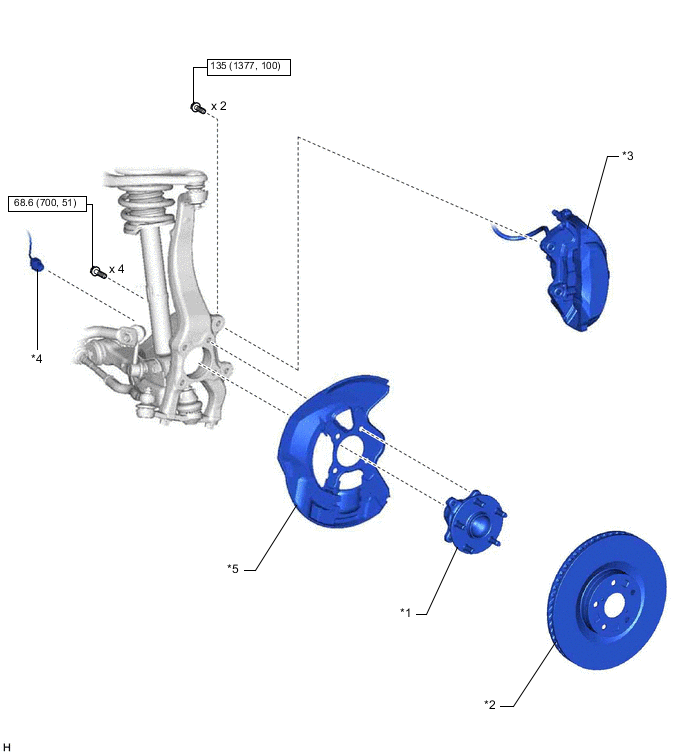

ILLUSTRATION
| *1 | FRONT AXLE HUB SUB-ASSEMBLY | *2 | FRONT DISC |
| *3 | FRONT DISC BRAKE CALIPER ASSEMBLY | *4 | SKID CONTROL SENSOR WIRE |
| *5 | FRONT DISC BRAKE DUST COVER | - | - |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
ILLUSTRATION
| *1 | FRONT AXLE HUB SUB-ASSEMBLY | *2 | FRONT DISC |
| *3 | FRONT DISC BRAKE CALIPER ASSEMBLY | *4 | SKID CONTROL SENSOR WIRE |
| *5 | FRONT DISC BRAKE DUST COVER | - | - |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
