FRONT AXLE HUB COMPONENTS

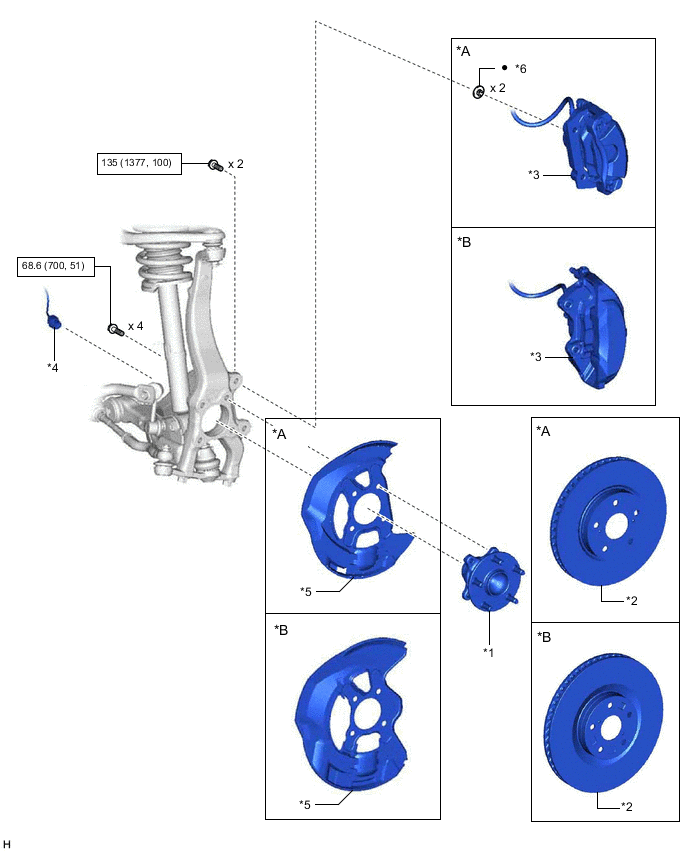

ILLUSTRATION
| *A | for 4GR-FSE | *B | for 2GR-FSE |
| *1 | FRONT AXLE HUB SUB-ASSEMBLY | *2 | FRONT DISC |
| *3 | FRONT DISC BRAKE CALIPER ASSEMBLY | *4 | SKID CONTROL SENSOR WIRE |
| *5 | FRONT DISC BRAKE DUST COVER | *6 | FRONT NO. 1 DISC BRAKE CALIPER PLATE |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
