AUTOMATIC TRANSMISSION SYSTEM(for 8AR-FTS) PARTS LOCATION
ILLUSTRATION
| *1 | ECM | *2 | NO. 2 ENGINE ROOM RELAY BLOCK AND NO. 2 JUNCTION BLOCK ASSEMBLY - EFI-MAIN FUSE - ETCS FUSE - ST NO. 1 RELAY - ST NO. 2 RELAY (w/ Stop and Start System) |

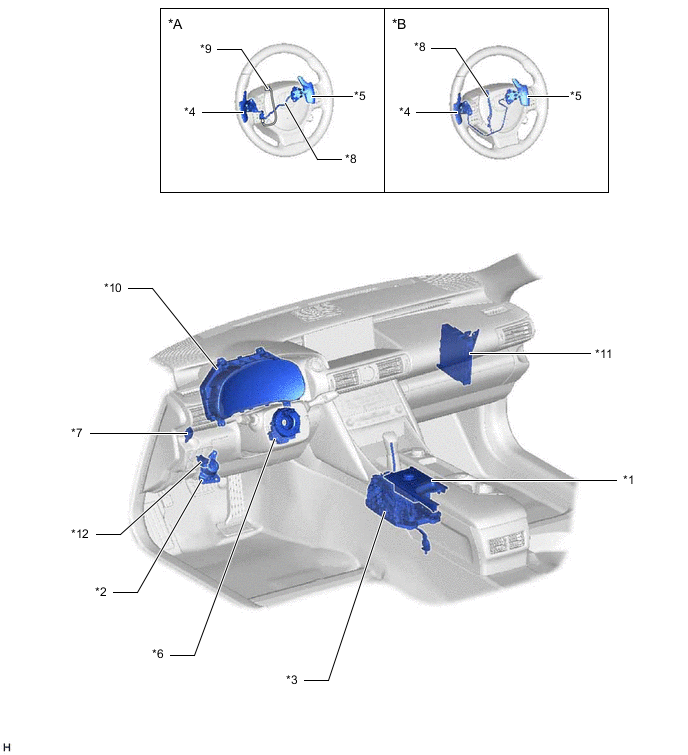

ILLUSTRATION
| *A | w/o Dynamic Radar Cruise Control System | *B | w/ Dynamic Radar Cruise Control System |
| *1 | COMBINATION SWITCH ASSEMBLY - SPORT MODE SWITCH - NORMAL MODE SWITCH - SNOW MODE SWITCH |
*2 | KICK DOWN SWITCH ASSEMBLY |
| *3 | TRANSMISSION FLOOR SHIFT ASSEMBLY - TRANSMISSION CONTROL SWITCH |
*4 | SHIFT PADDLE SWITCH LH (TRANSMISSION SHIFT SWITCH ASSEMBLY) |
| *5 | SHIFT PADDLE SWITCH RH (TRANSMISSION SHIFT SWITCH ASSEMBLY) |
*6 | SPIRAL CABLE SUB-ASSEMBLY |
| *7 | STOP LIGHT SWITCH ASSEMBLY | *8 | NO. 1 SWITCH WIRE |
| *9 | NO. 2 SWITCH WIRE | *10 | COMBINATION METER ASSEMBLY |
| *11 | ENGINE STOP AND START ECU (w/ Stop and Start System) | *12 | DLC3 |

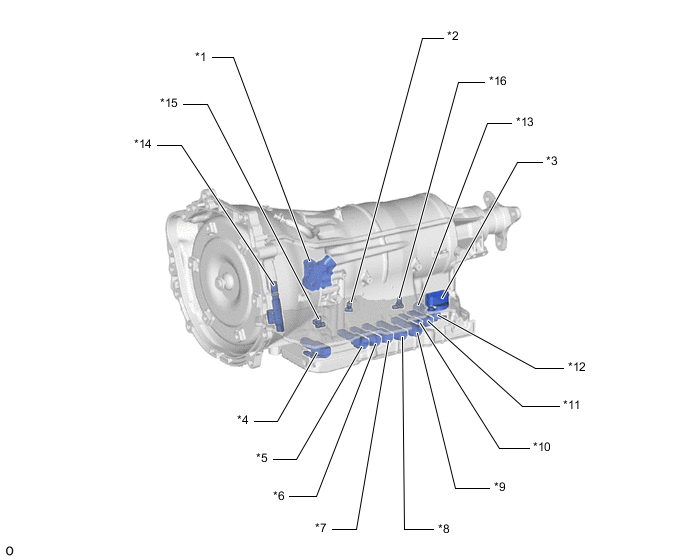

ILLUSTRATION
| *1 | PARK/NEUTRAL POSITION SWITCH ASSEMBLY | *2 | ATF TEMPERATURE SENSOR |
| *3 | TRANSMISSION WIRE | *4 | ELECTROMAGNETIC OIL PUMP (w/ Stop and Start System) |
| *5 | SOLENOID (SL5) VALVE | *6 | SOLENOID (SL3) VALVE |
| *7 | SOLENOID (SL4) VALVE | *8 | SOLENOID (SL2) VALVE |
| *9 | SOLENOID (SL1) VALVE | *10 | SOLENOID (SLT) VALVE |
| *11 | SOLENOID (SLU) VALVE | *12 | SOLENOID (SC2) VALVE |
| *13 | SOLENOID (SC1) VALVE | *14 | TRANSMISSION REVOLUTION SENSOR (NT) |
| *15 | TRANSMISSION REVOLUTION SENSOR (NC3) | *16 | TRANSMISSION REVOLUTION SENSOR (SP2) |
