STOP AND START SYSTEM PARTS LOCATION

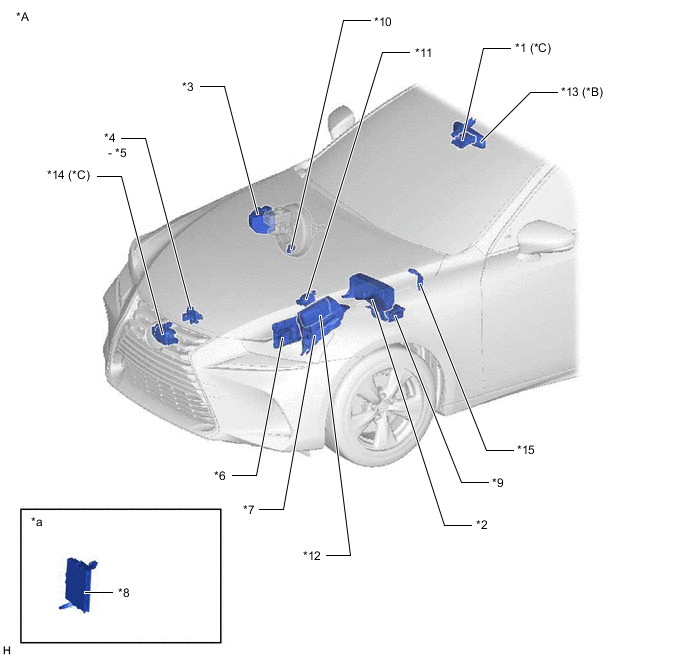

ILLUSTRATION
| *A | for LHD | *B | w/ Auto Glare-resistant EC Mirror |
| *C | w/ Lexus Safety System + | - | - |
| *1 | POWER STEERING ECU ASSEMBLY | *2 | HEATER ACCESSORY ASSEMBLY (HEATER WATER PUMP ASSEMBLY) |
| *3 | FORWARD RECOGNITION CAMERA | *4 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY |
| *5 | INNER REAR VIEW MIRROR ASSEMBLY | *6 | SEMICONDUCTOR PWR INTEGRATION ECU |
| *7 | MILLIMETER WAVE RADAR SENSOR ASSEMBLY | *8 | SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY) |
| *9 | VACUUM SENSOR ASSEMBLY | *10 | NO. 2 ENGINE ROOM RELAY BLOCK AND NO. 2 JUNCTION BLOCK ASSEMBLY |
| *11 | ECM | *12 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) |
| *13 | HOOD LOCK ASSEMBLY | *14 | ENGINE HOOD COURTESY SWITCH |
| *15 | BATTERY STATE SENSOR ASSEMBLY | - | - |
| *a | Refer to Service Bulletin for installation position of the part. | - | - |

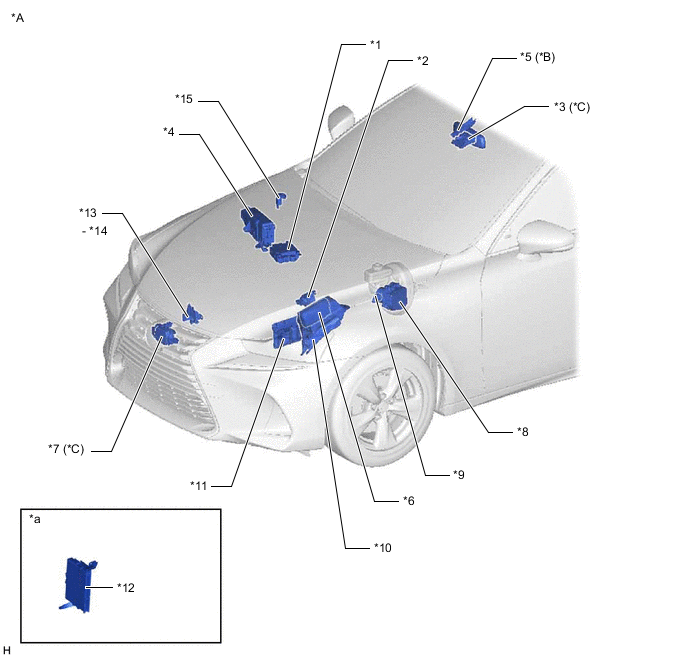

ILLUSTRATION
| *A | for RHD | *B | w/ Auto Glare-resistant EC Mirror |
| *C | w/ Lexus Safety System + | - | - |
| *1 | FORWARD RECOGNITION CAMERA | *2 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY |
| *3 | SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY) | *4 | HOOD LOCK ASSEMBLY |
| *5 | ENGINE HOOD COURTESY SWITCH | *6 | ECM |
| *7 | NO. 2 ENGINE ROOM RELAY BLOCK AND NO. 2 JUNCTION BLOCK ASSEMBLY | *8 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) |
| *9 | POWER STEERING ECU ASSEMBLY | *10 | VACUUM SENSOR ASSEMBLY |
| *11 | HEATER ACCESSORY ASSEMBLY (HEATER WATER PUMP ASSEMBLY) | *12 | SEMICONDUCTOR PWR INTEGRATION ECU |
| *13 | INNER REAR VIEW MIRROR ASSEMBLY | *14 | MILLIMETER WAVE RADAR SENSOR ASSEMBLY |
| *15 | BATTERY STATE SENSOR ASSEMBLY | - | - |
| *a | Refer to Service Bulletin for installation position of the part. | - | - |

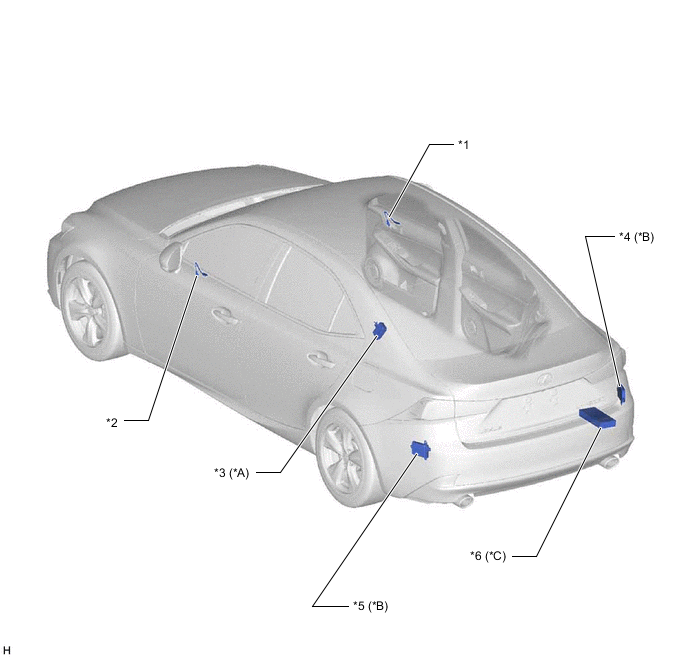

ILLUSTRATION
| *A | w/ Tire Pressure Warning System | *B | w/ Blind Spot Monitor System |
| *C | w/ 10 Speakers or 15 Speakers | - | - |
| *1 | FRONT DOOR INSIDE HANDLE ILLUMINATION LIGHT ASSEMBLY RH | *2 | FRONT DOOR INSIDE HANDLE ILLUMINATION LIGHT ASSEMBLY LH |
| *3 | TIRE PRESSURE WARNING ECU AND RECEIVER | *4 | BLIND SPOT MONITOR SENSOR RH |
| *5 | BLIND SPOT MONITOR SENSOR LH | *6 | STEREO COMPONENT AMPLIFIER ASSEMBLY |
ILLUSTRATION

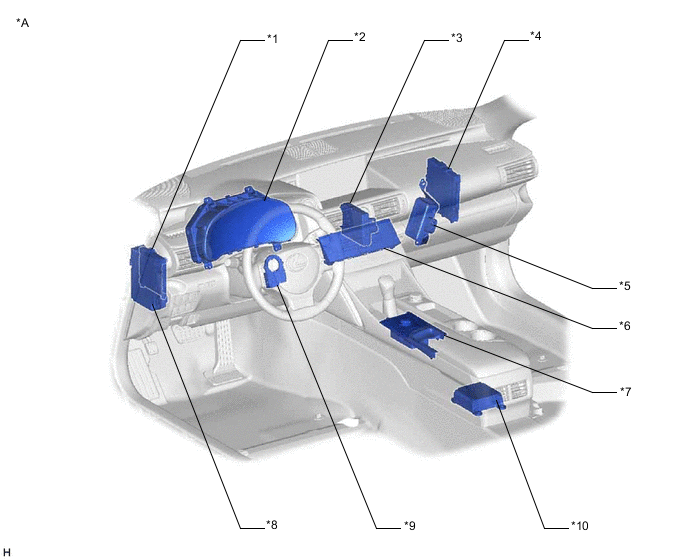

| *A | for LHD | - | - |
| *1 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *2 | COMBINATION METER ASSEMBLY |
| *3 | AIR CONDITIONING AMPLIFIER ASSEMBLY | *4 | ENGINE STOP AND START ECU |
| *5 | ECO RUN VEHICLE CONVERTER ASSEMBLY (EXTERNAL BACKUP BOOST CONVERTER) | *6 | AIR CONDITIONING CONTROL ASSEMBLY |
| *7 | STOP AND START SYSTEM CANCEL SWITCH (COMBINATION SWITCH ASSEMBLY) | *8 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY |
| *9 | STEERING SENSOR | *10 | AIRBAG SENSOR ASSEMBLY |
ILLUSTRATION

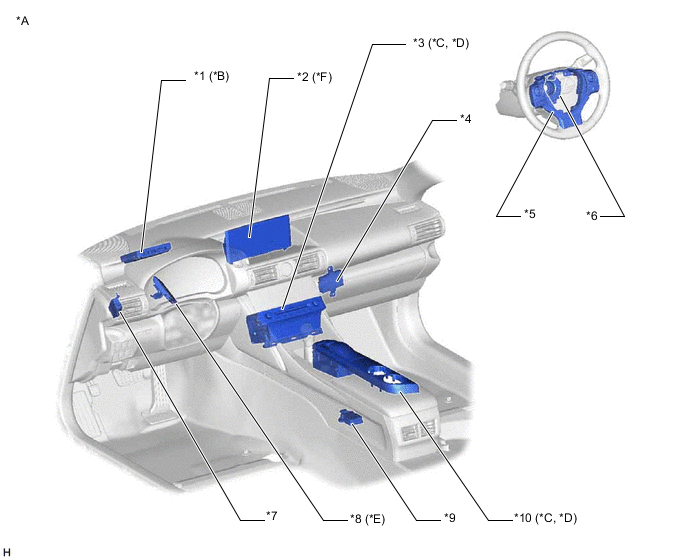

| *A | for LHD | *B | w/ Manual SOS Switch |
| *C | w/ Navigation System or Audio and Visual System (w/ Parallel Parking Assist Function) | *D | for Audio and Visual System (w/o Parallel Parking Assist Function) |
| *E | w/ Lexus Safety System + | *F | w/ Multi-display |
| *1 | DCM (TELEMATICS TRANSCEIVER) | *2 | MULTI-DISPLAY ASSEMBLY |
| *3 | RADIO RECEIVER ASSEMBLY | *4 | NETWORK GATEWAY ECU |
| *5 | STEERING PAD SWITCH ASSEMBLY | *6 | SPIRAL WITH SENSOR CABLE SUB-ASSEMBLY |
| *7 | ENGINE STOP AND START SOLENOID FILTER | *8 | DRIVING SUPPORT ECU ASSEMBLY |
| *9 | YAW RATE AND ACCELERATION SENSOR | *10 | REMOTE TOUCH (REMOTE OPERATION BOARD) |
ILLUSTRATION

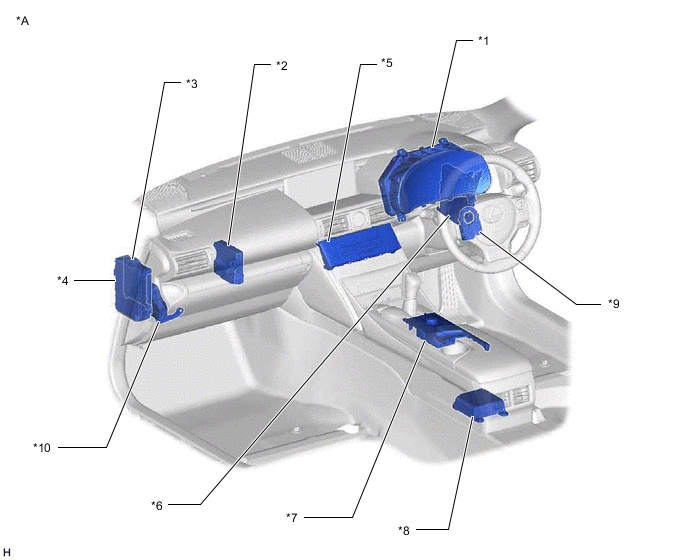

| *A | for RHD | - | - |
| *1 | COMBINATION METER ASSEMBLY | *2 | AIR CONDITIONING AMPLIFIER ASSEMBLY |
| *3 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *4 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY |
| *5 | AIR CONDITIONING CONTROL ASSEMBLY | *6 | ENGINE STOP AND START ECU |
| *7 | STOP AND START SYSTEM CANCEL SWITCH (COMBINATION SWITCH ASSEMBLY) | *8 | AIRBAG SENSOR ASSEMBLY |
| *9 | STEERING SENSOR | *10 | ECO RUN VEHICLE CONVERTER ASSEMBLY (EXTERNAL BACKUP BOOST CONVERTER) |

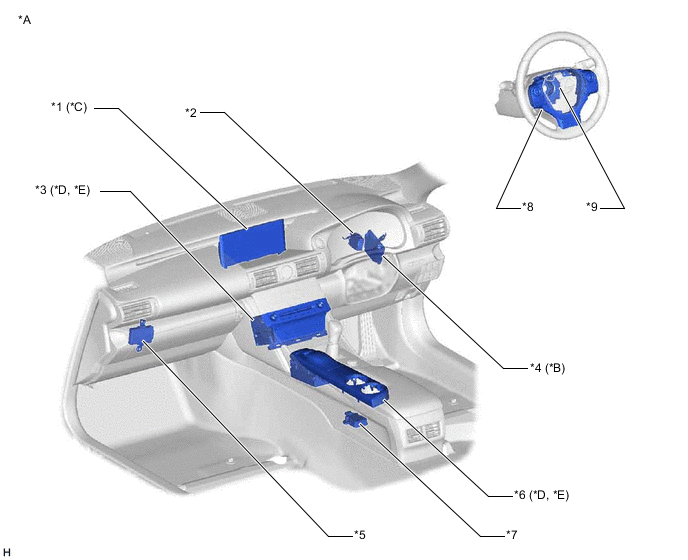

ILLUSTRATION
| *A | for RHD | *B | w/ Lexus Safety System + |
| *C | w/ Multi-display | *D | w/ Navigation System or Audio and Visual System (w/ Parallel Parking Assist Function) |
| *E | for Audio and Visual System (w/o Parallel Parking Assist Function) | - | - |
| *1 | MULTI-DISPLAY ASSEMBLY | *2 | ENGINE STOP AND START SOLENOID FILTER |
| *3 | RADIO RECEIVER ASSEMBLY | *4 | DRIVING SUPPORT ECU ASSEMBLY |
| *5 | NETWORK GATEWAY ECU | *6 | REMOTE TOUCH (REMOTE OPERATION BOARD) |
| *7 | YAW RATE AND ACCELERATION SENSOR | *8 | STEERING PAD SWITCH ASSEMBLY |
| *9 | SPIRAL WITH SENSOR CABLE SUB-ASSEMBLY | - | - |
ILLUSTRATION
| *1 | PARK / NEUTRAL POSITION SWITCH ASSEMBLY | *2 | STARTER ASSEMBLY |
| *3 | OIL PUMP ASSEMBLY WITH SOLENOID | - | - |
