TRANSMISSION WIRE(for 2GR) INSTALLATION

PROCEDURE

1. INSTALL TRANSMISSION WIRE




   1. Coat a new O-ring with ATF.

   2. Install the O-ring to the transmission wire connector.

   3. Install the transmission wire.

   4. Install the bolt.

      Torque:

      5.4 N*m  { 55 kgf*cm, 48 in.*lbf }

   5.

      Connect the transmission wire connector.

      Tech Tips

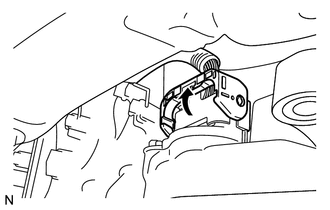

      Push up the lever until the claw of the transmission wire connector makes a connection sound.

   6. Connect the 3 connectors to the 3 transmission revolution sensors.

2. INSTALL TRANSMISSION VALVE BODY ASSEMBLY

   Click here
