ДВИГАТЕЛЬ В СБОРЕ УЗЛЫ И ДЕТАЛИ

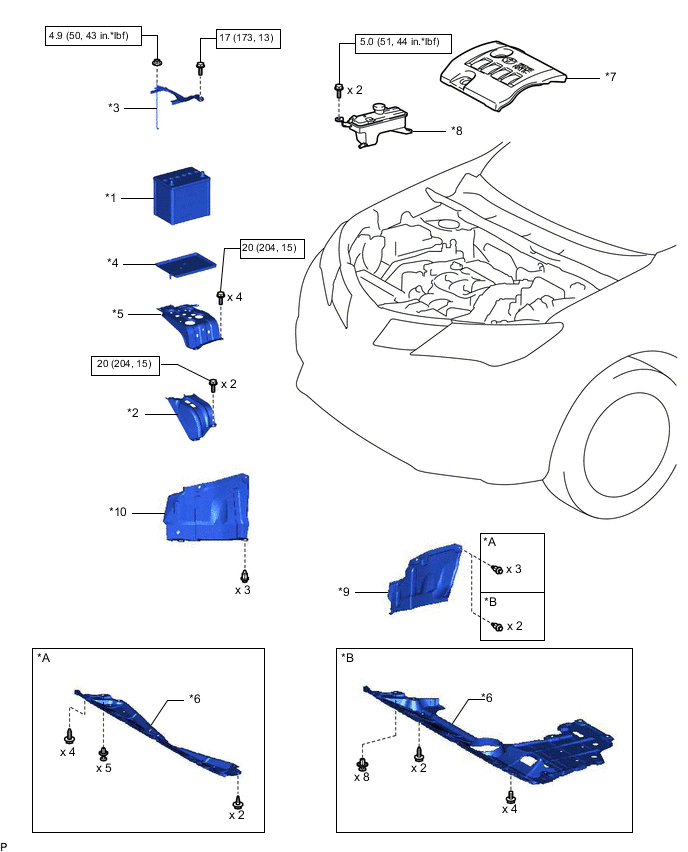

ILLUSTRATION
| *A | for Half Cover Type | *B | for Full Cover Type |
| *1 | BATTERY | *2 | BATTERY BRACKET REINFORCEMENT |
| *3 | BATTERY CLAMP SUB-ASSEMBLY | *4 | BATTERY TRAY |
| *5 | FRONT BATTERY BRACKET | *6 | NO. 1 ENGINE UNDER COVER |
| *7 | NO. 2 CYLINDER HEAD COVER | *8 | RADIATOR RESERVOIR ASSEMBLY |
| *9 | REAR ENGINE UNDER COVER LH | *10 | REAR ENGINE UNDER COVER RH |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
ILLUSTRATION
| *A | for Manual Transaxle | - | - |
| *1 | AIR CLEANER CAP SUB-ASSEMBLY | *2 | AIR CLEANER CASE SUB-ASSEMBLY |
| *3 | CLUTCH HOSE | *4 | COMPRESSOR ASSEMBLY WITH PULLEY |
| *5 | ECM | *6 | GENERATOR ASSEMBLY |
| *7 | NO. 1 RADIATOR HOSE | *8 | NO. 2 RADIATOR HOSE |
| *9 | V-RIBBED BELT | *10 | ECM CONNECTOR |
| *11 | TERMINAL CAP | *12 | NO. 2 GENERATOR BRACKET |
| *13 | AIR CLEANER FILTER ELEMENT | *14 | CLIP |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |

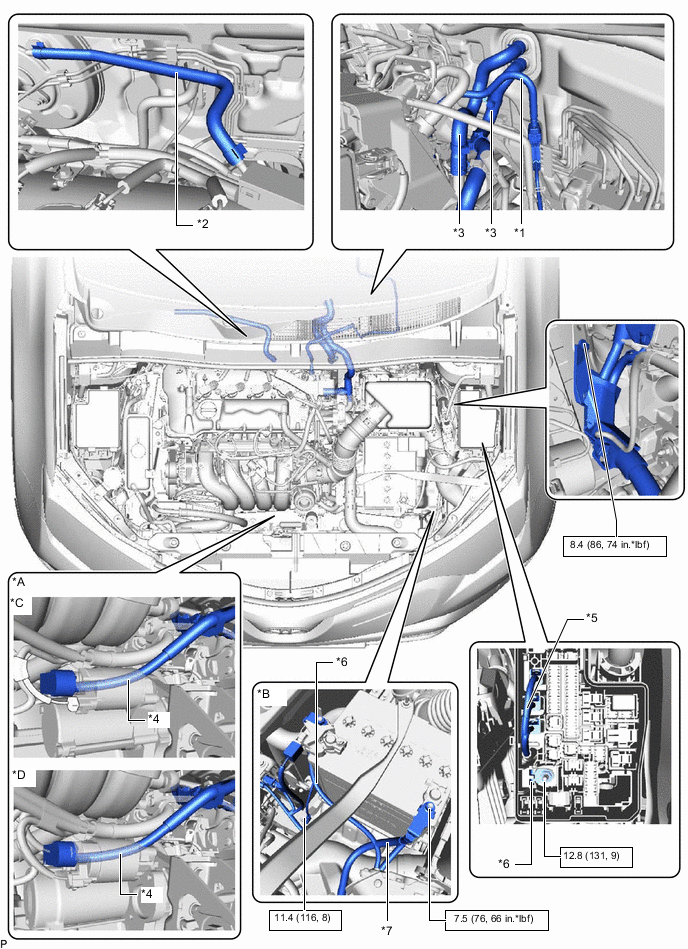

ILLUSTRATION
| *A | for Manual Transaxle | *B | for CVT |
| *C | w/o Stop and Start System | *D | w/ Stop and Start System |
| *1 | FUEL TUBE SUB-ASSEMBLY | *2 | CONNECTOR TUBE HOSE |
| *3 | HEATER HOSE | *4 | STARTER WIRE |
| *5 | ENGINE ROOM JUNCTION BLOCK CONNECTOR | *6 | ENGINE WIRE |
| *7 | ENGINE ROOM MAIN WIRE | - | - |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
ILLUSTRATION
| *1 | DRIVE SHAFT BEARING BRACKET | *2 | FRONT AXLE SHAFT NUT LH |
| *3 | FRONT DRIVE SHAFT ASSEMBLY LH | *4 | FRONT DRIVE SHAFT ASSEMBLY RH |
| *5 | FRONT DRIVE SHAFT HOLE SNAP RING LH | *6 | FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY LH |
| *7 | FRONT SPEED SENSOR LH | *8 | FRONT STABILIZER LINK ASSEMBLY LH |
| *9 | TIE ROD END SUB-ASSEMBLY LH | *10 | FRONT STABILIZER BAR |
| *11 | DRIVE SHAFT BEARING BRACKET HOLE SNAP RING | *12 | COTTER PIN |
| *a | for Axle Hub Spline Diameter 26 mm (1.02 in.) | *b | for Axle Hub Spline Diameter 30 mm (1.18 in.) |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
 |
MP grease |  |
Do not apply lubricants to the threaded parts |
ILLUSTRATION
| *1 | FRONT EXHAUST PIPE ASSEMBLY | *2 | FRONT FLOOR COVER |
| *3 | HEATED OXYGEN SENSOR | *4 | NO. 2 ENGINE UNDER COVER |
| *5 | PROPELLER WITH CENTER BEARING SHAFT ASSEMBLY | *6 | GASKET |
| *7 | COMPRESSION SPRING | *8 | CENTER NO. 2 SUPPORT BEARING WASHER |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
| |
Do not apply lubricants | * | for use with SST |
ILLUSTRATION
| *A | for CVT | - | - |
| *1 | TRANSMISSION CONTROL CABLE ASSEMBLY | *2 | ENGINE WIRE |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
ILLUSTRATION
| *A | for CVT | - | - |
| *1 | COLUMN HOLE COVER SILENCER SHEET | *2 | ENGINE MOUNTING INSULATOR LH |
| *3 | ENGINE MOUNTING INSULATOR SUB-ASSEMBLY RH | *4 | FRONT SUSPENSION MEMBER REINFORCEMENT LH |
| *5 | FRONT SUSPENSION MEMBER REINFORCEMENT RH | *6 | NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY |
| *7 | FRONT CROSSMEMBER SUB-ASSEMBLY | *8 | FRONT ENGINE MOUNTING INSULATOR |
| *9 | RADIATOR RESERVOIR BRACKET | *10 | FRONT SUSPENSION MEMBER BRACE REAR RH |
| *11 | FRONT SUSPENSION MEMBER BRACE REAR LH | *12 | WIRE HARNESS CLAMP BRACKET |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
ILLUSTRATION
| *A | for Manual Transaxle | *B | for RHD |
| *1 | ENGINE HANGER | *2 | NO. 1 STEERING COLUMN HOLE COVER SUB-ASSEMBLY |
| *3 | REAR ENGINE MOUNTING INSULATOR | *4 | STEERING GEAR HEAT INSULATOR |
| *5 | FRONT SUSPENSION CROSSMEMBER SUB-ASSEMBLY | *6 | CLAMP |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
ILLUSTRATION
| *A | for CVT | *B | for RHD |
| *1 | ENGINE HANGER | *2 | NO. 1 STEERING COLUMN HOLE COVER SUB-ASSEMBLY |
| *3 | REAR ENGINE MOUNTING INSULATOR | *4 | STEERING GEAR HEAT INSULATOR |
| *5 | FRONT SUSPENSION CROSSMEMBER SUB-ASSEMBLY | *6 | CLAMP |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |

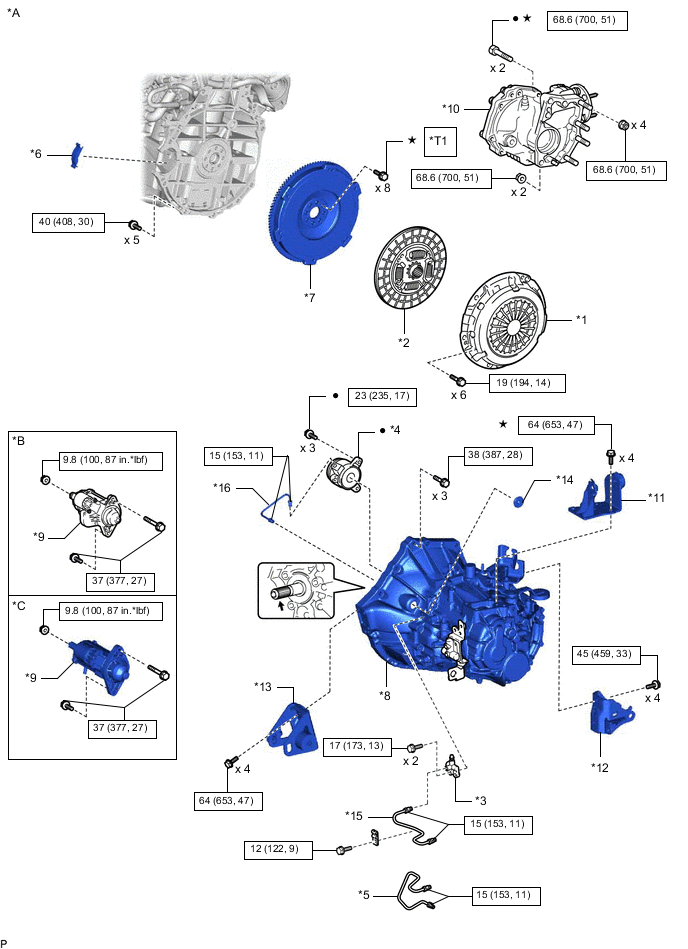

ILLUSTRATION
| *A | for Manual Transaxle | *B | w/ Stop and Start System |
| *C | w/o Stop and Start System | - | - |
| *1 | CLUTCH COVER ASSEMBLY | *2 | CLUTCH DISC ASSEMBLY |
| *3 | CLUTCH RELEASE BLEEDER SUB-ASSEMBLY | *4 | CLUTCH RELEASE WITH BEARING CYLINDER ASSEMBLY |
| *5 | ACCUMULATOR TO FLEXIBLE HOSE TUBE | *6 | FLYWHEEL HOUSING SIDE COVER |
| *7 | FLYWHEEL SUB-ASSEMBLY | *8 | MANUAL TRANSAXLE ASSEMBLY |
| *9 | STARTER ASSEMBLY | *10 | TRANSFER ASSEMBLY |
| *11 | ENGINE MOUNTING BRACKET LH | *12 | REAR ENGINE MOUNTING BRACKET |
| *13 | FRONT ENGINE MOUNTING BRACKET | *14 | CLUTCH TUBE BOOT |
| *15 | BLEEDER TO ACCUMULATOR TUBE | *16 | CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE TUBE |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
| |
Clutch spline grease | ★ | Precoated part |
| *T1 | 1st: 49 (500, 36) 2nd: Turn 90° |
- | - |
ILLUSTRATION
| *A | for CVT | - | - |
| *1 | CONTINUOUSLY VARIABLE TRANSAXLE ASSEMBLY | *2 | DRIVE PLATE AND RING GEAR SUB-ASSEMBLY |
| *3 | DRIVE PLATE AND TORQUE CONVERTER SETTING BOLT | *4 | FLYWHEEL HOUSING SIDE COVER |
| *5 | NO. 1 TRANSMISSION OIL COOLER HOSE | *6 | NO. 2 TRANSMISSION OIL COOLER HOSE |
| *7 | NO. 3 WATER BY-PASS HOSE | *8 | NO. 5 WATER BY-PASS HOSE |
| *9 | OIL COOLER | *10 | STARTER ASSEMBLY |
| *11 | TRANSFER ASSEMBLY | *12 | TRANSMISSION OIL COOLER BRACKET |
| *13 | FRONT DRIVE PLATE SPACER | *14 | REAR DRIVE PLATE SPACER |
| *15 | FLYWHEEL HOUSING UNDER COVER | *16 | REAR ENGINE MOUNTING BRACKET |
| *17 | FRONT ENGINE MOUNTING BRACKET LH | *18 | ENGINE MOUNTING STAY LH |
| *19 | FRONT ENGINE MOUNTING BRACKET | - | - |
| *a | BLACK COLOR: x 1 SILVER COLOR: x 5 |
- | - |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
| |
Clutch spline grease | ★ | Precoated part |
