СИСТЕМА ЗАПУСКА РАСПОЛОЖЕНИЕ ДЕТАЛЕЙ

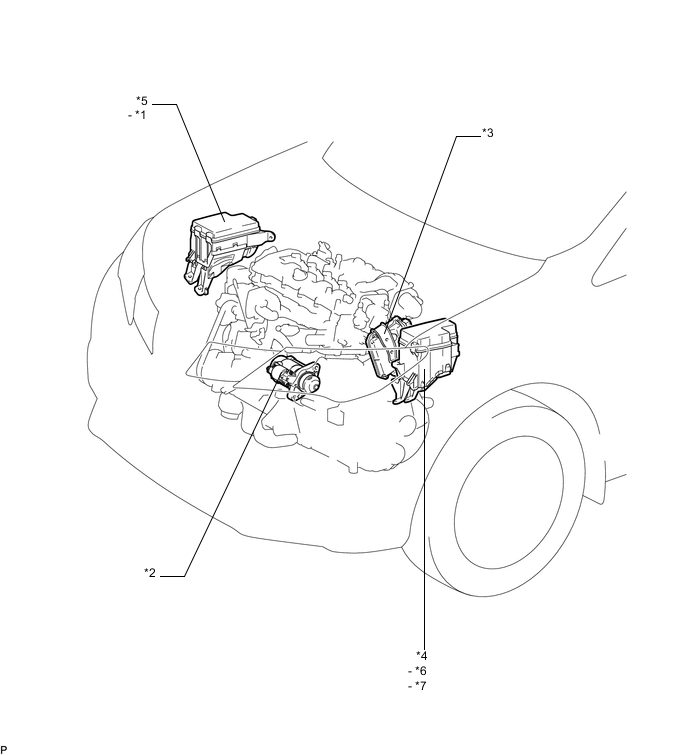

ILLUSTRATION
| *1 | ST RELAY | *2 | STARTER |
| *3 | ECM | *4 | ENGINE ROOM NO. 1 RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY |
| *5 | ENGINE ROOM NO. 2 RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY | *6 | AM2 FUSE |
| *7 | ST FUSE | - | - |

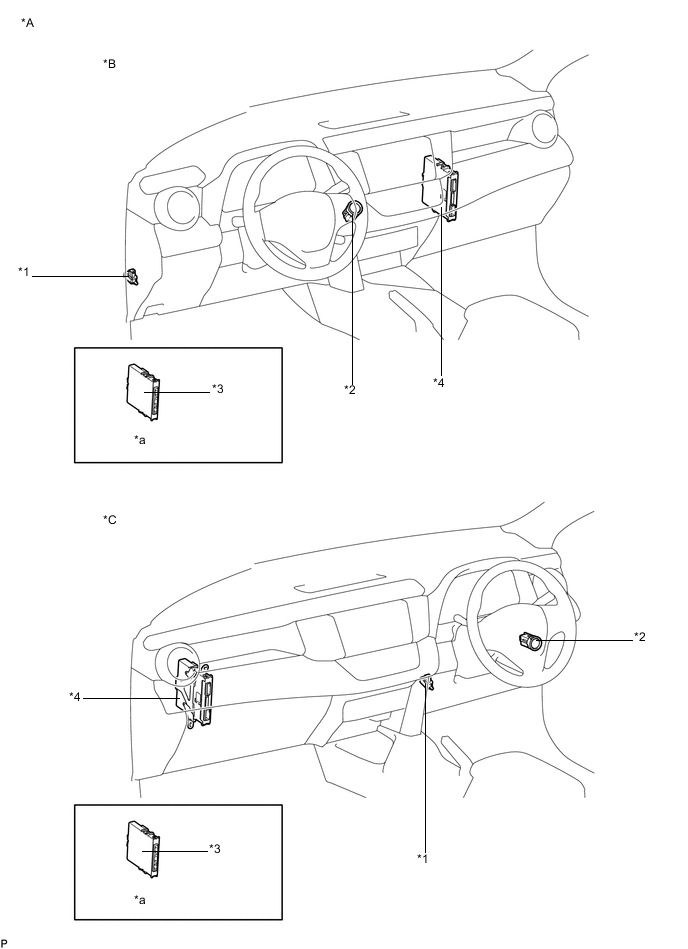

ILLUSTRATION
| *A | w/ Entry and Start System | *B | for LHD |
| *C | for RHD | - | - |
| *1 | CLUTCH PEDAL SWITCH | *2 | ENGINE SWITCH |
| *3 | CERTIFICATION ECU | *4 | ENGINE STOP AND START ECU |
| *a | Refer to the Service Bulletin for the installation position | - | - |

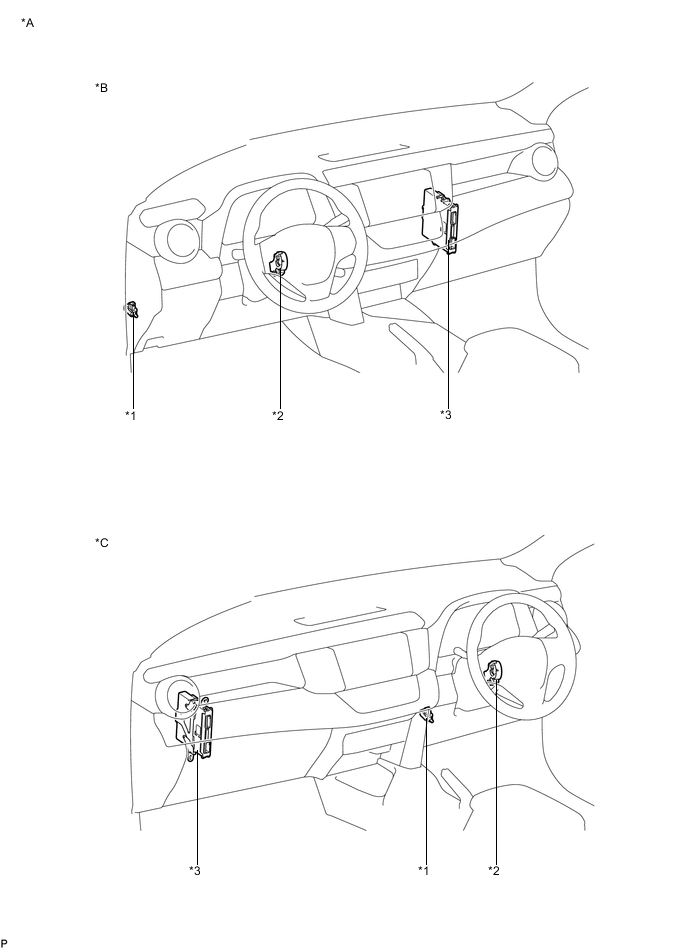

ILLUSTRATION
| *A | w/o Entry and Start System | *B | for LHD |
| *C | for RHD | - | - |
| *1 | CLUTCH PEDAL SWITCH | *2 | IGNITION SWITCH |
| *3 | ENGINE STOP AND START ECU | - | - |
