ЖГУТ ЭЛЕКТРОПРОВОДКИ ТРАНСМИССИИ (для моделей с 2GR-FSE) ПРОВЕРКА

PROCEDURE


  1. INSPECT TRANSMISSION WIRE

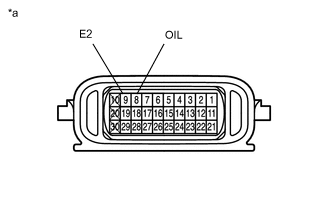

    A01MVPTC03
    *a

    Component without harness connected

    (Transmission Wire (ATF Temperature Sensor))

    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection ATF Temperature Specified Condition
      8 (OIL) - Body ground Always 10 kΩ or higher
      9 (E2) - Body ground Always 10 kΩ or higher

      Tech Tips

      If the resistance is out of the specified range at any of the ATF temperatures shown in the table below, the driveability of the vehicle may decrease.

      Standard Resistance
      Tester Connection ATF Temperature Specified Condition
      8 (OIL) - 9 (E2) 10°C (50°F) 5 to 8 kΩ
      8 (OIL) - 9 (E2) 25°C (77°F) 2.5 to 4.5 kΩ
      8 (OIL) - 9 (E2) 110°C (230°F) 0.22 to 0.28 kΩ

      If the result is not as specified, replace the transmission wire (ATF temperature sensor).
