BACK DOOR OUTSIDE GARNISH(for Upper Side) DISASSEMBLY

PROCEDURE


  1. REMOVE SYMBOL EMBLEM

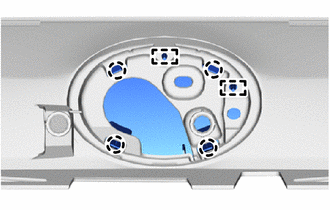

    1. A01PHSK

      Detach the 4 claws and 2 guides and remove the symbol emblem.

  2. REMOVE BACK DOOR OUTSIDE GARNISH PROTECTOR

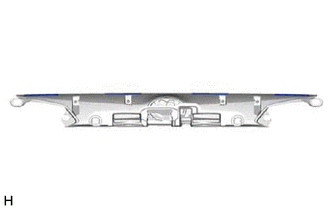

    1. A01PLFL

      Remove the 4 back door outside garnish protectors.
