BACK DOOR OUTSIDE GARNISH(for Upper Side) REMOVAL

PROCEDURE

1. REMOVE BACK DOOR CENTER GARNISH

   Click here

2. REMOVE BACK DOOR SIDE GARNISH LH

   Click here

3. REMOVE BACK DOOR SIDE GARNISH RH

   Tech Tips

   Use the same procedure described for the LH side.

4. REMOVE BACK DOOR TRIM BOARD ASSEMBLY

   Click here

5. REMOVE POWER BACK DOOR SENSOR ASSEMBLY LH (w/ Power Back Door)

   Click here

6. REMOVE POWER BACK DOOR SENSOR ASSEMBLY RH (w/ Power Back Door)

   Tech Tips

   Use the same procedure described for the LH side.

7. REMOVE REAR LIGHT ASSEMBLY LH

   Click here

8. REMOVE REAR LIGHT ASSEMBLY RH

   Tech Tips

   Use the same procedure described for the LH side.

9. REMOVE BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY

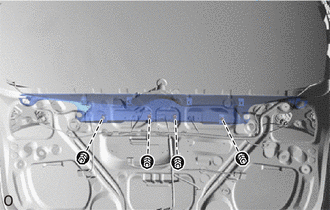

   1. Remove the 4 nuts.

   2.

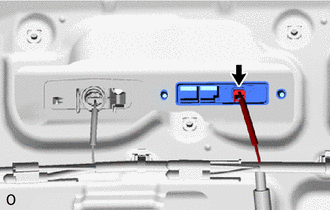

      Disconnect the connector.

   3.

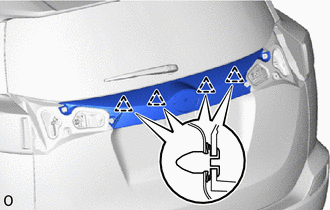

      Detach the 4 clips and remove the back door outside garnish sub-assembly.

10. REMOVE BACK DOOR OPENER SWITCH ASSEMBLY

    Click here
