BACK DOOR OUTSIDE GARNISH(for Upper Side) COMPONENTS

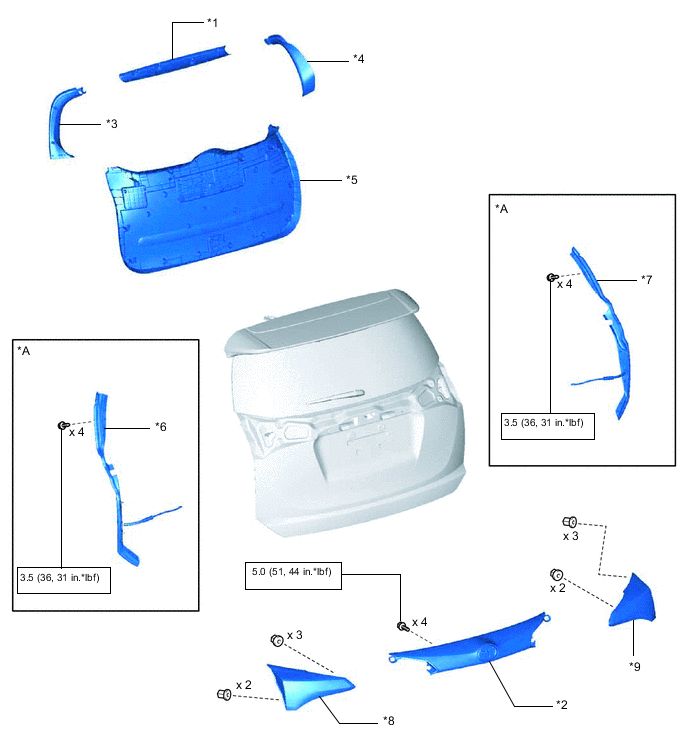

ILLUSTRATION
| *A | w/ Power Back Door | - | - |
| *1 | BACK DOOR CENTER GARNISH | *2 | BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY |
| *3 | BACK DOOR SIDE GARNISH LH | *4 | BACK DOOR SIDE GARNISH RH |
| *5 | BACK DOOR TRIM BOARD ASSEMBLY | *6 | POWER BACK DOOR SENSOR ASSEMBLY LH |
| *7 | POWER BACK DOOR SENSOR ASSEMBLY RH | *8 | REAR LIGHT ASSEMBLY LH |
| *9 | REAR LIGHT ASSEMBLY RH | - | - |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

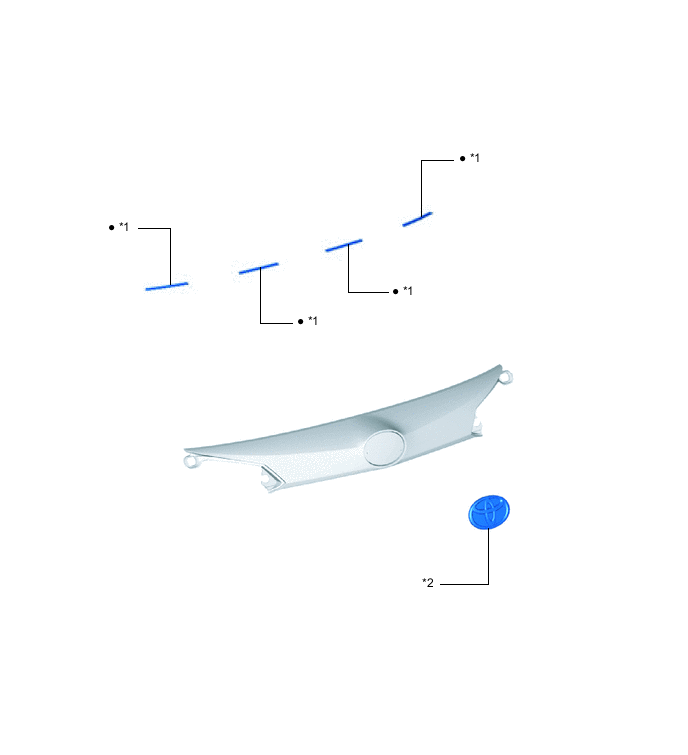

ILLUSTRATION
| *1 | BACK DOOR OUTSIDE GARNISH PROTECTOR | *2 | SYMBOL EMBLEM |
| ● | Non-reusable part | - | - |
