BACK DOOR OUTSIDE GARNISH(for Upper Side) REASSEMBLY

PROCEDURE


  1. INSTALL BACK DOOR OUTSIDE GARNISH PROTECTOR

    Tech Tips

    When installing the back door outside garnish protector, heat the body back door outside garnish using a heat light.

    Standard
    Item Temperature
    Back Door Outside Garnish Protector 20 to 30°C (68 to 86°F)

    Note

    Do not heat the back door outside garnish excessively.


    1. Clean the back door outside garnish surface.


      1. Using a heat light, heat the back door outside garnish surface.

      2. Remove the double-sided tape from the back door outside garnish.

      3. Wipe off any tape adhesive residue with cleaner.

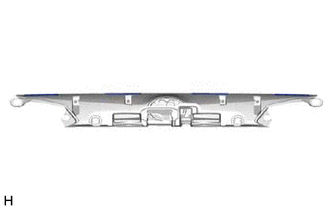

    2. A01QU7C

      Install 4 new back door outside garnish protectors.


      1. Using a heat light, heat the back door outside garnish.

      2. Remove the peeling paper from the face of the back door outside garnish protector.

        Tech Tips

        After removing the peeling paper, keep the exposed adhesive free from foreign matter.

      3. Install the back door outside garnish protector as shown in the illustration.

        Tech Tips

        Press the back door outside garnish protector firmly to install it.

  2. INSTALL SYMBOL EMBLEM


    1. Attach the 4 claws and 2 guides to install the symbol emblem.
