WHEEL OPENING MOULDING REASSEMBLY

CAUTION / NOTICE / HINT

Tech Tips


  • Use the same procedure for the RH and LH sides.

  • The procedure listed below is for the LH side.

PROCEDURE


  1. INSTALL FRONT WHEEL NO. 3 OPENING EXTENSION PAD

    Tech Tips

    When installing the front wheel No. 3 opening extension pad, heat the front fender front outside moulding LH using a heat light.

    Standard
    Item Temperature
    Front Fender Front Outside Moulding LH 20 to 30°C (68 to 86°F)

    Note

    Do not heat the front fender front outside moulding LH excessively.


    1. Clean the front fender front outside moulding LH surface.


      1. Using a heat light, heat the front fender front outside moulding LH surface.

      2. Remove the double-sided tape from the front fender front outside moulding LH.

      3. Wipe off any tape adhesive residue with cleaner.

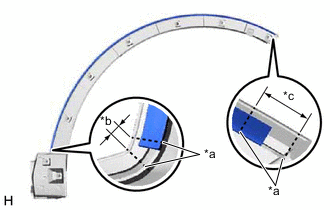

    2. A01PHHPC01
      *a Mark-off Line
      *b 3.0 mm (0.118 in.)
      *c 10.0 mm (0.394 in.)

      Install a new front wheel No. 3 opening extension pad.


      1. Using a heat light, heat the front fender front outside moulding LH.

      2. Remove the peeling paper from the face of the front wheel No. 3 opening extension pad.

        Tech Tips

        After removing the peeling paper, keep the exposed adhesive free from foreign matter.

      3. Align the front wheel opening No. 3 extension pad with the mark-off line of the front fender front outside moulding LH, and then install it.

        Tech Tips

        Press the front wheel No. 3 opening extension pad firmly to install it.

  2. INSTALL FRONT WHEEL NO. 5 OPENING EXTENSION PAD

    Tech Tips

    When installing the front wheel No. 5 opening extension pad, heat the front fender front outside moulding LH using a heat light.

    Standard
    Item Temperature
    Front Fender Front Outside Moulding LH 20 to 30°C (68 to 86°F)

    Note

    Do not heat the front fender front outside moulding LH excessively.


    1. Clean the front fender front outside moulding LH surface.


      1. Using a heat light, heat the front fender front outside moulding LH surface.

      2. Remove the double-sided tape from the front fender front outside moulding LH.

      3. Wipe off any tape adhesive residue with cleaner.

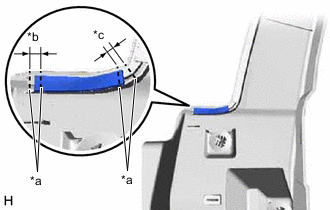

    2. A01PI03C01
      *a Mark-off Line
      *b 4.0 mm (0.157 in.)
      *c 3.0 mm (0.118 in.)

      Install a new front wheel No. 5 opening extension pad.


      1. Using a heat light, heat the front fender front outside moulding LH.

      2. Remove the peeling paper from the face of the front wheel No. 5 opening extension pad.

        Tech Tips

        After removing the peeling paper, keep the exposed adhesive free from foreign matter.

      3. Align the front wheel opening No. 5 extension pad with the mark-off line of the front fender front outside moulding LH, and then install it.

        Tech Tips

        Press the front wheel No. 5 opening extension pad firmly to install it.

  3. INSTALL FRONT WHEEL NO. 1 OPENING EXTENSION PAD

    Tech Tips

    When installing the front wheel No. 1 opening extension pad, heat the front fender front outside moulding LH using a heat light.

    Standard
    Item Temperature
    Front Fender Front Outside Moulding LH 20 to 30°C (68 to 86°F)

    Note

    Do not heat the front fender front outside moulding LH excessively.


    1. Clean the front fender front outside moulding LH surface.


      1. Using a heat light, heat the front fender front outside moulding LH surface.

      2. Remove the double-sided tape from the front fender front outside moulding LH.

      3. Wipe off any tape adhesive residue with cleaner.

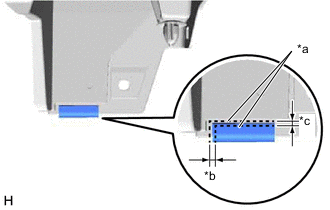

    2. A01PH2YC01
      *a Mark-off Line
      *b 2.0 mm (0.0787 in.)
      *c 2.0 mm (0.0787 in.)

      Install a new front wheel No. 1 opening extension pad.


      1. Using a heat light, heat the front fender front outside moulding LH.

      2. Remove the peeling paper from the face of the front wheel No. 1 opening extension pad.

        Tech Tips

        After removing the peeling paper, keep the exposed adhesive free from foreign matter.

      3. Install the front wheel No. 1 opening extension pad.

        Tech Tips

        Press the front wheel No. 1 opening extension pad firmly to install it.

  4. INSTALL NO. 1 BODY OUTSIDE MOULDING PAD

    Tech Tips

    When installing the No. 1 body outside moulding pad, heat the center quarter outside moulding LH using a heat light.

    Standard
    Item Temperature
    Center Quarter Outside Moulding LH 20 to 30°C (68 to 86°F)

    Note

    Do not heat the center quarter outside moulding LH excessively.


    1. Clean the center quarter outside moulding LH surface.


      1. Using a heat light, heat the center quarter outside moulding LH surface.

      2. Remove the double-sided tape from the center quarter outside moulding LH.

      3. Wipe off any tape adhesive residue with cleaner.

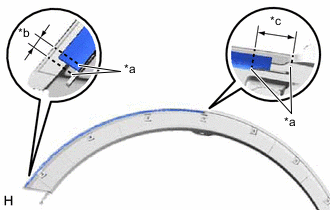

    2. A01PHQIC01
      *a Mark-off Line
      *b 3.0 mm (0.118 in.)
      *c 10.0 mm (0.394 in.)

      Install a new No. 1 body outside moulding pad.


      1. Using a heat light, heat the center quarter outside moulding LH.

      2. Remove the peeling paper from the face of the No. 1 body outside moulding pad.

        Tech Tips

        After removing the peeling paper, keep the exposed adhesive free from foreign matter.

      3. Install the No. 1 body outside moulding pad.

        Tech Tips

        Press the No. 1 body outside moulding pad firmly to install it.

  5. INSTALL NO. 2 BODY OUTSIDE MOULDING PAD

    Tech Tips

    When installing the No. 2 body outside moulding pad, heat the center quarter outside moulding LH using a heat light.

    Standard
    Item Temperature
    Center Quarter Outside Moulding LH 20 to 30°C (68 to 86°F)

    Note

    Do not heat the center quarter outside moulding LH excessively.


    1. Clean the center quarter outside moulding LH surface.


      1. Using a heat light, heat the center quarter outside moulding LH surface.

      2. Remove the double-sided tape from the center quarter outside moulding LH.

      3. Wipe off any tape adhesive residue with cleaner.

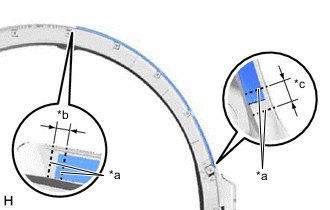

    2. A01PKKNC01
      *a Mark-off Line
      *b 3.0 mm (0.118 in.)
      *c 10.0 mm (0.394 in.)

      Install a new No. 2 body outside moulding pad.


      1. Using a heat light, heat the center quarter outside moulding LH.

      2. Remove the peeling paper from the face of the No. 2 body outside moulding pad.

        Tech Tips

        After removing the peeling paper, keep the exposed adhesive free from foreign matter.

      3. Install the No. 2 body outside moulding pad.

        Tech Tips

        Press the No. 2 body outside moulding pad firmly to install it.

  6. INSTALL NO. 3 BODY OUTSIDE MOULDING PAD

    Tech Tips

    When installing the No. 3 body outside moulding pad, heat the center quarter outside moulding LH using a heat light.

    Standard
    Item Temperature
    Center Quarter Outside Moulding LH 20 to 30°C (68 to 86°F)

    Note

    Do not heat the center quarter outside moulding LH excessively.


    1. Clean the center quarter outside moulding LH surface.


      1. Using a heat light, heat the center quarter outside moulding LH surface.

      2. Remove the double-sided tape from the center quarter outside moulding LH.

      3. Wipe off any tape adhesive residue with cleaner.

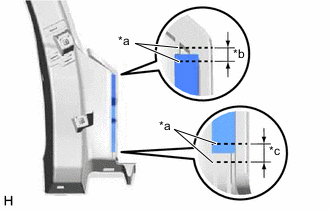

    2. A01PJ6DC01
      *a Mark-off Line
      *b 3.0 mm (0.118 in.)
      *c 6.0 mm (0.236 in.)

      Install a new No. 3 body outside moulding pad.


      1. Using a heat light, heat the center quarter outside moulding LH.

      2. Remove the peeling paper from the face of the No. 3 body outside moulding pad.

        Tech Tips

        After removing the peeling paper, keep the exposed adhesive free from foreign matter.

      3. Install the No. 3 body outside moulding pad.

        Tech Tips

        Press the No. 3 body outside moulding pad firmly to install it.
