WHEEL OPENING MOULDING REASSEMBLY

CAUTION / NOTICE / HINT

Tech Tips


  • Use the same procedure for the RH and LH sides.

  • The procedure listed below is for the LH side.

PROCEDURE


  1. INSTALL FRONT WHEEL OPENING EXTENSION PAD LH

    Tech Tips

    When installing the front wheel opening extension pad , heat the front fender moulding sub-assembly using a heat light.

    Standard
    Item Temperature
    Front Fender Moulding 20 to 30°C (68 to 86°F)
    Front Wheel Opening Extension Pad 20 to 30°C (68 to 86°F)

    Note

    Do not heat the front fender moulding sub-assembly excessively.


    1. Clean the front fender moulding sub-assembly surface.


      1. Using a heat light, heat the front fender moulding sub-assembly surface.

      2. Remove the double-sided tape from the front fender moulding sub-assembly.

      3. Wipe off any tape adhesive residue with cleaner.

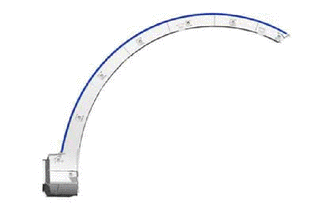

    2. A00YTZO

      Install a new front wheel opening extension pad.


      1. Using a heat light, heat the front fender moulding sub-assembly.

      2. Remove the peeling paper from the face of the front wheel opening extension pad.

        Tech Tips

        After removing the peeling paper, keep the exposed adhesive free from foreign matter.

      3. Install the front wheel opening extension pad.

        Tech Tips

        Press the front wheel opening extension pad firmly to install it.
