WHEEL OPENING MOULDING DISASSEMBLY

CAUTION / NOTICE / HINT

Tech Tips


  • Use the same procedure for the RH and LH sides.

  • The procedure listed below is for the LH side.

PROCEDURE


  1. REMOVE FRONT WHEEL NO. 3 OPENING EXTENSION PAD

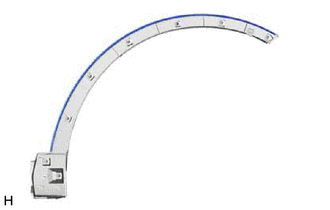

    1. A01PIFW

      Remove the front wheel No. 3 opening extension pad.

  2. REMOVE FRONT WHEEL NO. 5 OPENING EXTENSION PAD

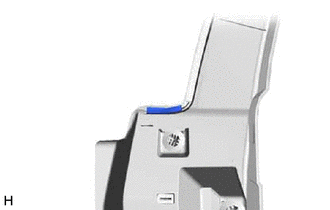

    1. A01PHIX

      Remove the front wheel No. 5 opening extension pad.

  3. REMOVE FRONT WHEEL NO. 1 OPENING EXTENSION PAD

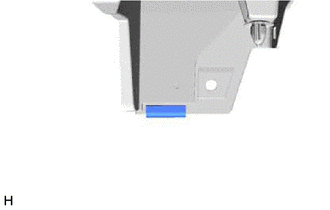

    1. A01PIEB

      Remove the front wheel No. 1 opening extension pad.

  4. REMOVE NO. 1 BODY OUTSIDE MOULDING PAD

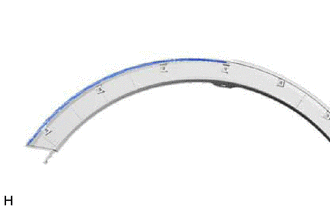

    1. A01PKST

      Remove the No. 1 body outside moulding pad.

  5. REMOVE NO. 2 BODY OUTSIDE MOULDING PAD

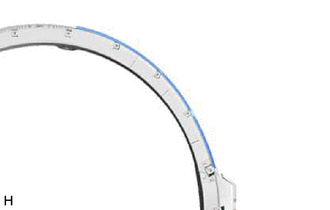

    1. A01PIHM

      Remove the No. 2 body outside moulding pad.

  6. REMOVE NO. 3 BODY OUTSIDE MOULDING PAD

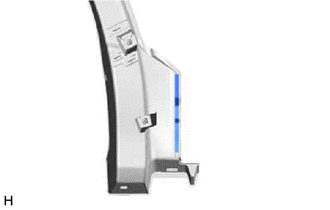

    1. A01PJDA

      Remove the No. 3 body outside moulding pad.
