WHEEL OPENING MOULDING INSTALLATION

CAUTION / NOTICE / HINT

Tech Tips


  • Use the same procedure for the RH and LH sides.

  • The procedure listed below is for the LH side.

PROCEDURE


  1. INSTALL CENTER QUARTER OUTSIDE MOULDING LH

    Tech Tips

    When installing the center quarter outside moulding LH, heat the vehicle body and center quarter outside moulding LH using a heat light.

    Standard
    Item Temperature
    Vehicle Body 40 to 60°C (104 to 140°F)
    Center Quarter Outside Moulding LH 20 to 30°C (68 to 86°F)

    Note

    Do not heat the vehicle body or center quarter outside moulding LH excessively.


    1. Clean the vehicle body surface.


      1. Using a heat light, heat the vehicle body surface.

      2. Remove the double-sided tape from the vehicle body surface.

      3. Wipe off any tape adhesive residue with cleaner.

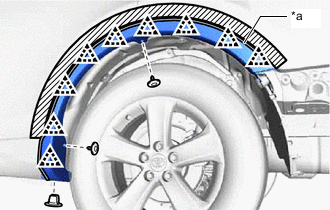

    2. A01V6Q4C02
      *a Double-sided Tape
      A01V9NY Protective Tape

      Install a new center quarter outside moulding LH.


      1. Remove the peeling paper from the face of the center quarter outside moulding LH.

        Tech Tips

        After removing the peeling paper, keep the exposed adhesive free from foreign matter.

      2. Attach the 9 clips to install the center quarter outside moulding LH.

        Tech Tips

        Press the center quarter outside moulding LH firmly to install it.

      3. Install the 2 clips and grommet.

  2. INSTALL REAR WHEEL HOUSE FRONT PLATE LH


    1. Install the screw.

    2. Attach the clip to install the rear wheel house front plate LH.

  3. INSTALL FRONT FENDER FRONT OUTSIDE MOULDING LH

    Tech Tips

    When installing the front fender front outside moulding LH, heat the vehicle body and front fender front outside moulding LH using a heat light.

    Standard
    Item Temperature
    Vehicle Body 40 to 60°C (104 to 140°F)
    Front Fender Front Outside Moulding LH 20 to 30°C (68 to 86°F)

    Note

    Do not heat the vehicle body or front fender front outside moulding LH excessively.


    1. Clean the vehicle body surface.


      1. Using a heat light, heat the vehicle body surface.

      2. Remove the double-sided tape from the vehicle body surface.

      3. Wipe off any tape adhesive residue with cleaner.

    2. A01V8S3C01
      *a Double-sided Tape
      *b Clip A
      *c Clip B
      A01V9NY Protective Tape

      Install the front fender front outside moulding LH.


      1. Remove the peeling paper from the face of the front fender front outside moulding LH.

        Tech Tips

        After removing the peeling paper, keep the exposed adhesive free from foreign matter.

      2. Attach the 8 clips to install the front fender front outside moulding LH.

        Tech Tips

        Press the front fender front outside moulding LH firmly to install it.

      3. Install the 5 grommets.

      4. Install the clip labeled A and clip labeled B.

  4. INSTALL FRONT FENDER MUDGUARD LH (w/ Mudguard)


    1. Install the front fender mudguard LH with the 3 screws.

    2. Install the clip.

  5. INSTALL REAR BUMPER COVER

    Click here

  6. INSTALL FRONT BUMPER COVER

    Click here
