REAR DOOR OUTSIDE MOULDING DISASSEMBLY

CAUTION / NOTICE / HINT

Tech Tips


  • Use the same procedure for the RH and LH sides.

  • The procedure listed below is for the LH side.

PROCEDURE

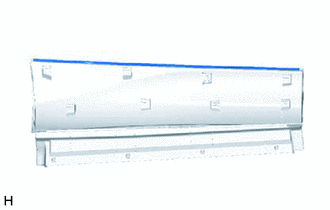

  1. REMOVE REAR DOOR UPPER OUTSIDE MOULDING PAD


    1. A01PI27

      Remove the rear door upper outside moulding pad.

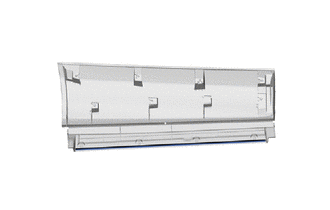

  2. REMOVE REAR DOOR NO. 1 MOULDING PAD


    1. A01PJG4

      Remove the rear door No. 1 moulding pad.

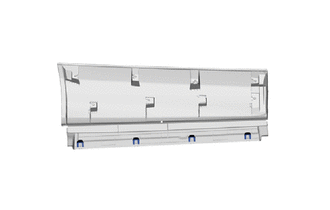

  3. REMOVE REAR DOOR REAR OUTSIDE MOULDING PAD


    1. A01PIWL

      Remove the 4 rear door rear outside moulding pad.

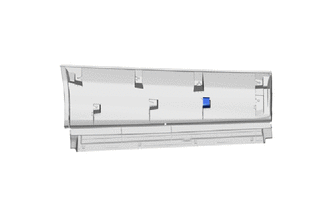

  4. REMOVE NO. 2 OUTSIDE MOULDING SEAL


    1. A01PIX1

      Remove the No. 2 outside moulding seal.
