REAR DOOR OUTSIDE MOULDING REMOVAL

CAUTION / NOTICE / HINT

Tech Tips


  • Use the same procedures for the RH side and LH side.

  • The procedures listed below are for the LH side.

PROCEDURE


  1. REMOVE REAR DOOR OUTSIDE MOULDING LH

    Tech Tips

    When removing the rear door outside moulding LH, heat the rear door panel and rear door outside moulding LH moulding using a heat light.

    Standard
    Item Temperature
    Rear Door Panel 40 to 60°C (104 to 140°F)
    Rear Door Outside Moulding LH 20 to 30°C (68 to 86°F)

    Note

    Do not heat the rear door panel and rear door outside moulding LH excessively.


    1. A01PHFL

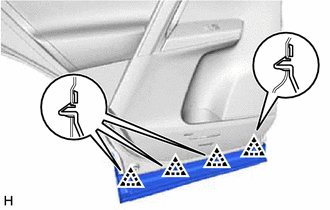

      Detach the 4 clips.

    2. A01PI1X

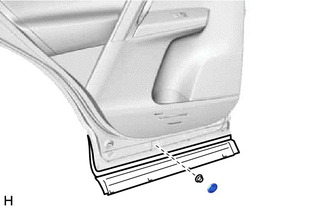

      Remove the hole plug and nut.

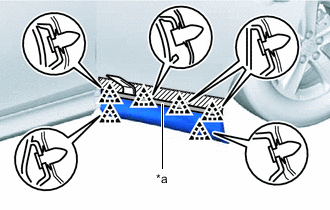

    3. A01PJW0C01
      *a Double-sided Tape
      A01PK3X Protective Tape

      Put protective tape around the rear door outside moulding LH.

    4. Using moulding remover D, remove the double-sided tape to detach the 6 clips and remove the rear door outside moulding LH.

      Note

      Be careful not to damage the vehicle body.
