REAR DOOR OUTSIDE MOULDING REMOVAL

CAUTION / NOTICE / HINT

Tech Tips


  • Use the same procedures for the RH side and LH side.

  • The procedures listed below are for the LH side.

PROCEDURE


  1. REMOVE REAR DOOR LOWER OUTSIDE MOULDING SUB-ASSEMBLY LH

    Tech Tips

    When removing the rear door lower outside moulding, heat the rear door panel and rear door lower outside moulding using a heatlight.

    Standard
    Item Temperature
    Rear Door Panel 40 to 60°C (104 to 140°F)
    Rear Door Lower Outside Moulding 20 to 30°C (68 to 86°F)

    Note

    Do not heat the rear door panel and rear door lower outside moulding excessively.

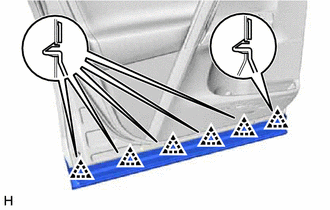

    1. A00YSAY

      Detach the 6 clips.

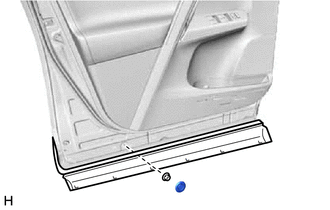

    2. A00YWD1

      Remove the hole plug and nut.

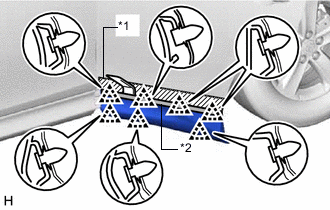

    3. A00YXBNC01
      *1 Protective Tape
      *2 Double-side Tape

      Put protective tape around the rear door lower outside moulding sub-assembly LH.

    4. Using moulding remover D, remove the double-side tape to detach the 7 clips and remove the rear door lower outside moulding sub-assembly LH.

      Note

      Be careful not to damage the vehicle body.
