FRONT DOOR OUTSIDE MOULDING REASSEMBLY

CAUTION / NOTICE / HINT

PROCEDURE

1. INSTALL FRONT DOOR OUTSIDE MOULDING UPPER PAD

   Tech Tips

   When installing the front door outside moulding upper pad, heat the front door outside moulding using a heat light.

   Standard
   Item Temperature Front Door Outside Moulding 20 to 30°C (68 to 86°F)

   Note

   Do not heat the front door outside moulding excessively.




   1. When using a new front door outside moulding:




      1. Clean the surface of a new front door outside moulding.

      2. Using a heat light, heat the front door outside moulding surface.

   2. When reusing the front door outside moulding:




      1. Using a heat light, heat the front door outside moulding surface.

      2. Remove the double-sided tape from the front door outside moulding.

      3. Wipe off any tape adhesive residue with cleaner.

   3.

      Install a new front door outside moulding upper pad.




      1. Using a heat light, heat the front door outside moulding.

      2. Remove the peeling paper from the face of the front door outside moulding upper pad.

         Tech Tips

         After removing the peeling paper, keep the exposed adhesive free from foreign matter.

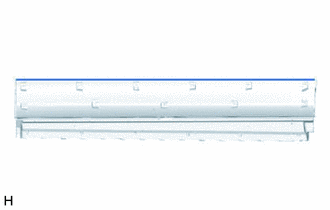

      3. Install the front door outside moulding upper pad as shown in the illustration.
