FRONT DOOR OUTSIDE MOULDING REMOVAL

CAUTION / NOTICE / HINT

Tech Tips


  • Use the same procedures for the RH side and LH side.

  • The procedures listed below are for the LH side.

PROCEDURE


  1. REMOVE FRONT DOOR LOWER OUTSIDE MOULDING LH

    Tech Tips

    When removing the front door lower outside moulding LH, heat the front door panel and front door lower outside moulding LH using a heat light.

    Standard
    Item Temperature
    Front Door Panel 40 to 60°C (104 to 140°F)
    Front Door Lower Outside Moulding LH 20 to 30°C (68 to 86°F)

    Note

    Do not heat the front door panel and front door lower outside moulding LH excessively.

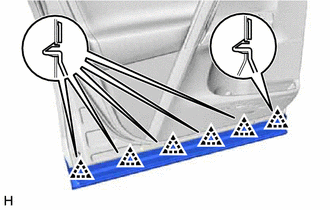

    1. A01QTFJ

      Detach the 6 clips.

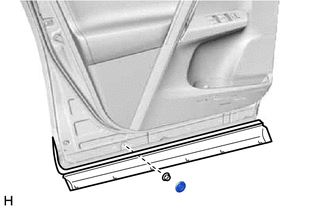

    2. A01QSU7

      Remove the hole plug and nut.

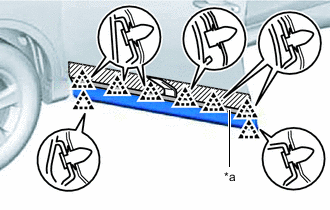

    3. A01QT9WC01
      *a Double-sided Tape
      A01QSVW Protective Tape

      Put protective tape around the front door lower outside moulding LH.

    4. Using moulding remover D, remove the double-sided tape to detach the 8 clips and remove the front door lower outside moulding LH.

      Note

      Be careful not to damage the vehicle body.
