FRONT DOOR OUTSIDE MOULDING REMOVAL

CAUTION / NOTICE / HINT

Tech Tips


  • Use the same procedures for the RH side and LH side.

  • The procedures listed below are for the LH side.

PROCEDURE


  1. REMOVE FRONT DOOR LOWER OUTSIDE MOULDING SUB-ASSEMBLY LH

    Tech Tips

    When removing the front door lower outside moulding, heat the front door panel and front door lower outside moulding using a heatlight.

    Standard
    Item Temperature
    Front Door Panel 40 to 60°C (104 to 140°F)
    Front Door Lower Outside Moulding 20 to 30°C (68 to 86°F)

    Note

    Do not heat the front door panel and front door lower outside moulding excessively.

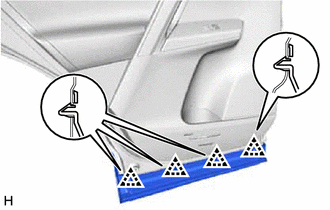

    1. A00YXD2

      Detach the 4 clips.

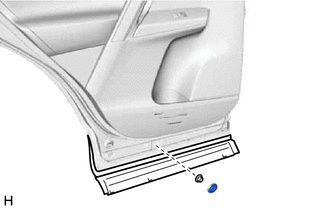

    2. A00YXLX

      Remove the hole plug and nut.

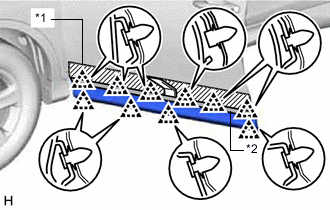

    3. A00YW8NC01
      *1 Protective Tape
      *2 Double-side Tape

      Put protective tape around the front door lower outside moulding sub-assembly LH.

    4. Detach the 10 clips and remove the double-side tape to remove the front door lower outside moulding sub-assembly LH.
