FRONT DOOR OUTSIDE MOULDING DISASSEMBLY

CAUTION / NOTICE / HINT

Tech Tips


  • Use the same procedure for the RH and LH sides.

  • The procedure listed below is for the LH side.

PROCEDURE


  1. REMOVE FRONT DOOR UPPER OUTSIDE MOULDING PAD

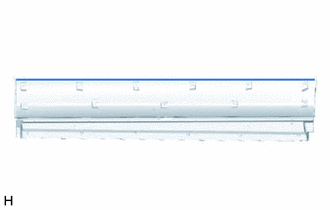

    1. A01PHL0

      Remove the front door upper outside moulding pad.

  2. REMOVE FRONT DOOR OUTSIDE MOULDING PAD

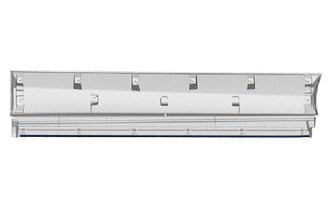

    1. A01PKUF

      Remove the front door outside moulding pad.

  3. REMOVE FRONT DOOR REAR OUTSIDE MOULDING PAD

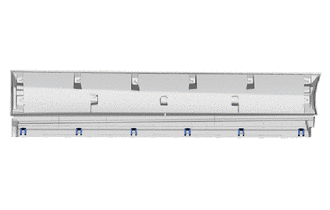

    1. A01PKS5

      Remove the 6 front door rear outside moulding pads.

  4. REMOVE NO. 2 OUTSIDE MOULDING SEAL

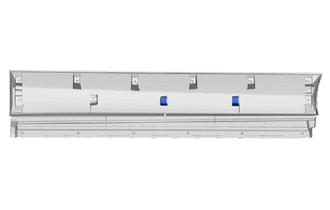

    1. A01PKWP

      Remove the 2 No. 2 outside moulding seals.
