NAME PLATE INSTALLATION

PROCEDURE


  1. INSTALL BACK DOOR NAME PLATE

    Tech Tips

    When installing the back door name plate, heat the back door panel and back door name plate using a heat light.

    Standard
    Item Temperature
    Back Door Panel 40 to 60°C (104 to 140°F)
    Back Door Name Plate 20 to 30°C (68 to 86°F)

    Note

    Do not heat the back door panel or back door name plate excessively.


    1. Clean the back door panel surface.


      1. Using a heat light, heat the back door panel surface.

      2. Remove the double-sided tape from the back door panel.

      3. Wipe off any tape adhesive residue with cleaner.

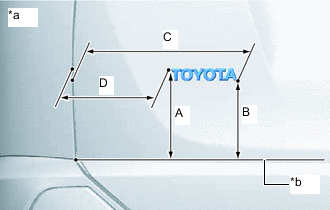

    2. A01QQ9IC01
      *a Reference Values
      *b Horizontal Line

      Install a new back door name plate.


      1. Using a heat light, heat the back door panel and a new back door name plate.

      2. Remove the peeling paper from the face of the back door name plate.

        Tech Tips

        After removing the peeling paper, keep the exposed adhesive free from foreign matter.

      3. Install the back door name plate in the position shown in the illustration.

        Tech Tips

        Press the back door name plate firmly to install it.

        Standard
        Area Specified Condition
        A 170.2 mm (6.70 in.)
        B 149.5 mm (5.89 in.)
        C 332.0 mm (13.1 in.)
        D 203.0 mm (7.99 in.)

  2. INSTALL NO. 1 BACK DOOR EMBLEM

    Tech Tips

    When installing the No. 1 back door emblem, heat the back door panel and No. 1 back door emblem using a heat light.

    Standard
    Item Temperature
    Back Door Panel 40 to 60°C (104 to 140°F)
    No. 1 Back Door Emblem 20 to 30°C (68 to 86°F)

    Note

    Do not heat the back door panel or No. 1 back door emblem excessively.


    1. Clean the back door panel surface.


      1. Using a heat light, heat the back door panel surface.

      2. Remove the double-sided tape from the back door panel.

      3. Wipe off any tape adhesive residue with cleaner.

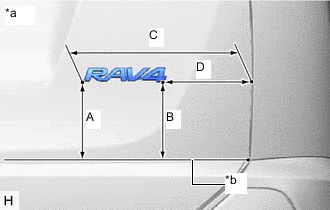

    2. A01QOJQC01
      *a Reference Values
      *b Horizontal Line

      Install a new No. 1 back door emblem.


      1. Using a heat light, heat the back door panel and a new No. 1 back door emblem.

      2. Remove the peeling paper from the face of the No. 1 back door emblem.

        Tech Tips

        After removing the peeling paper, keep the exposed adhesive free from foreign matter.

      3. Install the No. 1 back door emblem in the position shown in the illustration.

        Tech Tips

        Press the No. 1 back door emblem firmly to install it.

        Standard
        Area Specified Condition
        A 149.2 mm (5.87 in.)
        B 146.8 mm (5.78 in.)
        C 341.2 mm (13.4 in.)
        D 188.2 mm (7.41 in.)

  3. INSTALL NO. 4 BACK DOOR NAME PLATE

    Tech Tips

    When installing the No. 4 back door name plate, heat the back door panel and No. 4 back door name plate using a heat light.

    Standard
    Item Temperature
    Back Door Panel 40 to 60°C (104 to 140°F)
    No. 4 Back Door Name Plate 20 to 30°C (68 to 86°F)

    Note

    Do not heat the back door panel or No. 4 back door name plate excessively.


    1. Clean the back door panel surface.


      1. Using a heat light, heat the back door panel surface.

      2. Remove the double-sided tape from the back door panel.

      3. Wipe off any tape adhesive residue with cleaner.

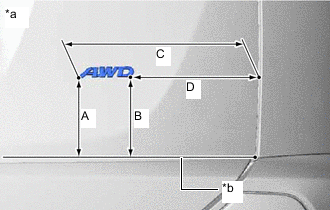

    2. A01QUF2C02
      *a Reference Values
      *b Horizontal Line

      for Type A:

      Install a new No. 4 back door name plate.


      1. Using a heat light, heat the back door panel and a new No. 4 back door name plate.

      2. Remove the peeling paper from the face of the No. 4 back door name plate.

        Tech Tips

        After removing the peeling paper, keep the exposed adhesive free from foreign matter.

      3. Install the No. 4 back door name plate in the position shown in the illustration.

        Tech Tips

        Press the No. 4 back door name plate firmly to install it.

        Standard
        Area Specified Condition
        A 122.1 mm (4.81 in.)
        B 122.9 mm (4.84 in.)
        C 299.2 mm (11.8 in.)
        D 211.2 mm (8.31 in.)

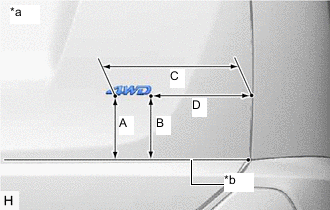

    3. A01QOJGC01
      *a Reference Values
      *b Horizontal Line

      for Type B:

      Install a new No. 4 back door name plate.


      1. Using a heat light, heat the back door panel and a new No. 4 back door name plate.

      2. Remove the peeling paper from the face of the No. 4 back door name plate.

        Tech Tips

        After removing the peeling paper, keep the exposed adhesive free from foreign matter.

      3. Install the No. 4 back door name plate in the position shown in the illustration.

        Tech Tips

        Press the No. 4 back door name plate firmly to install it.

        Standard
        Area Specified Condition
        A 122.7 mm (4.83 in.)
        B 123.0 mm (4.84 in.)
        C 279.7 mm (11.0 in.)
        D 211.5 mm (8.33 in.)
