REAR BUMPER DISASSEMBLY

PROCEDURE

1. REMOVE NO. 2 LUGGAGE ROOM WIRE (w/ TOYOTA Parking Assist-sensor System)

   Click here

2. REMOVE NO. 3 ULTRASONIC SENSOR (w/ TOYOTA Parking Assist-sensor System)

   Click here

3. REMOVE REFLEX REFLECTOR ASSEMBLY LH (w/ Reflex Reflector Assembly)




   1.

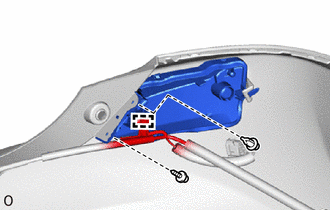

      Remove the screw and clip.

   2. Detach the clamp.

   3.

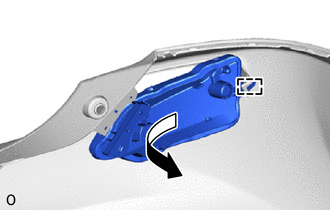

      Detach the guide and remove the reflex reflector as shown in the illustration.

4. REMOVE REFLEX REFLECTOR ASSEMBLY RH (w/ Reflex Reflector Assembly)

   Tech Tips

   Use the same procedure described for the LH side.

5. REMOVE REAR FOG LIGHT ASSEMBLY LH (w/ Rear Fog Light)

   Click here

6. REMOVE REAR FOG LIGHT ASSEMBLY RH (w/ Rear Fog Light)

   Tech Tips

   Use the same procedure described for the LH side.
