REAR BUMPER REMOVAL

PROCEDURE


  1. REMOVE REAR QUARTER PANEL MUDGUARD LH (w/ Mudguard)

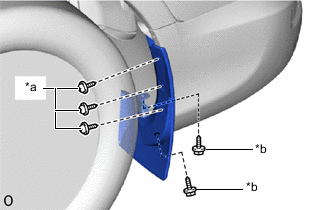

    1. A01QR32C03
      *a Screw A
      *b Screw B

      Remove the 2 screws labeled B.

    2. Remove the 3 screws labeled A and rear quarter panel mudguard LH.

  2. REMOVE REAR QUARTER PANEL MUDGUARD RH (w/ Mudguard)

    Tech Tips

    Use the same procedure described for the LH side.

  3. REMOVE REAR BUMPER COVER

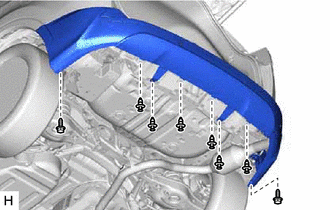

    1. A01QOCJ

      Remove the 6 clips.

    2. Remove the 2 screws.

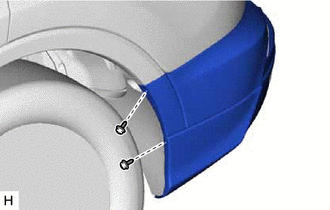

    3. A01QRCM

      w/o Mudguard


      1. Remove the 2 screws.

        Tech Tips

        Use the same procedure for the other side.

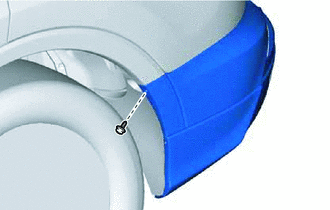

    4. A01QPHU

      w/ Mudguard


      1. Remove the screws.

        Tech Tips

        Use the same procedure for the other side.

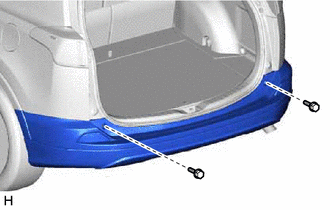

    5. A01QTIL

      Remove the 2 bolts.

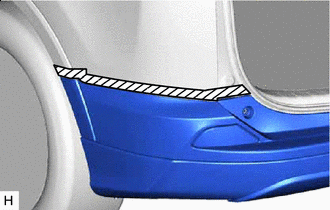

    6. A01QRK8C01
      A01QSVW Protective Tape

      Put protective tape around the rear bumper cover.

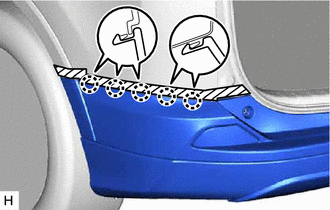

    7. A01QPDL

      Detach the 5 claws.

      Tech Tips

      Use the same procedure to detach the claw on the other side.

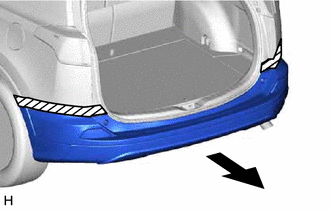

    8. A01QORM

      Remove the rear bumper cover as shown in the illustration.

  4. REMOVE NO. 2 LUGGAGE COMPARTMENT SERVICE COVER PROTECTOR


    1. Remove the 2 clips and No. 2 luggage compartment service cover protector.

  5. REMOVE NO. 1 LUGGAGE COMPARTMENT SERVICE COVER PROTECTOR

    Tech Tips

    Use the same procedure described for the LH side.

  6. REMOVE REAR BUMPER REINFORCEMENT SUB-ASSEMBLY

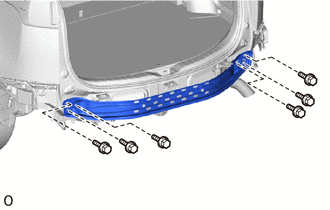

    1. A01QPCE

      for Step Type:

      Remove the 6 bolts and rear bumper reinforcement sub-assembly.

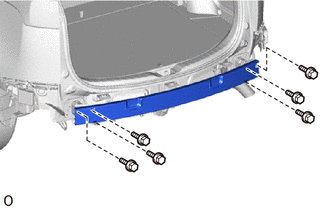

    2. A01QUPD

      w/ TOYOTA Parking Assist-sensor System:

      Remove the 6 bolts and rear bumper reinforcement sub-assembly.

    3. A01QPR3

      for Standard Type:

      Remove the 6 bolts and rear bumper reinforcement sub-assembly.

  7. REMOVE REAR BUMPER ARM SUB-ASSEMBLY LH

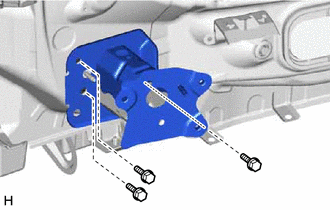

    1. A01QSFP

      Remove the 3 bolts and rear bumper arm sub-assembly LH.

  8. REMOVE REAR BUMPER ARM SUB-ASSEMBLY RH

    Tech Tips

    Use the same procedure described for the LH side.

  9. REMOVE REAR BUMPER SIDE SUPPORT LH

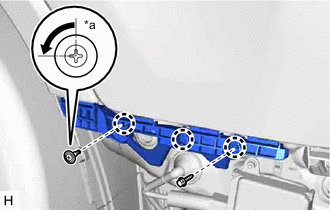

    1. A01QOXYC01
      *a 90°

      Using a screwdriver, turn the clip 90° and remove the clip.

    2. Remove the screw.

    3. Detach the 3 claws and rear bumper side support LH.

  10. REMOVE REAR BUMPER SIDE SUPPORT RH

    Tech Tips

    Use the same procedure described for the LH side.

  11. REMOVE REAR BUMPER UPPER RETAINER LH

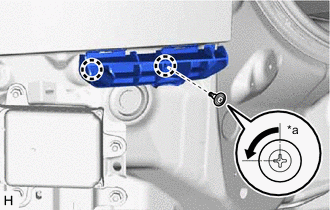

    1. A01QUKJC01
      *a 90°

      Using a screwdriver, turn the clip 90° and remove the clip.

    2. Detach the 2 claws and rear bumper upper retainer LH.

  12. REMOVE REAR BUMPER UPPER RETAINER RH

    Tech Tips

    Use the same procedure described for the LH side.
