REAR BUMPER COMPONENTS

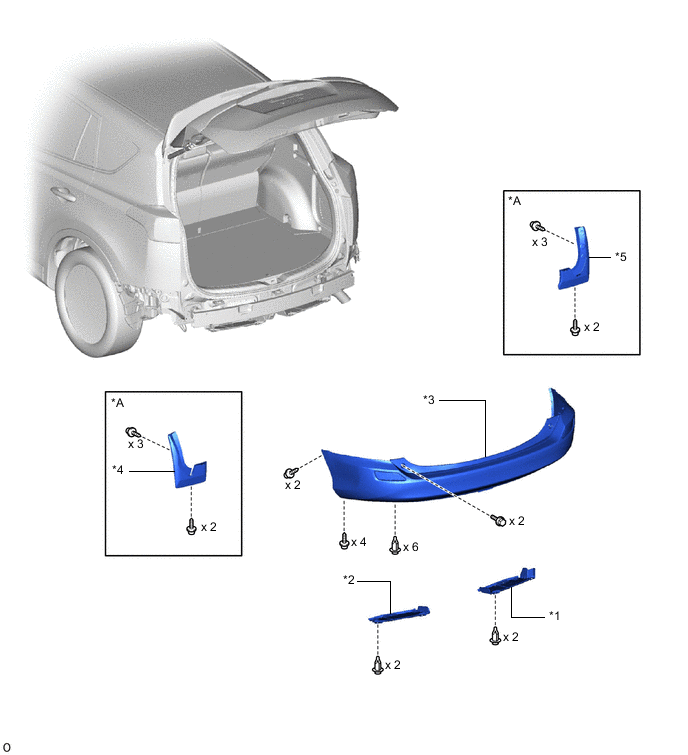

ILLUSTRATION
| *A | w/ Mudguard | - | - |
| *1 | NO. 1 LUGGAGE COMPARTMENT SERVICE COVER PROTECTOR | *2 | NO. 2 LUGGAGE COMPARTMENT SERVICE COVER PROTECTOR |
| *3 | REAR BUMPER COVER | *4 | REAR QUARTER PANEL MUDGUARD LH |
| *5 | REAR QUARTER PANEL MUDGUARD RH | - | - |

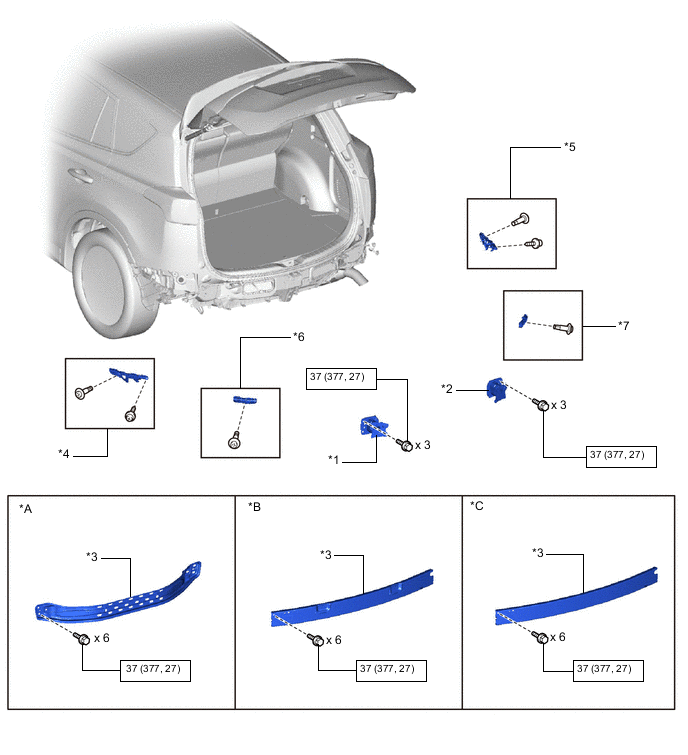

ILLUSTRATION
| *A | for Step Type | *B | w/ TOYOTA Parking Assist-sensor System |
| *C | for Standard Type | - | - |
| *1 | REAR BUMPER ARM SUB-ASSEMBLY LH | *2 | REAR BUMPER ARM SUB-ASSEMBLY RH |
| *3 | REAR BUMPER REINFORCEMENT SUB-ASSEMBLY | *4 | REAR BUMPER SIDE SUPPORT LH |
| *5 | REAR BUMPER SIDE SUPPORT RH | *6 | REAR BUMPER UPPER RETAINER LH |
| *7 | REAR BUMPER UPPER RETAINER RH | - | - |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

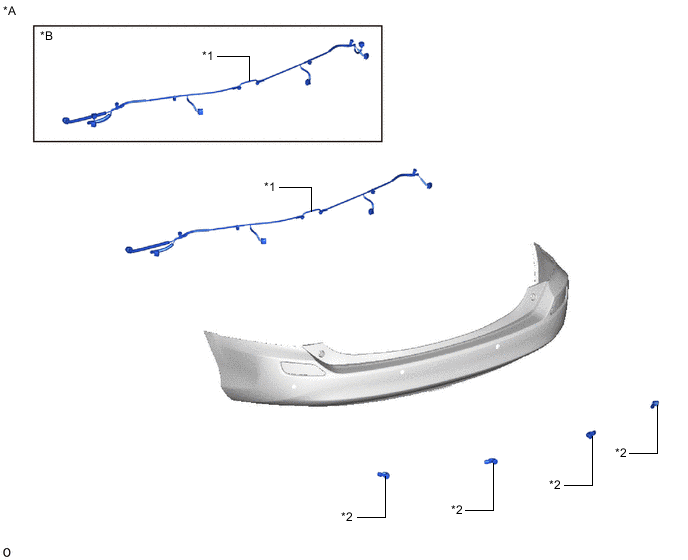

ILLUSTRATION
| *A | w/ TOYOTA Parking Assist-sensor System | *B | w/ Rear Fog Light |
| *1 | NO. 2 LUGGAGE ROOM WIRE | *2 | NO. 3 ULTRASONIC SENSOR |

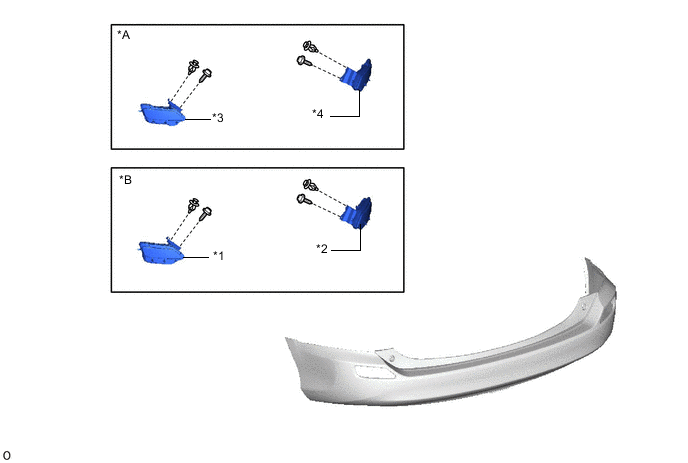

ILLUSTRATION
| *A | w/ Reflex Reflector Assembly | *B | w/ Rear Fog Light |
| *1 | REAR FOG LIGHT ASSEMBLY LH | *2 | REAR FOG LIGHT ASSEMBLY RH |
| *3 | REFLEX REFLECTOR ASSEMBLY LH | *4 | REFLEX REFLECTOR ASSEMBLY RH |
