REAR BUMPER REMOVAL

PROCEDURE


  1. REMOVE REAR QUARTER PANEL MUDGUARD LH (w/ Mudguard)


    1. A00YV88C01
      *1 Screw A
      *2 Screw B

      Remove the 2 screws labeled B.

    2. Remove the 3 screws labeled A and rear quarter panel mudguard LH.

  2. REMOVE REAR QUARTER PANEL MUDGUARD RH (w/ Mudguard)

    Tech Tips

    Use the same procedure described for the LH side.

  3. REMOVE REAR BUMPER COVER

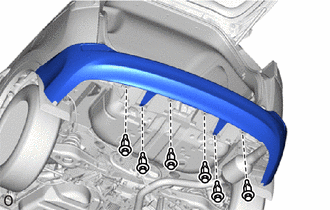

    1. A00YXOB

      Remove the 6 clips.

    2. A00YUC8C01
      *1 Screw A
      *2 Screw B

      Remove the 2 screws labeled A and screw labeled B.

      Tech Tips

      Use the same procedure to remove the screw on the other side.

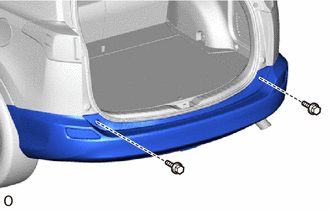

    3. A00YRNX

      Remove the 2 bolts.

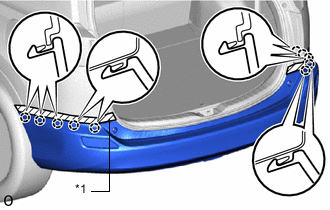

    4. A00YUU2C01
      *1 Protective Tape

      Put protective tape around the rear bumper cover.

    5. Detach the 10 claws.

  4. REMOVE NO. 2 LUGGAGE COMPARTMENT SERVICE COVER PROTECTOR

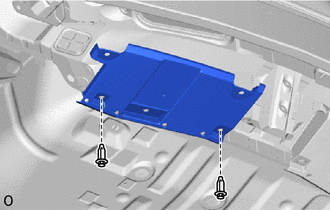

    A00YWD6

    1. Remove the 2 clips and No. 2 luggage compartment service cover protector.

  5. REMOVE NO. 1 LUGGAGE COMPARTMENT SERVICE COVER PROTECTOR

    Tech Tips

    Use the same procedure described for the LH side.

  6. REMOVE REAR BUMPER REINFORCEMENT SUB-ASSEMBLY

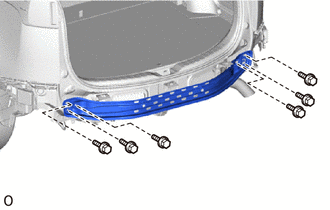

    1. A00YWWR

      for Step Type:

      Remove the 6 bolts and rear bumper reinforcement sub-assembly.

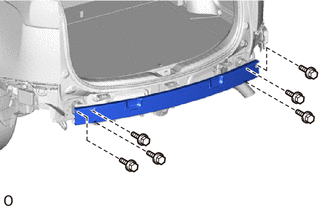

    2. A00YVT8

      w/ TOYOTA Parking Assist-sensor System:

      Remove the 6 bolts and rear bumper reinforcement sub-assembly.

    3. A00YWH9

      for Standard Type:

      Remove the 6 bolts and rear bumper reinforcement sub-assembly.

  7. REMOVE REAR BUMPER ARM SUB-ASSEMBLY LH

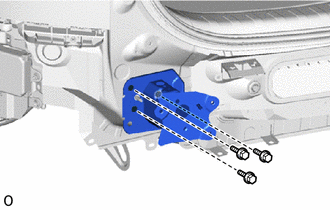

    1. A00YTP7

      Remove the 3 bolts and rear bumper arm sub-assembly LH.

  8. REMOVE REAR BUMPER ARM SUB-ASSEMBLY RH

    Tech Tips

    Use the same procedure described for the LH side.

  9. REMOVE REAR BUMPER SIDE SUPPORT LH

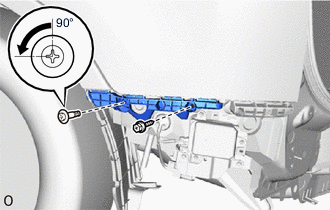

    1. A00YSN1E01

      Using a screwdriver, turn the clip 90° and remove the clip.

    2. Remove the screw and rear bumper side support.

  10. REMOVE REAR BUMPER SIDE SUPPORT RH

    Tech Tips

    Use the same procedure described for the LH side.

  11. REMOVE REAR BUMPER UPPER RETAINER LH

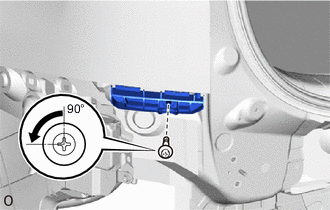

    1. A00YW89E01

      Using a screwdriver, turn the clip 90° and remove the clip and rear bumper upper retainer LH.

  12. REMOVE REAR BUMPER UPPER RETAINER RH

    Tech Tips

    Use the same procedure described for the LH side.
