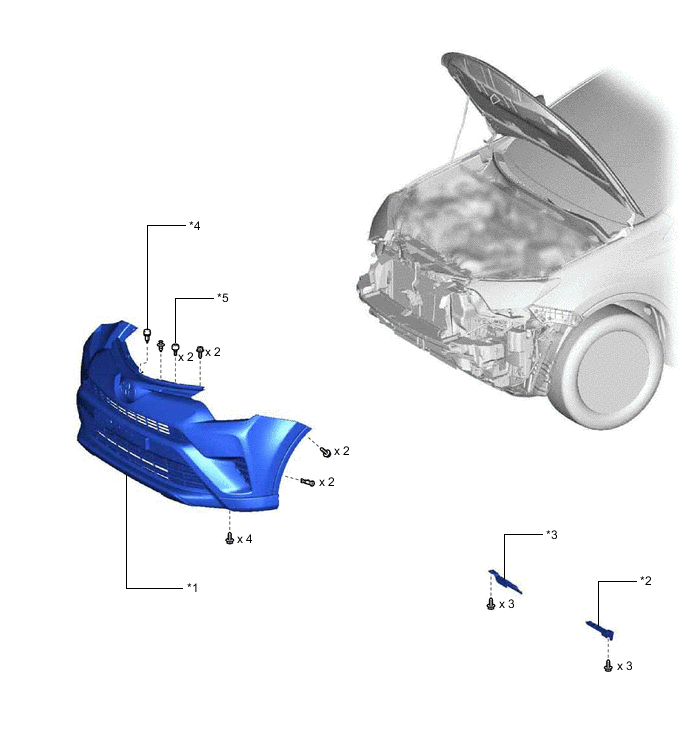

FRONT BUMPER COMPONENTS
ILLUSTRATION
| *1 | FRONT BUMPER COVER | *2 | FRONT FENDER FRONT SPLASH SHIELD LH |
| *3 | FRONT FENDER FRONT SPLASH SHIELD RH | *4 | CENTER HOOD CUSHION |
| *5 | RADIATOR GRILLE PROTECTOR | - | - |

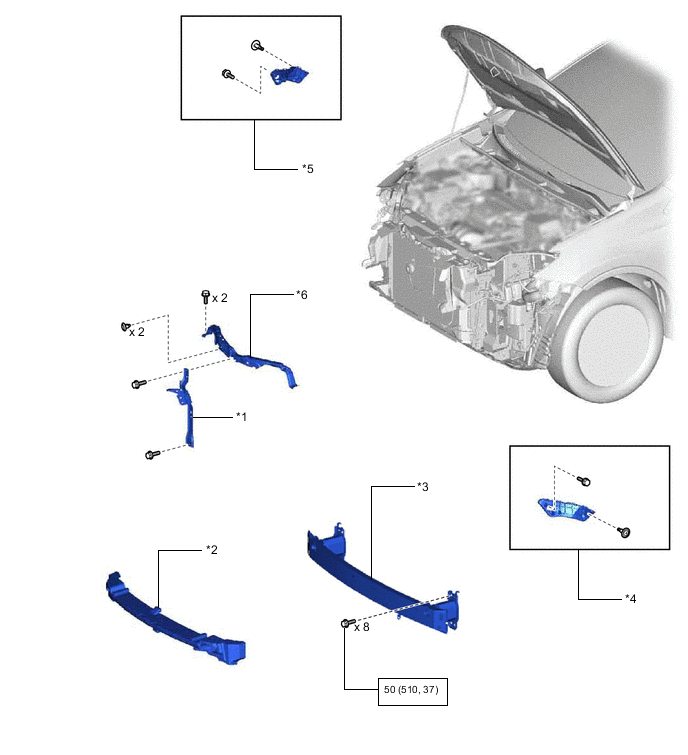

ILLUSTRATION
| *1 | FRONT BUMPER CENTER STAY SUB-ASSEMBLY | *2 | FRONT BUMPER NO. 2 ENERGY ABSORBER |
| *3 | FRONT BUMPER REINFORCEMENT | *4 | FRONT BUMPER SIDE RETAINER LH |
| *5 | FRONT BUMPER SIDE RETAINER RH | *6 | FRONT BUMPER UPPER REINFORCEMENT SUB-ASSEMBLY |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

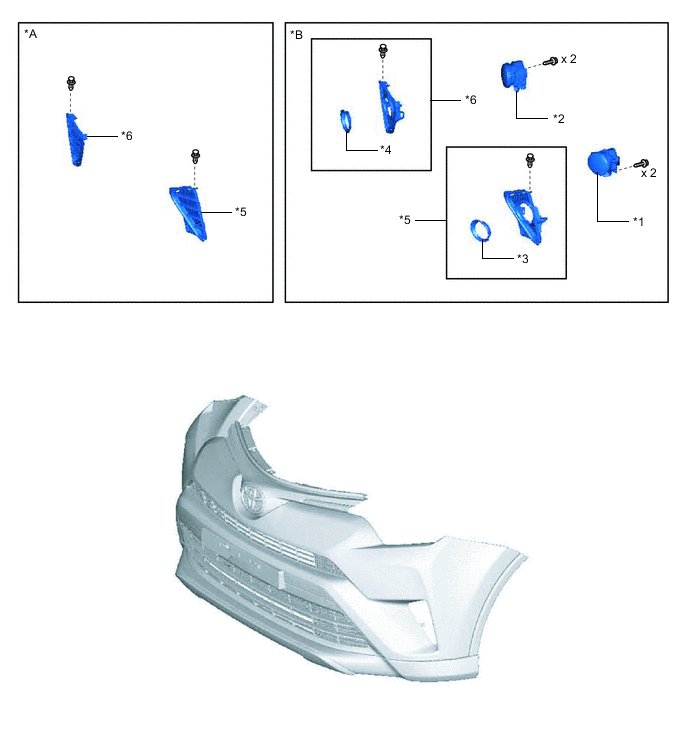

ILLUSTRATION
| *A | w/o Fog Light | *B | w/ Fog Light |
| *1 | FOG LIGHT ASSEMBLY LH | *2 | FOG LIGHT ASSEMBLY RH |
| *3 | FRONT BUMPER EXTENSION MOULDING LH | *4 | FRONT BUMPER EXTENSION MOULDING RH |
| *5 | FRONT BUMPER HOLE COVER LH | *6 | FRONT BUMPER HOLE COVER RH |
ILLUSTRATION
| *A | w/ Headlight Cleaner System | - | - |
| *1 | HEADLIGHT CLEANER HOSE | *2 | HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY LH |
| *3 | HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY RH | *4 | TYPE 1 HEADLIGHT WASHER NOZZLE SUB-ASSEMBLY LH |
| *5 | TYPE 1 HEADLIGHT WASHER NOZZLE SUB-ASSEMBLY RH | *6 | HEADLIGHT CLEANER CLAMP B |

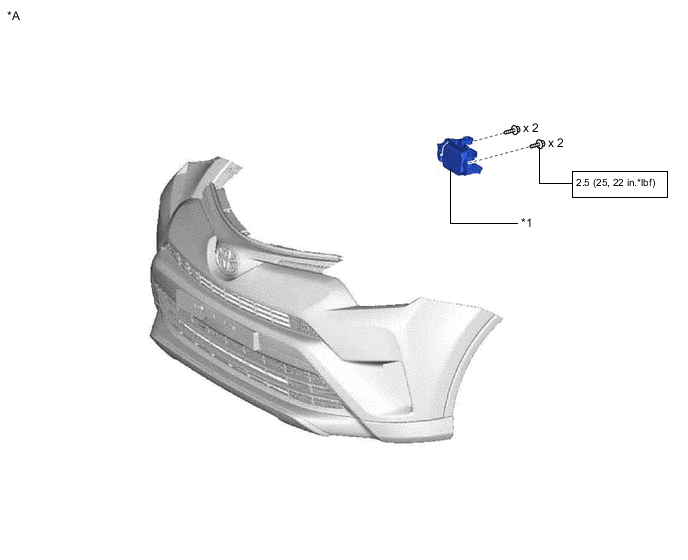

ILLUSTRATION
| *A | w/ Pre-crash Safety System | - | - |
| *1 | MILLIMETER WAVE RADAR SENSOR ASSEMBLY | - | - |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

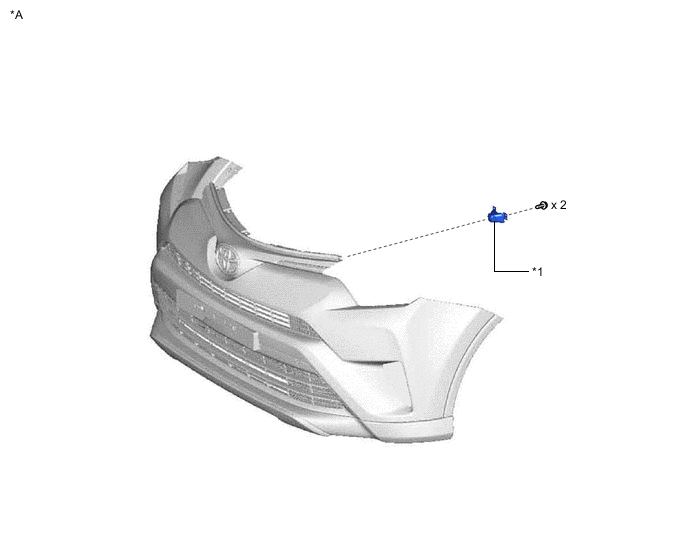

ILLUSTRATION
| *A | w/ Panoramic View Monitor System | - | - |
| *1 | FRONT TELEVISION CAMERA ASSEMBLY | - | - |

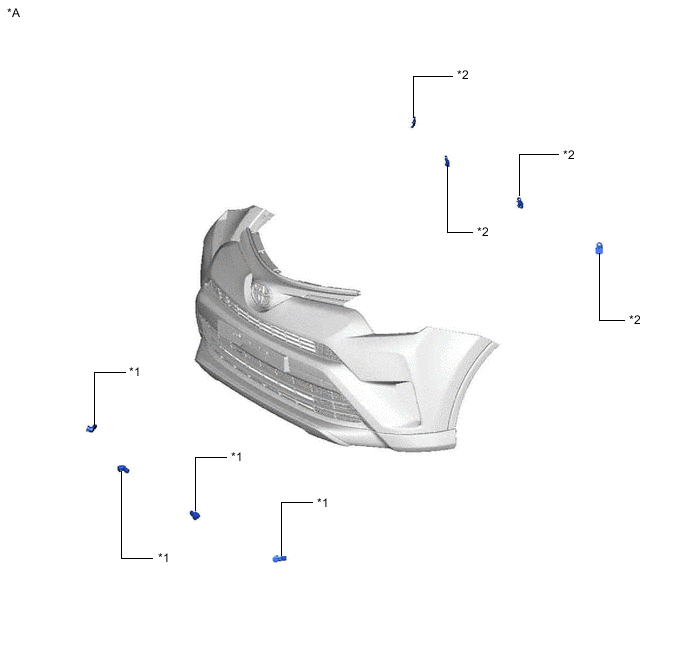

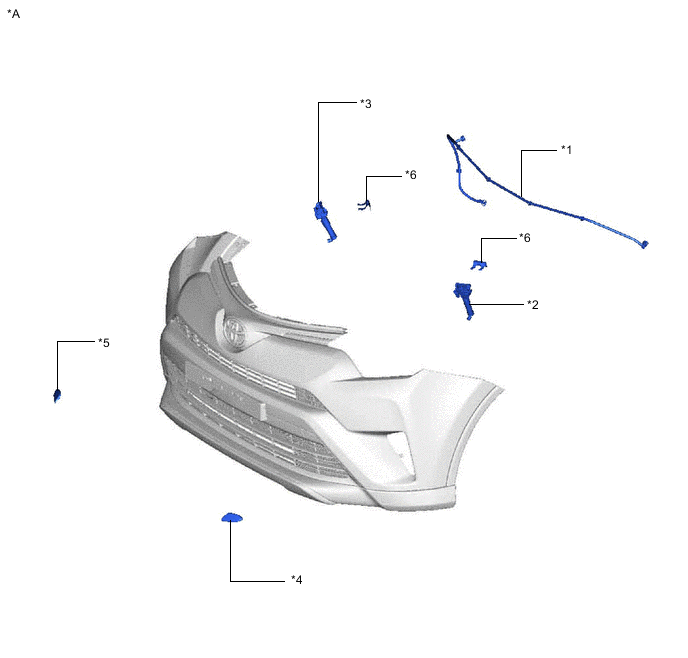

ILLUSTRATION
| *A | w/ TOYOTA Parking Assist-sensor System | - | - |
| *1 | NO. 1 ULTRASONIC SENSOR | *2 | ULTRASONIC SENSOR CLIP |

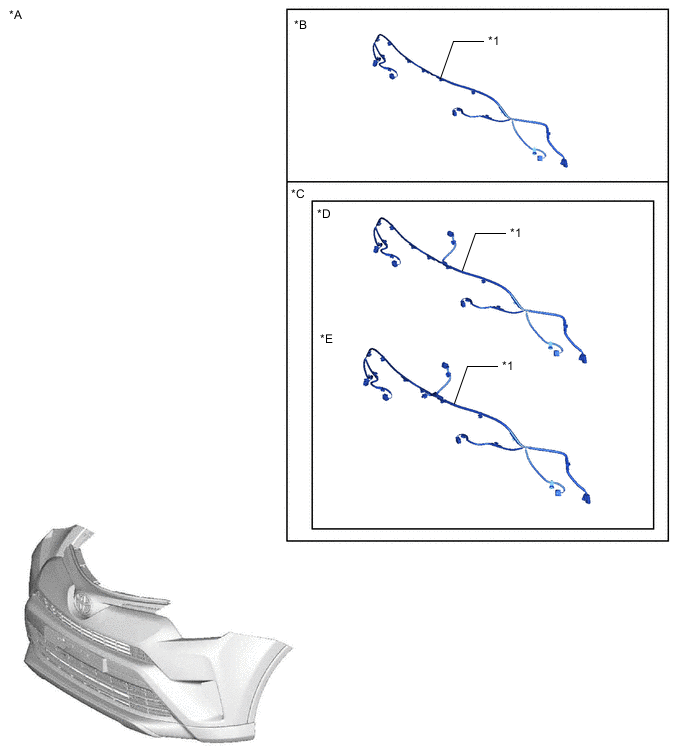

ILLUSTRATION
| *A | w/ TOYOTA Parking Assist-sensor System | *B | w/o Pre-crash Safety System |
| *C | w/ Pre-crash Safety System | *D | w/o Panoramic View Monitor System |
| *E | w/ Panoramic View Monitor System | - | - |
| *1 | NO. 3 ENGINE ROOM WIRE | - | - |

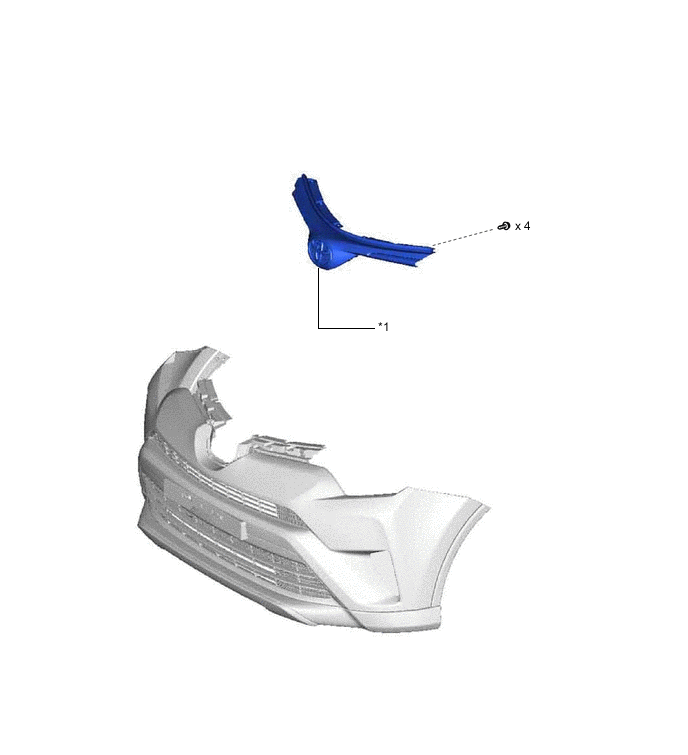

ILLUSTRATION
| *1 | RADIATOR GRILLE SUB-ASSEMBLY | - | - |

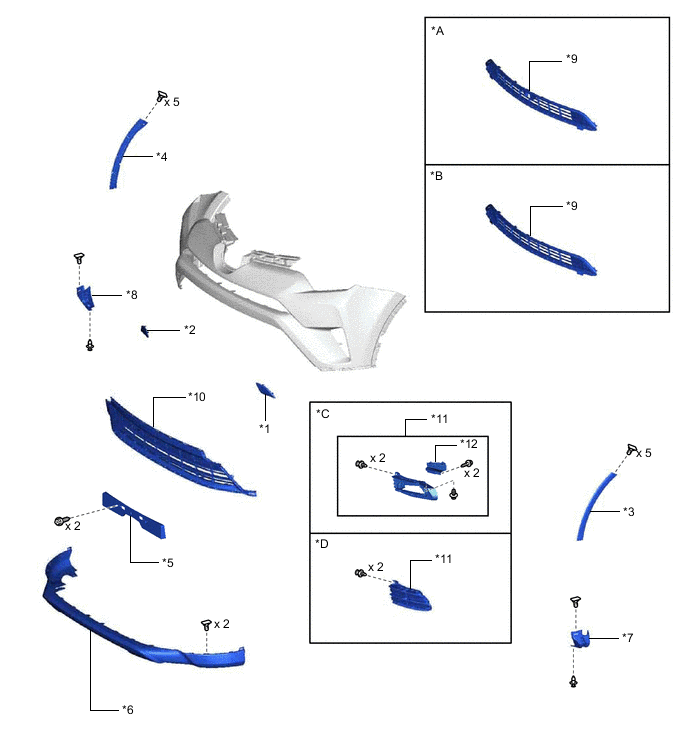

ILLUSTRATION
| *A | w/ Panoramic View Monitor System | *B | w/o Panoramic View Monitor System |
| *C | for Automatic Transaxle (U660F) | *D | except Automatic Transaxle (U660F) |
| *1 | FRONT BUMPER ARM HOLE COVER LH | *2 | FRONT BUMPER ARM HOLE COVER RH |
| *3 | FRONT BUMPER EXTENSION LH | *4 | FRONT BUMPER EXTENSION RH |
| *5 | FRONT BUMPER EXTENTION MOUNTING BRACKET | *6 | FRONT BUMPER GUARD |
| *7 | FRONT BUMPER GUARD PAD LH | *8 | FRONT BUMPER GUARD PAD RH |
| *9 | LOWER NO. 1 RADIATOR GRILLE | *10 | LOWER NO. 2 RADIATOR GRILLE |
| *11 | LOWER RADIATOR GRILLE LH | *12 | DUCT |

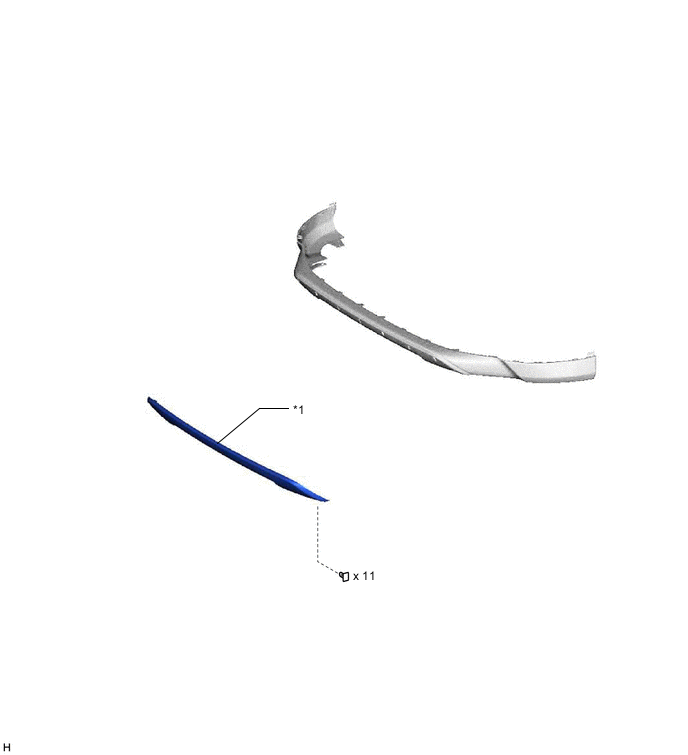

ILLUSTRATION
| *1 | FRONT BUMPER MOULDING | - | - |
