FRONT BUMPER COMPONENTS

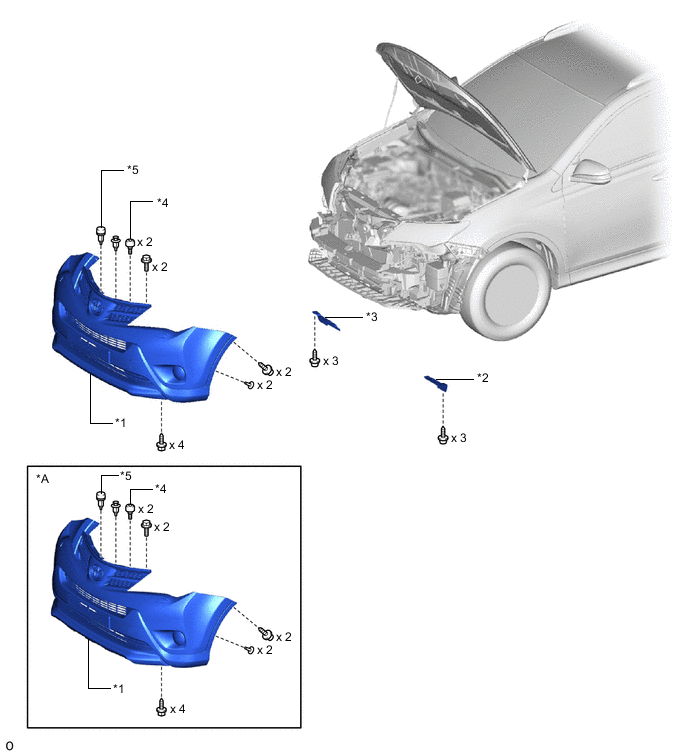

ILLUSTRATION
| *A | for Type B | - | - |
| *1 | FRONT BUMPER COVER | *2 | FRONT FENDER FRONT SPLASH SHIELD LH |
| *3 | FRONT FENDER FRONT SPLASH SHIELD RH | *4 | RADIATOR GRILLE PROTECTOR |
| *5 | CENTER HOOD CUSHION | - | - |

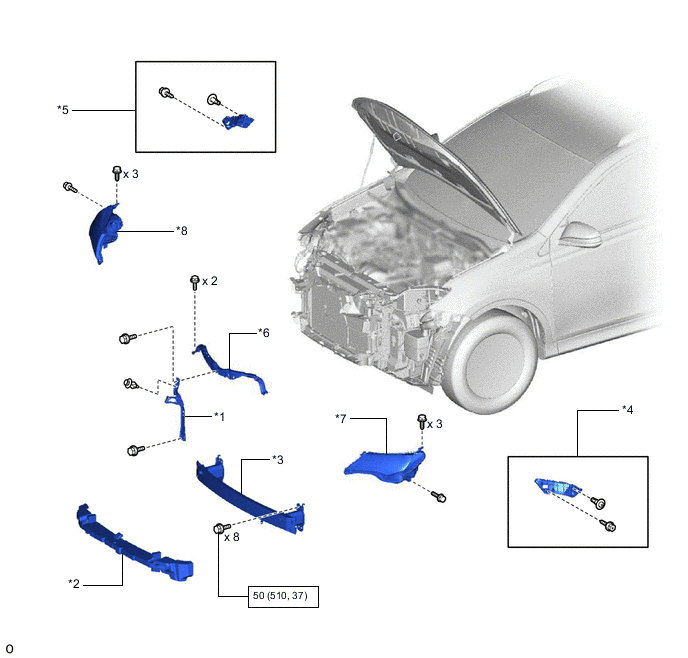

ILLUSTRATION
| *1 | FRONT BUMPER CENTER STAY SUB-ASSEMBLY | *2 | FRONT BUMPER NO. 2 ENERGY ABSORBER |
| *3 | FRONT BUMPER REINFORCEMENT | *4 | FRONT BUMPER SIDE RETAINER LH |
| *5 | FRONT BUMPER SIDE RETAINER RH | *6 | FRONT BUMPER UPPER REINFORCEMENT SUB-ASSEMBLY |
| *7 | HEADLIGHT ASSEMBLY LH | *8 | HEADLIGHT ASSEMBLY RH |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

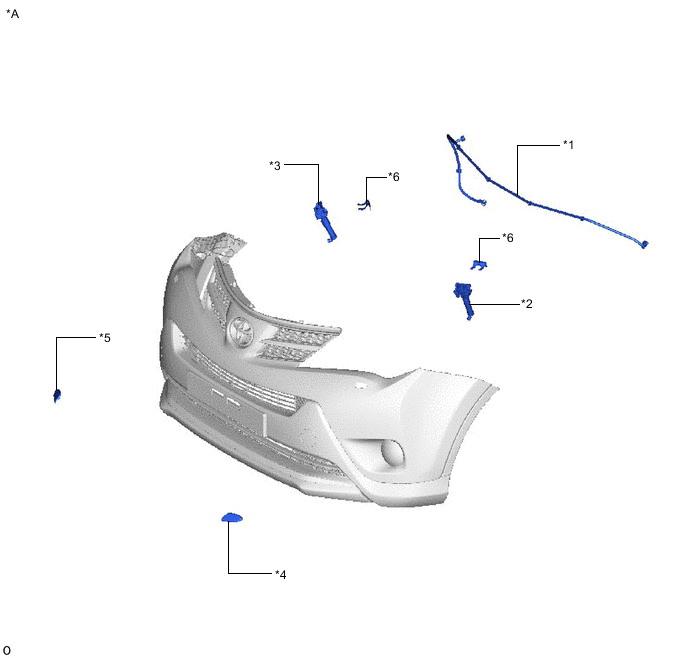

ILLUSTRATION
| *A | w/ Headlight Cleaner System | - | - |
| *1 | HEADLIGHT CLEANER HOSE | *2 | HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY LH |
| *3 | HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY RH | *4 | TYPE 1 HEADLIGHT WASHER NOZZLE SUB-ASSEMBLY LH |
| *5 | TYPE 1 HEADLIGHT WASHER NOZZLE SUB-ASSEMBLY RH | *6 | HEADLIGHT CLEANER CLAMP B |

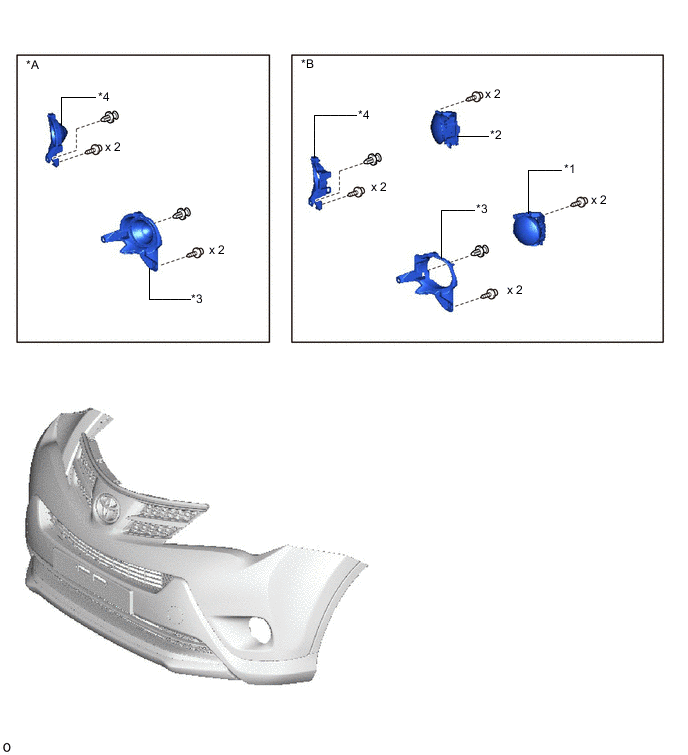

ILLUSTRATION
| *A | w/o Fog Light | *B | w/ Fog Light |
| *1 | FOG LIGHT ASSEMBLY LH | *2 | FOG LIGHT ASSEMBLY RH |
| *3 | FRONT BUMPER HOLE COVER LH | *4 | FRONT BUMPER HOLE COVER RH |

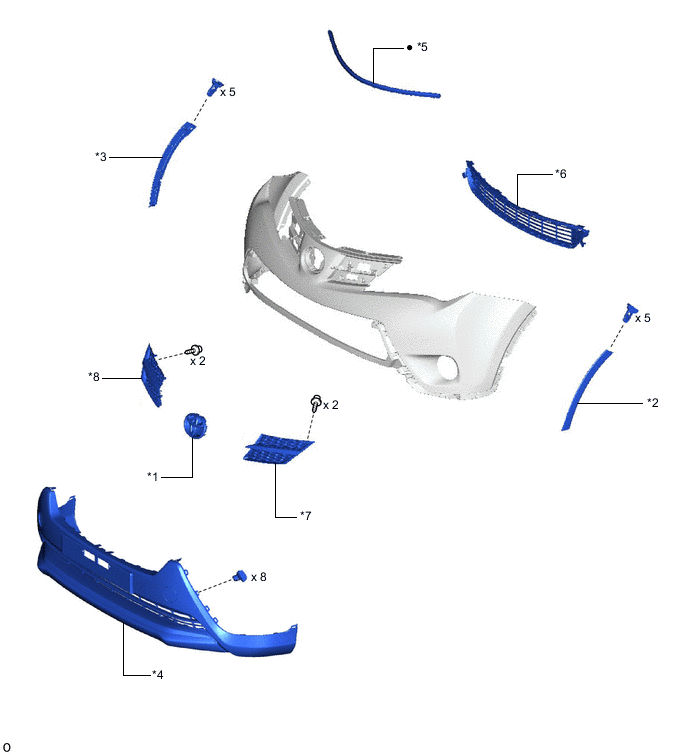

ILLUSTRATION
| *1 | FRONT BUMPER EMBLEM SUB-ASSEMBLY | *2 | FRONT BUMPER EXTENSION LH |
| *3 | FRONT BUMPER EXTENSION RH | *4 | FRONT BUMPER GUARD |
| *5 | HOOD TO FRONT END PANEL SEAL | *6 | LOWER NO. 1 RADIATOR GRILLE |
| *7 | RADIATOR GRILLE GARNISH SUB-ASSEMBLY LH | *8 | RADIATOR GRILLE GARNISH SUB-ASSEMBLY RH |
| ● | Non-reusable part | - | - |

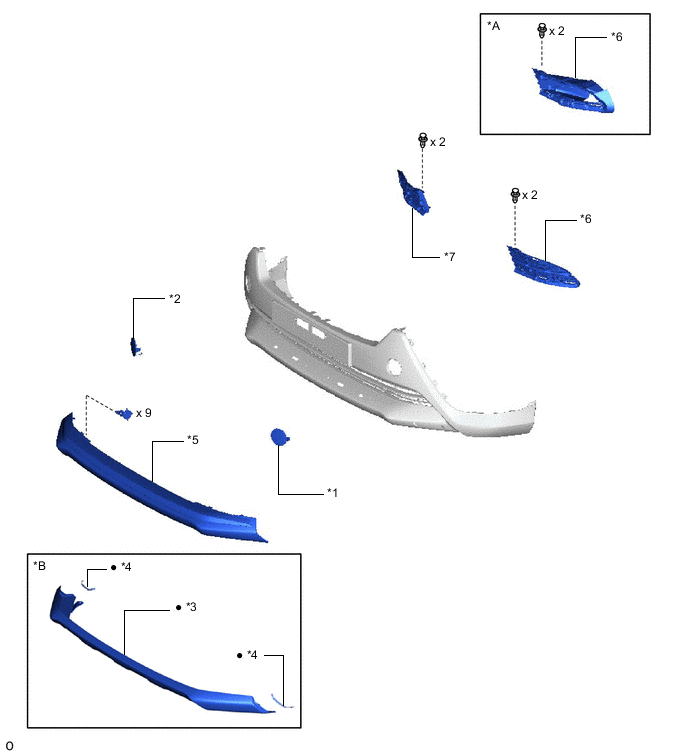

ILLUSTRATION
| *A | for Automatic Transaxle (U660F) | *B | for Type B |
| *1 | FRONT BUMPER ARM HOLE COVER LH | *2 | FRONT BUMPER ARM HOLE COVER RH |
| *3 | FRONT BUMPER MOULDING | *4 | FRONT BUMPER MOULDING PROTECTOR |
| *5 | FRONT BUMPER MOULDING SUB-ASSEMBLY | *6 | LOWER RADIATOR GRILLE LH |
| *7 | LOWER RADIATOR GRILLE RH | - | - |
| ● | Non-reusable part | - | - |
